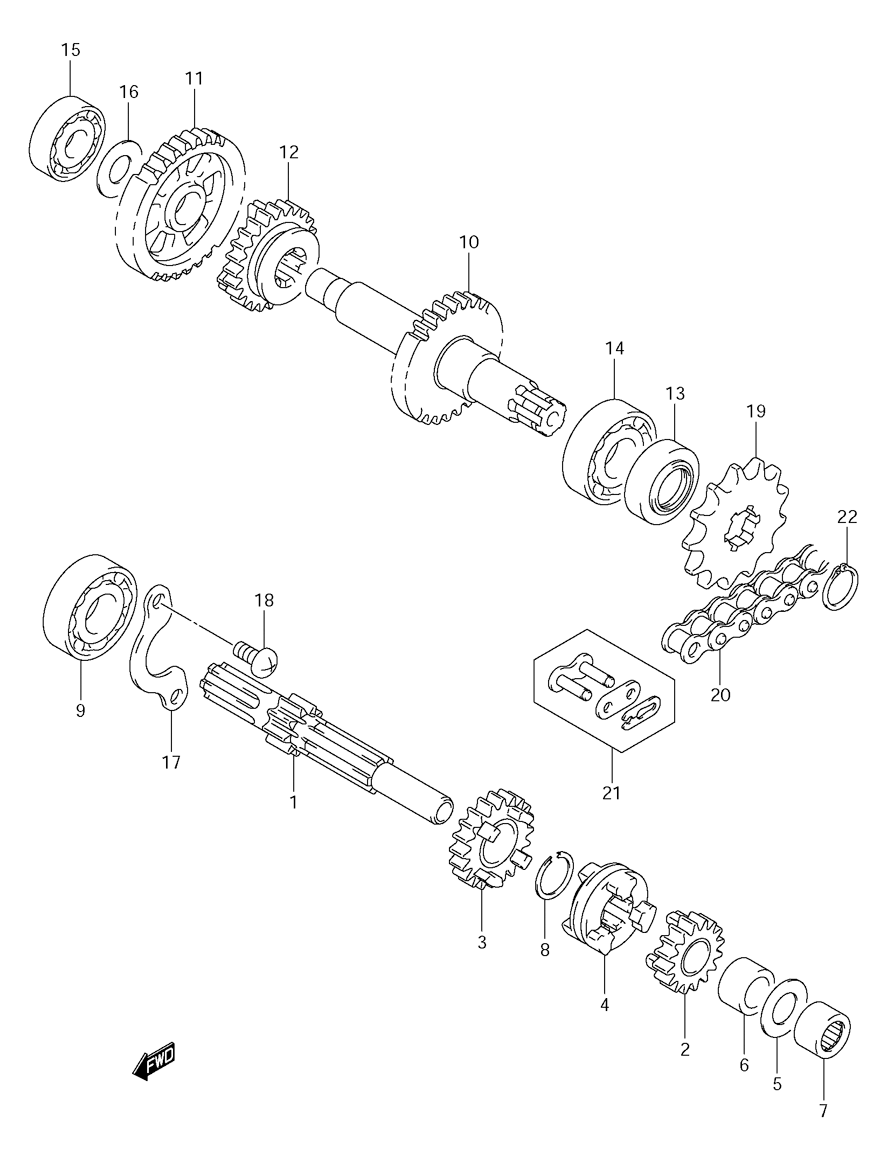

TRANSMISSION для Suzuki DR-Z70K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    24121-02A02 SHAFT, COUNTER (NO. OF TEETH: 10)
    SHAFT, COUNTER (NO. OF TEETH: 10)
  • 2
    24220-02A01 GEAR, 2ND DRIVE (NO. OF TEETH: 16)
    GEAR, 2ND DRIVE (NO. OF TEETH: 16)
  • 3
    24231-35404 GEAR, 3RD DRIVE (NO. OF TEETH: 20)
    GEAR, 3RD DRIVE (NO. OF TEETH: 20)
  • 4
    24421-14H00 WHEEL, SLIDING DOG
    WHEEL, SLIDING DOG
  • 5
    09160-13006 WASHER, 2ND DRIVE GEAR THRUST
    WASHER, 2ND DRIVE GEAR THRUST
  • 6
    09180-13008 SPACER, 2ND DRIVE GEAR
    SPACER, 2ND DRIVE GEAR
  • 7
    09263-13002 BEARING, COUNTER SHAFT, L
    BEARING, COUNTER SHAFT, L
  • 8
    09380-17007 CIRCLIP, 3RD DRIVE GEAR
    CIRCLIP, 3RD DRIVE GEAR
  • 9
    08110-62030 BEARING, COUNTER SHAFT, R
    BEARING, COUNTER SHAFT, R
  • 10
    24130-02A00 SHAFT, DRIVE (NO. OF TEETH: 29)
    SHAFT, DRIVE (NO. OF TEETH: 29)
  • 11
    24310-30A01 GEAR, 1ST DRIVEN (NO. OF TEETH: 34)
    GEAR, 1ST DRIVEN (NO. OF TEETH: 34)
  • 12
    24331-02A01 GEAR, 3RD DRIVEN (NO. OF TEETH: 24)
    GEAR, 3RD DRIVEN (NO. OF TEETH: 24)
  • 13
    09283-17025 SEAL, DRIVE SHAFT OIL
    SEAL, DRIVE SHAFT OIL
  • 14
    08110-62030 BEARING, DRIVE SHAFT, L
    BEARING, DRIVE SHAFT, L
  • 15
    08113-62017 BEARING, DRIVE SHAFT, R
    BEARING, DRIVE SHAFT, R
  • 16
    08211-12241 WASHER, 1ST DRIVEN GEAR
    WASHER, 1ST DRIVEN GEAR
  • 17
    24741-09401 RETAINER, CNTR SHAFT BRG
    RETAINER, CNTR SHAFT BRG
  • 18
    09125-06110 SCREW, CNTR SHAFT BRG RTNR
    SCREW, CNTR SHAFT BRG RTNR
  • 19
    27511-46000 SPROCKET, ENGINE (13T)
    SPROCKET, ENGINE (13T)
  • 20
    27600-20910-078 CHAIN ASSEMBLY, DRIVE (DID428)
    CHAIN ASSEMBLY, DRIVE (DID428)
  • 21
    27620-20910 JOINT SET, CHAIN (OPTIONAL)
    JOINT SET, CHAIN (OPTIONAL)
  • 22
    08331-31166 CIRCLIP, ENGINE SPROCKET
    CIRCLIP, ENGINE SPROCKET
