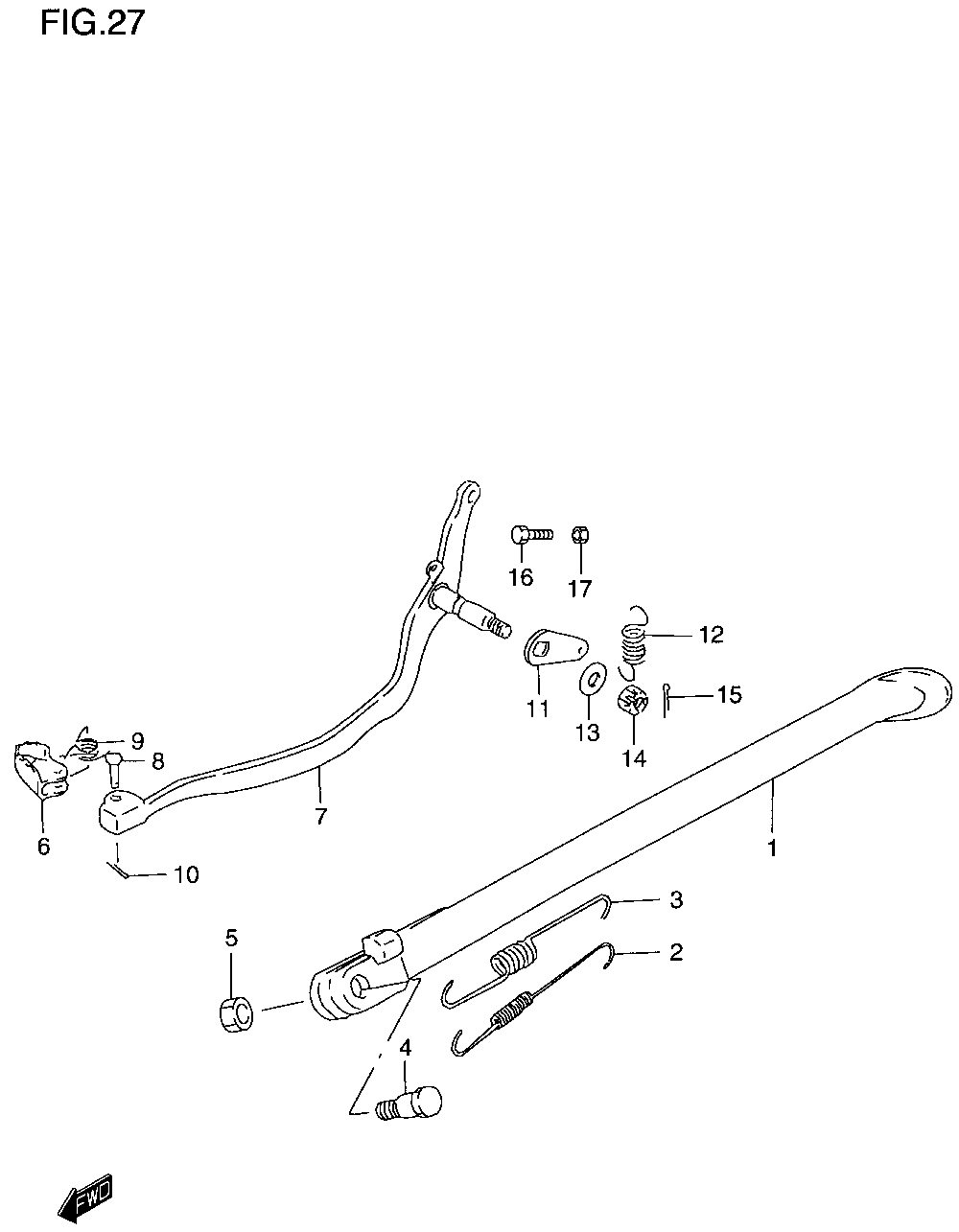

BRAKE PEDAL W/ STAND для Suzuki DR200SEY - 2000 года выпуска`
-
№АртикулНазвание
-
1-242310-44A33-019 STAND, PROP (BLACK)STAND, PROP (BLACK)
-
209443-12035 SPRING (INNER)SPRING (INNER)
-
309443-20003 SPRING (OUTER)SPRING (OUTER)
-
409111-10019 BOLTBOLT
-
509159-10097 NUTNUT
-
643110-14130 PEDAL, BRAKEPEDAL, BRAKE
-
743120-44A12 ARM, BRAKE PEDALARM, BRAKE PEDAL
-
809200-06038 PINPIN
-
909444-11005 SPRINGSPRING
-
1004111-20158 COTTER PINCOTTER PIN
-
1143128-38200 ARM, BRAKE RETURN SPRINGARM, BRAKE RETURN SPRING
-
1209443-14002 SPRINGSPRING
-
1308211-08202 THRUST WASHERTHRUST WASHER
-
1408314-40083 NUTNUT
-
1504111-20208 COTTER PINCOTTER PIN
-
1609100-06009 BOLT (6X23)BOLT (6X23)
-
1708310-00063 NUTNUT
