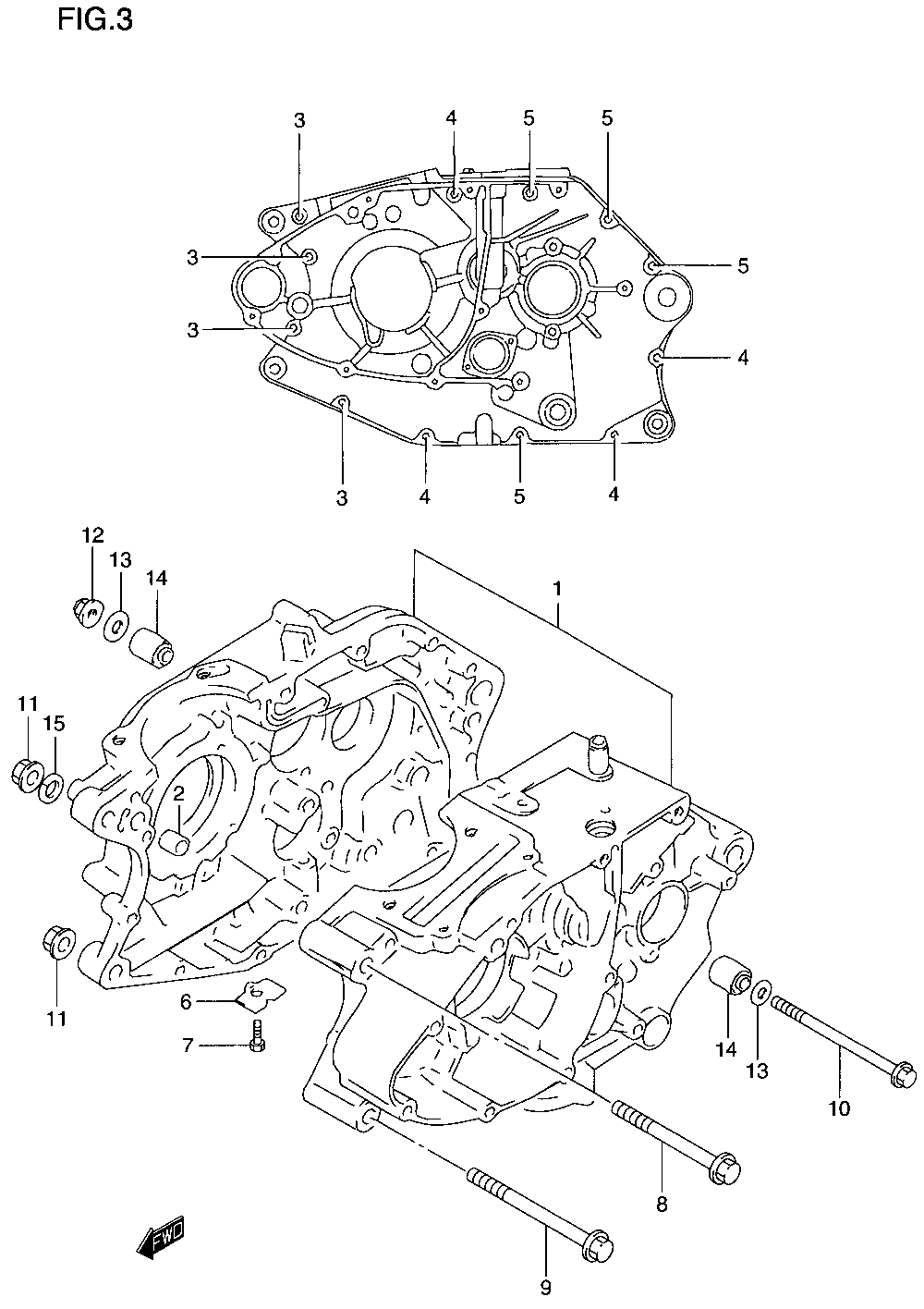

CRANKCASE для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
1-211300-42A21 CRANKCASE ASSYCRANKCASE ASSY
-
204211-13189 ...KNOCK PIN...KNOCK PIN
-
301547-06553 ...BOLT...BOLT
-
401547-06603 ...BOLT...BOLT
-
501547-06753 ...BOLT...BOLT
-
611319-05200 ...PLATE, OIL GALLERY PLUG...PLATE, OIL GALLERY PLUG
-
701500-06103 ...BOLT...BOLT
-
809103-10240 BOLT (10X80)BOLT (10X80)
-
909103-10061 BOLT (10X90)BOLT (10X90)
-
1009103-08138 BOLT (8X115)BOLT (8X115)
-
11-208319-31103 NUTNUT
-
1208319-31083 NUTNUT
-
1308212-08182 WASHERWASHER
-
1409319-08032 BUSHBUSH
-
1508321-01103 LOCK WASHERLOCK WASHER
