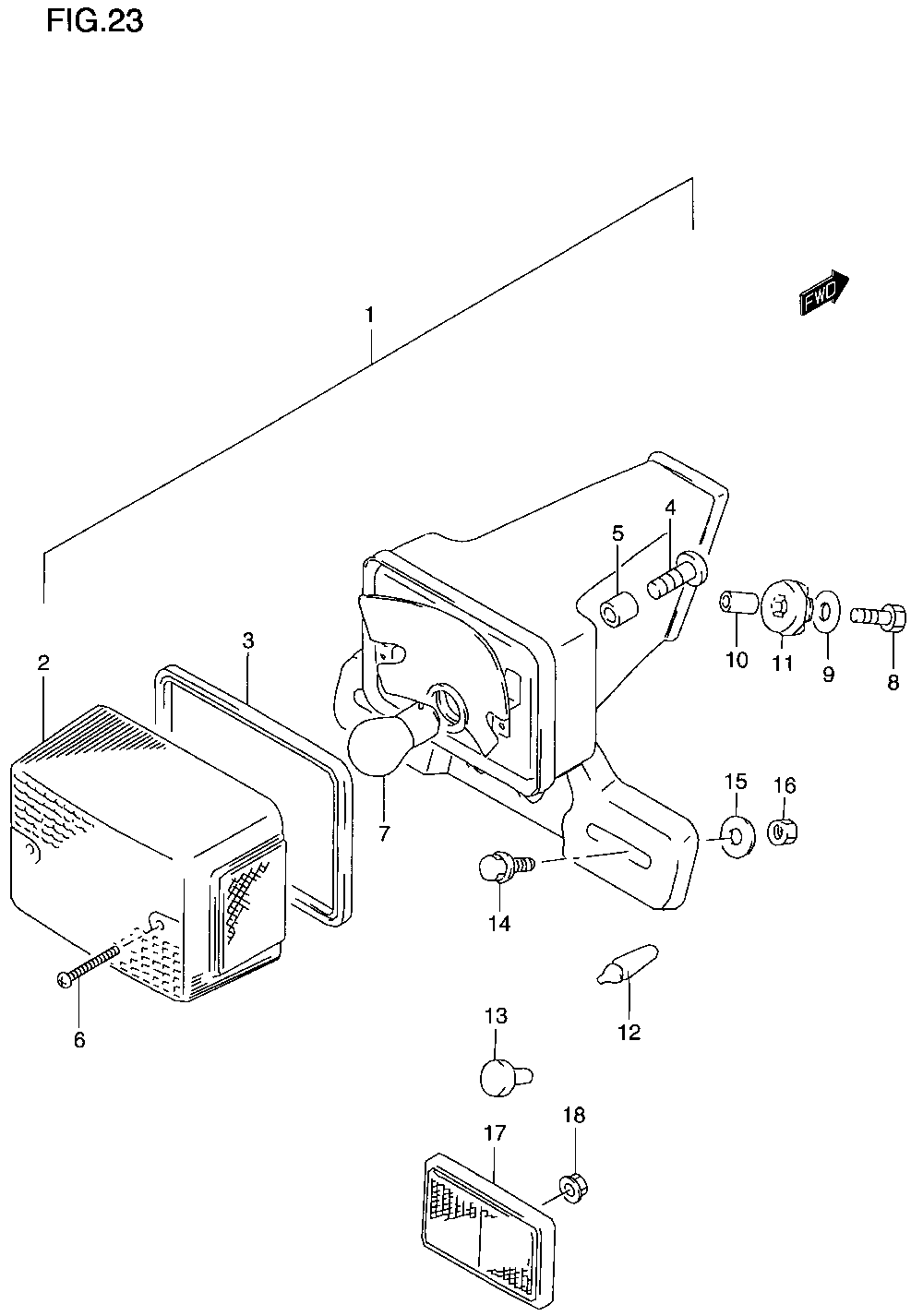

TAILLIGHT ASSY. для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
135710-42A30 LAMP ASSY, COMBINATION (REAR)LAMP ASSY, COMBINATION (REAR)
-
235712-42A30 ...LENS...LENS
-
335713-14D30 ...GASKET...GASKET
-
409125-06055 ...SCREW...SCREW
-
535766-14D30 ...SPACER...SPACER
-
609125-04501 ...SCREW, LENS...SCREW, LENS
-
709471-12083 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
801500-06203 BOLTBOLT
-
9-209160-06109 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
10-209180-06291 SPACER (6.5X10X13)SPACER (6.5X10X13)
-
1109320-09015 CUSHIONCUSHION
-
1209321-06030 CUSHION, PLATECUSHION, PLATE
-
1309321-06026 CUSHION, FENDERCUSHION, FENDER
-
1401500-06303 BOLTBOLT
-
15-209160-06109 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
1608310-00063 NUTNUT
-
1735970-38E00 REFLECTOR ASSY (REAR)REFLECTOR ASSY (REAR)
-
1808316-10053 NUTNUT
