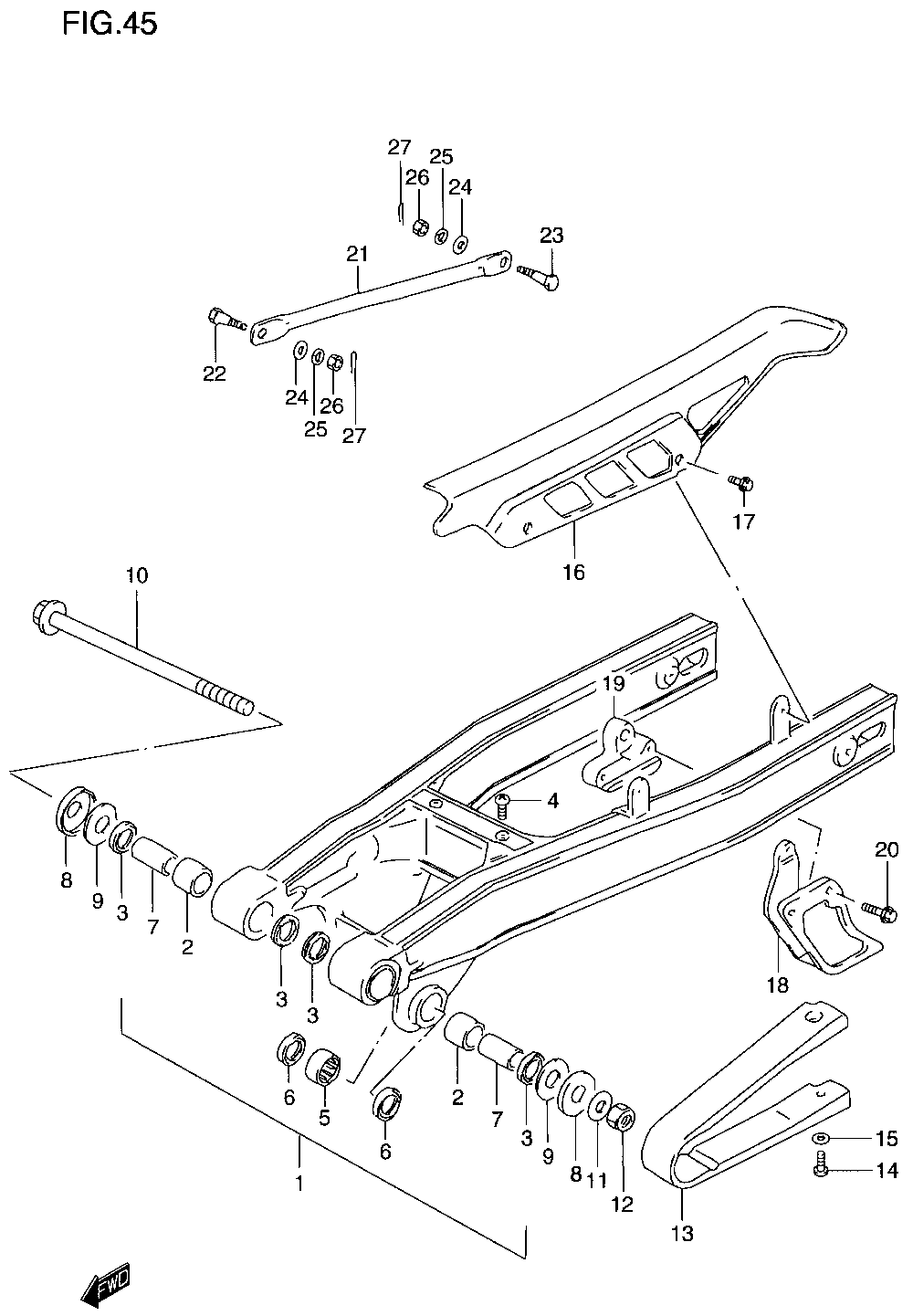

SUSPENSION - REAR ARM для Suzuki DR200SEY - 2000 года выпуска`
-
№АртикулНазвание
-
1-261100-42840 SWINGING ARM SET (REAR)SWINGING ARM SET (REAR)
-
261261-13700 ...BUSHING, PIVOT...BUSHING, PIVOT
-
309283-20031 ...OIL SEAL (20X27X5)...OIL SEAL (20X27X5)
-
402142-06163 ...SCREW...SCREW
-
509263-20053 ...BEARING (20X27X25)...BEARING (20X27X25)
-
662647-44A00 ...SEAL, DUST (20X27X4)...SEAL, DUST (20X27X4)
-
761251-42A00 SPACER, PIVOTSPACER, PIVOT
-
861262-40400 COVER, DUST SEALCOVER, DUST SEAL
-
908211-14322 THRUST WASHERTHRUST WASHER
-
1061211-26B01 SHAFT, PIVOTSHAFT, PIVOT
-
11-209160-14057 WASHER (14.5X24X2.3)WASHER (14.5X24X2.3)
-
1209159-14019 NUTNUT
-
1361273-42A01 BUFFER,CHAIN TOUCH DEFENSEBUFFER,CHAIN TOUCH DEFENSE
-
1402142-06203 SCREWSCREW
-
1509169-06037 WASHERWASHER
-
1661311-01A03 CASE, CHAINCASE, CHAIN
-
1709116-06096 BOLT (6X10)BOLT (6X10)
-
1861341-13A00 GUIDE, CHAINGUIDE, CHAIN
-
1961345-42A00 RUBBER, CHAIN GUIDERUBBER, CHAIN GUIDE
-
2001550-06203 BOLTBOLT
-
2164311-42A00-13L TORQUE LINK (REAR/SILVER)TORQUE LINK (REAR/SILVER)
-
2264321-42A00 BOLT, TORQUE LINK (FRONT)BOLT, TORQUE LINK (FRONT)
-
2309111-08013 BOLT (8X26.5)BOLT (8X26.5)
-
2408322-01083 WASHERWASHER
-
2509162-08008 WASHERWASHER
-
2609140-08008 NUTNUT
-
2704111-20208 COTTER PINCOTTER PIN
