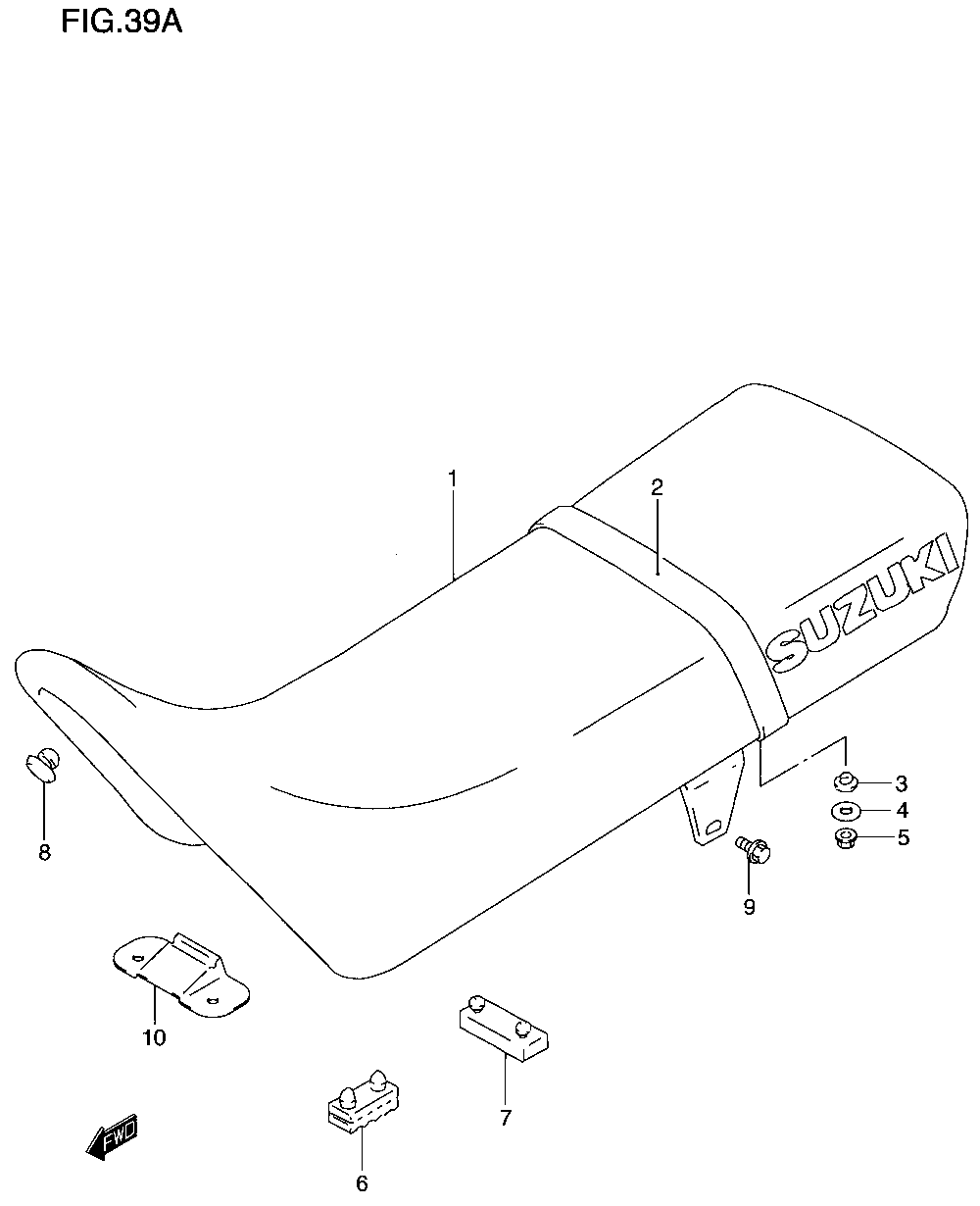

SEAT ASSY. для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
1-245100-42AC0-N9K SEAT SET (SEAT BLACK/BLUE)SEAT SET (SEAT BLACK/BLUE)
-
2-245180-42AA0-P21 ...BAND, SEAT (BLACK)...BAND, SEAT (BLACK)
-
309169-06071 ...WASHER...WASHER
-
408212-06201 ...THRUST WASHER...THRUST WASHER
-
508316-20063 ...NUT...NUT
-
645149-31300 ...CUSHION...CUSHION
-
745149-43500 ...CUSHION...CUSHION
-
809329-10001 ...CUSHION...CUSHION
-
901550-08123 BOLTBOLT
-
1045119-42A00 PLATE, SEAT HOOK (FRONT)PLATE, SEAT HOOK (FRONT)
