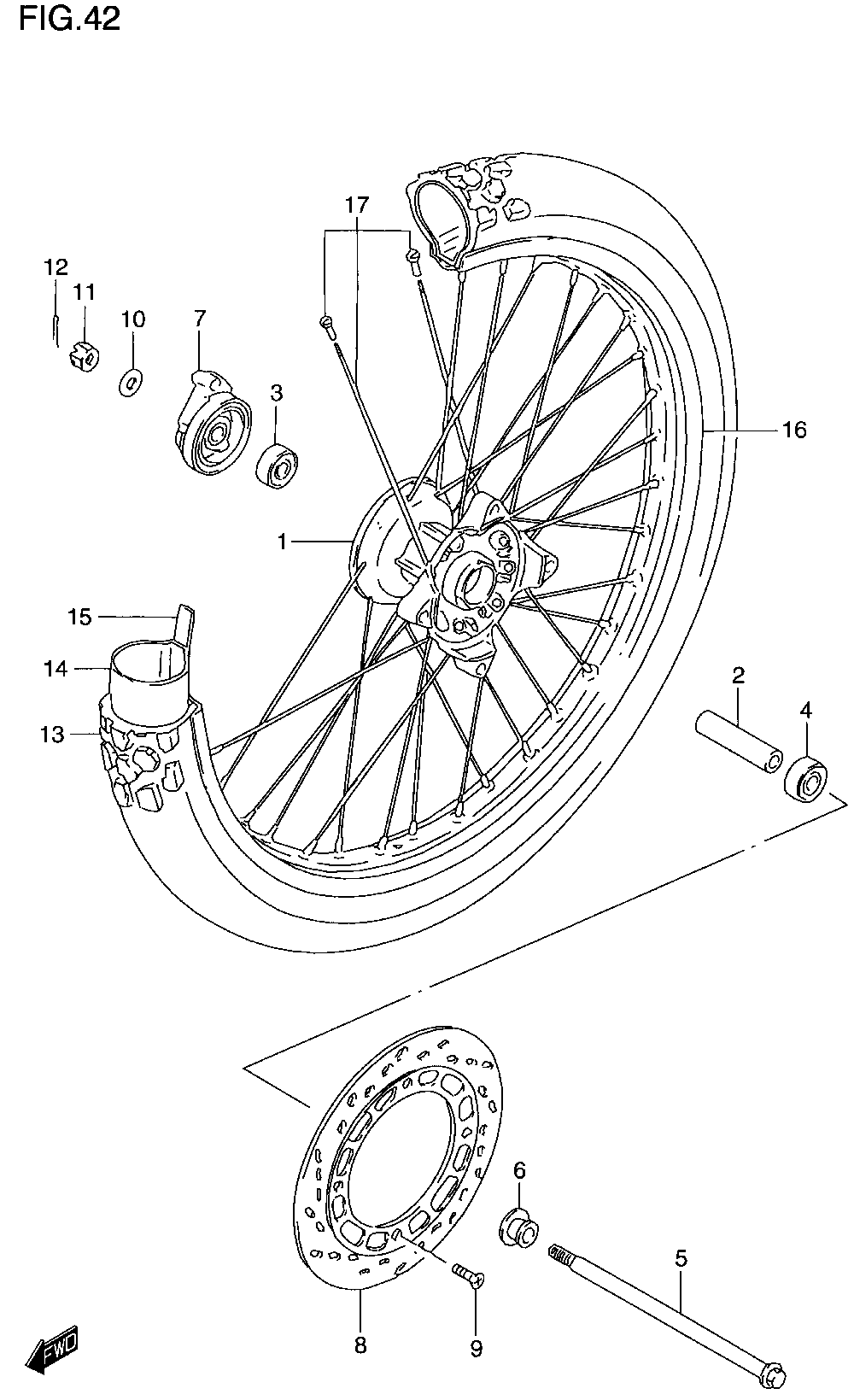

WHEEL - FRONT ASSY. для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
154111-44A10 HUB, WHEEL (FRONT/SILVER)HUB, WHEEL (FRONT/SILVER)
-
209180-12146 SPACER (12.5X19X60.50)SPACER (12.5X19X60.50)
-
308113-62017 BEARING (RIGHT)BEARING (RIGHT)
-
408133-62017 BEARING (LEFT)BEARING (LEFT)
-
554711-44A01 AXLE (FRONT)AXLE (FRONT)
-
654740-02B40 SPACER, AXLE (FRONT/LEFT)SPACER, AXLE (FRONT/LEFT)
-
754600-01A00 BOX ASSY, SPEEDOMETER GEARBOX ASSY, SPEEDOMETER GEAR
-
859221-13A01 DISC, BRAKE (FRONT)DISC, BRAKE (FRONT)
-
959421-03A10 BOLT, DISC (8X20)BOLT, DISC (8X20)
-
1008322-01123 WASHERWASHER
-
1109141-12004 NUTNUT
-
1204111-30308 PIN, COTTERPIN, COTTER
-
1355110-42AA0 TIRE (FRONT) (70/100-21 44P) (BRIDGESTONE)TIRE (FRONT) (70/100-21 44P) (BRIDGESTONE)
-
1455200-16510 TUBE ASSY, WHEEL (INNER)TUBE ASSY, WHEEL (INNER)
-
15-255261-32E00 PROTECTOR, WHEEL TUBE (INNER)PROTECTOR, WHEEL TUBE (INNER)
-
1655311-42AA0 RIM, WHEEL (FRONT) (21X1.60)RIM, WHEEL (FRONT) (21X1.60)
-
1755320-42A00 SPOKE SET, WHEEL (FRONT)SPOKE SET, WHEEL (FRONT)
