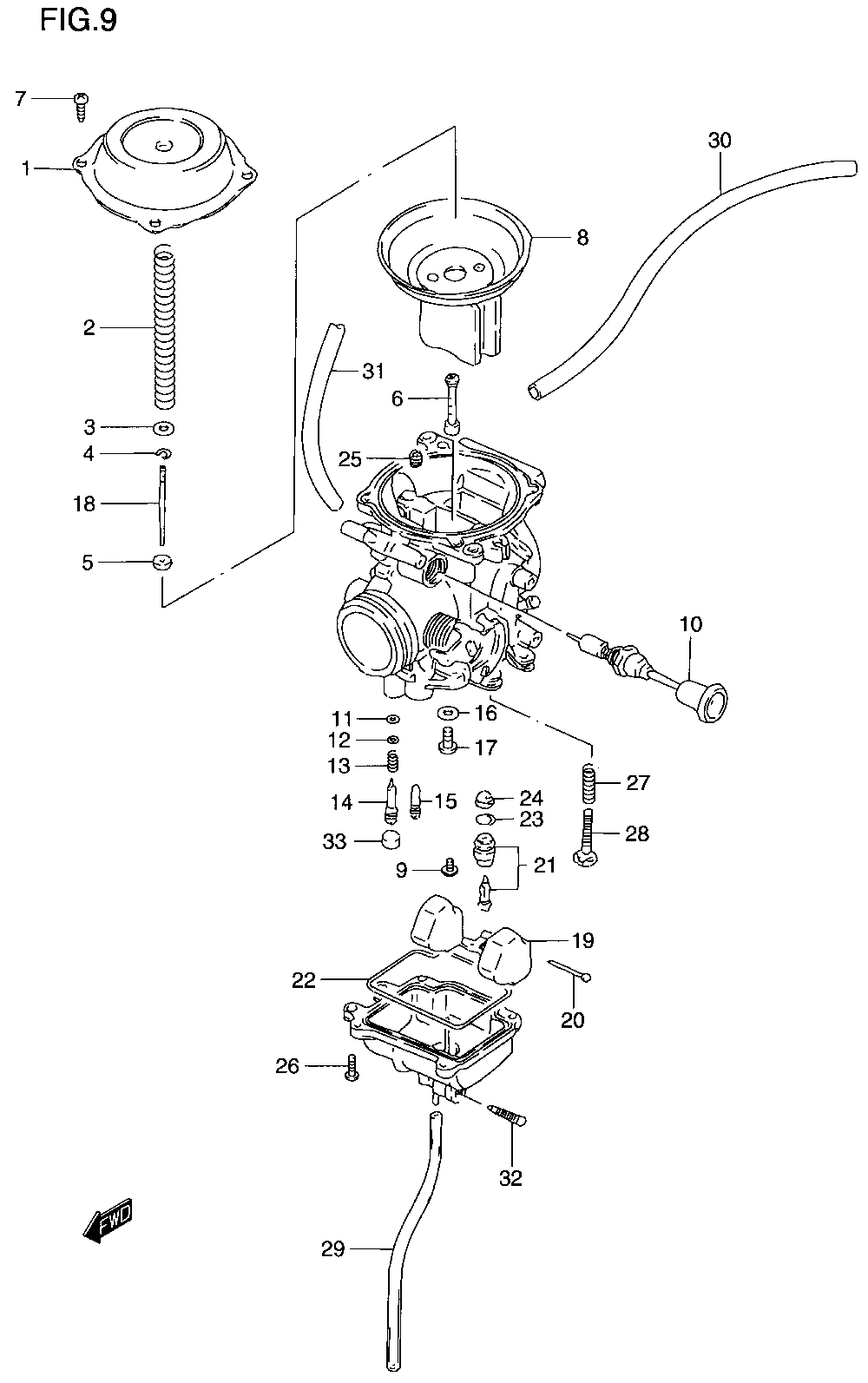

CARBURETOR для Suzuki DR200SEY - 2000 года выпуска

№

Артикул

Название
13200-42AC0 CARBURETOR ASSY (USA - EXCEPT CALIF)

CARBURETOR ASSY (USA - EXCEPT CALIF)
13200-42AC0 CARBURETOR ASSY (CANADA)

CARBURETOR ASSY (CANADA)
13200-42AE0 CARBURETOR ASSY (CALIF ONLY)

CARBURETOR ASSY (CALIF ONLY)
1

13502-42A00 ...COVER

...COVER
2

13417-42A00 ...SPRING

...SPRING
3

13382-42A00 ...RING

...RING
4

13394-10010 ...CLIP, NEEDLE

...CLIP, NEEDLE
5

13387-47010 ...RING

...RING
6-1

09494-00881 ...JET, NEEDLE (P-5M) (USA)

...JET, NEEDLE (P-5M) (USA)
7

02112-04083 ...SCREW

...SCREW
8

13500-42A00 ...DIAPHRAGM ASSY

...DIAPHRAGM ASSY
9

13602-43410 ...SCREW

...SCREW
10

13411-42A20 ...PLUNGER ASSY

...PLUNGER ASSY
11

13295-29900 ...O RING

...O RING
12

13291-29900 ...WASHER

...WASHER
13

13268-47070 ...SPRING

...SPRING
14-1

13279-47070 ...SCREW, PILOT (2 1/2) (USA)

...SCREW, PILOT (2 1/2) (USA)
15-1

09492-35008 ...JET, PILOT (35) (USA)

...JET, PILOT (35) (USA)
16-2

13382-03110 ...WASHER

...WASHER
17-1

09491-25010 ...JET, MAIN (125)

...JET, MAIN (125)
18-1

13383-42AC0 ...NEEDLE, JET (5D77-1)

...NEEDLE, JET (5D77-1)
19

13250-42A00 ...FLOAT

...FLOAT
20

13254-92311 ...PIN, FLOAT

...PIN, FLOAT
21

13370-44500 ...VALVE ASSY, NEEDLE

...VALVE ASSY, NEEDLE
22

13251-42A00 ...O RING, FLOAT CHAMBER

...O RING, FLOAT CHAMBER
23

13374-44080 ...O RING

...O RING
24

13376-84110 ...FILTER

...FILTER
25

09493-27001 ...JET, AIR (135)

...JET, AIR (135)
26

02112-04123 ...SCREW

...SCREW
27

13268-37420 ...SPRING

...SPRING
28-2

13267-25D00 ...ADJUSTER

...ADJUSTER
30

09352-50823-600 ...HOSE (5X8X600)

...HOSE (5X8X600)
31-2

09355-45855-600 ...HOSE (4.5X8.5X600)

...HOSE (4.5X8.5X600)
32

13247-13A00 ...SCREW, DRAIN

...SCREW, DRAIN
33

13281-05A00 ...PLUG (USA)

...PLUG (USA)
33

13281-05A00 ...PLUG (CANADA)

...PLUG (CANADA)
