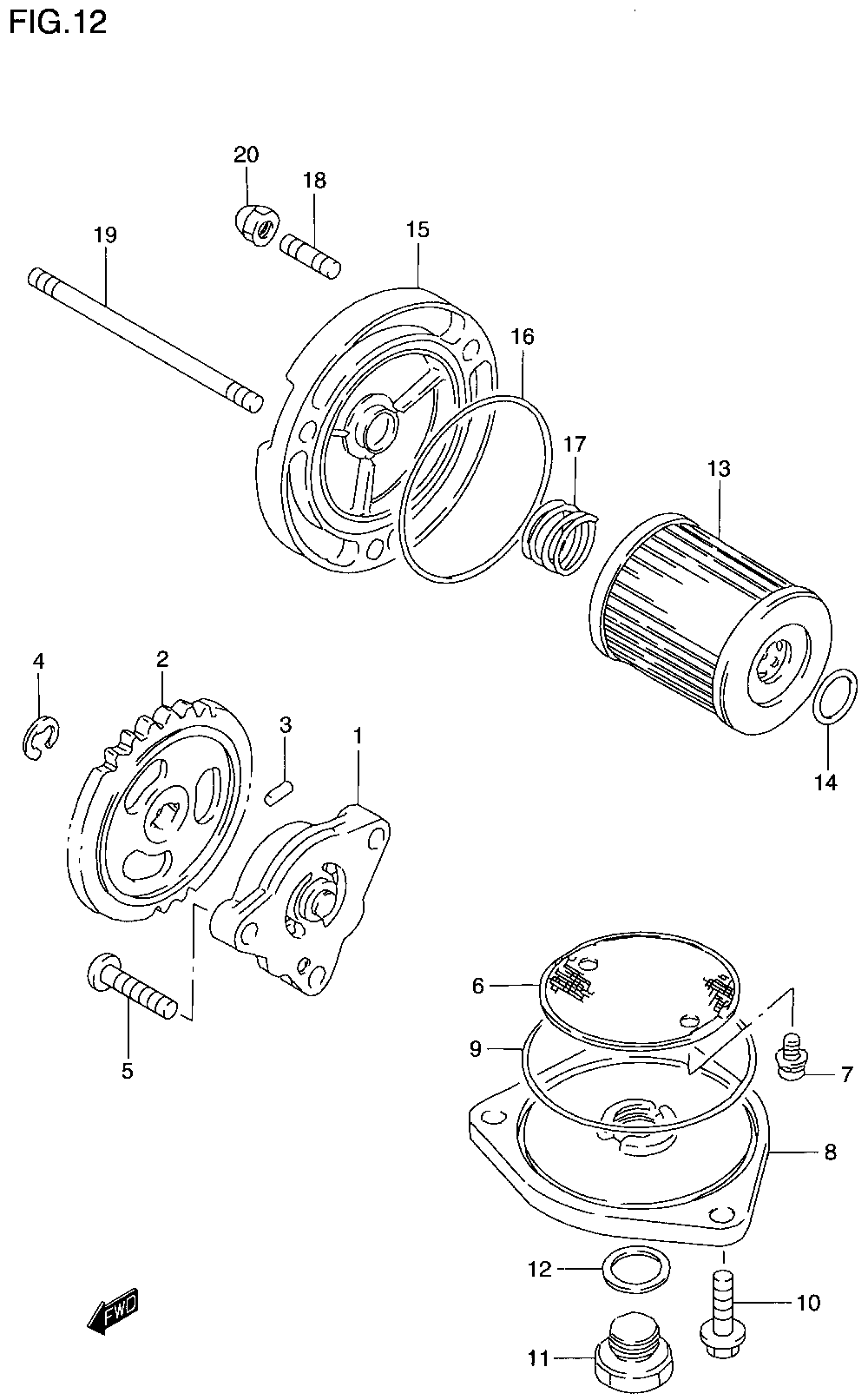

OIL PUMP для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
116400-42A01 PUMP ASSY, ENGINE OILPUMP ASSY, ENGINE OIL
-
216331-42A00 GEAR, OIL PUMP DRIVEN (NT:30)GEAR, OIL PUMP DRIVEN (NT:30)
-
309261-02008 ROLLERROLLER
-
408332-11063 E RINGE RING
-
502112-06253 SCREWSCREW
-
616520-05202 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
702112-75123 SCREWSCREW
-
816523-05200 CAP, OIL STRAINERCAP, OIL STRAINER
-
909280-60005 O RING (D:2.4,ID:60.5)O RING (D:2.4,ID:60.5)
-
1001547-06203 BOLTBOLT
-
1109247-14026 PLUGPLUG
-
1209168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
13-216510-25C00 FILTER, OILFILTER, OIL
-
1409280-13004 O RING (D:1.9,ID:13)O RING (D:1.9,ID:13)
-
1516512-42A20 CAP, OIL FILTERCAP, OIL FILTER
-
1609280-54001 O RING (D:2,4,ID:52.6)O RING (D:2,4,ID:52.6)
-
17-209440-18002 SPRINGSPRING
-
1801421-06128 STUD BOLTSTUD BOLT
-
1909108-06108 STUD BOLT (L:90)STUD BOLT (L:90)
-
2008313-10063 NUTNUT
