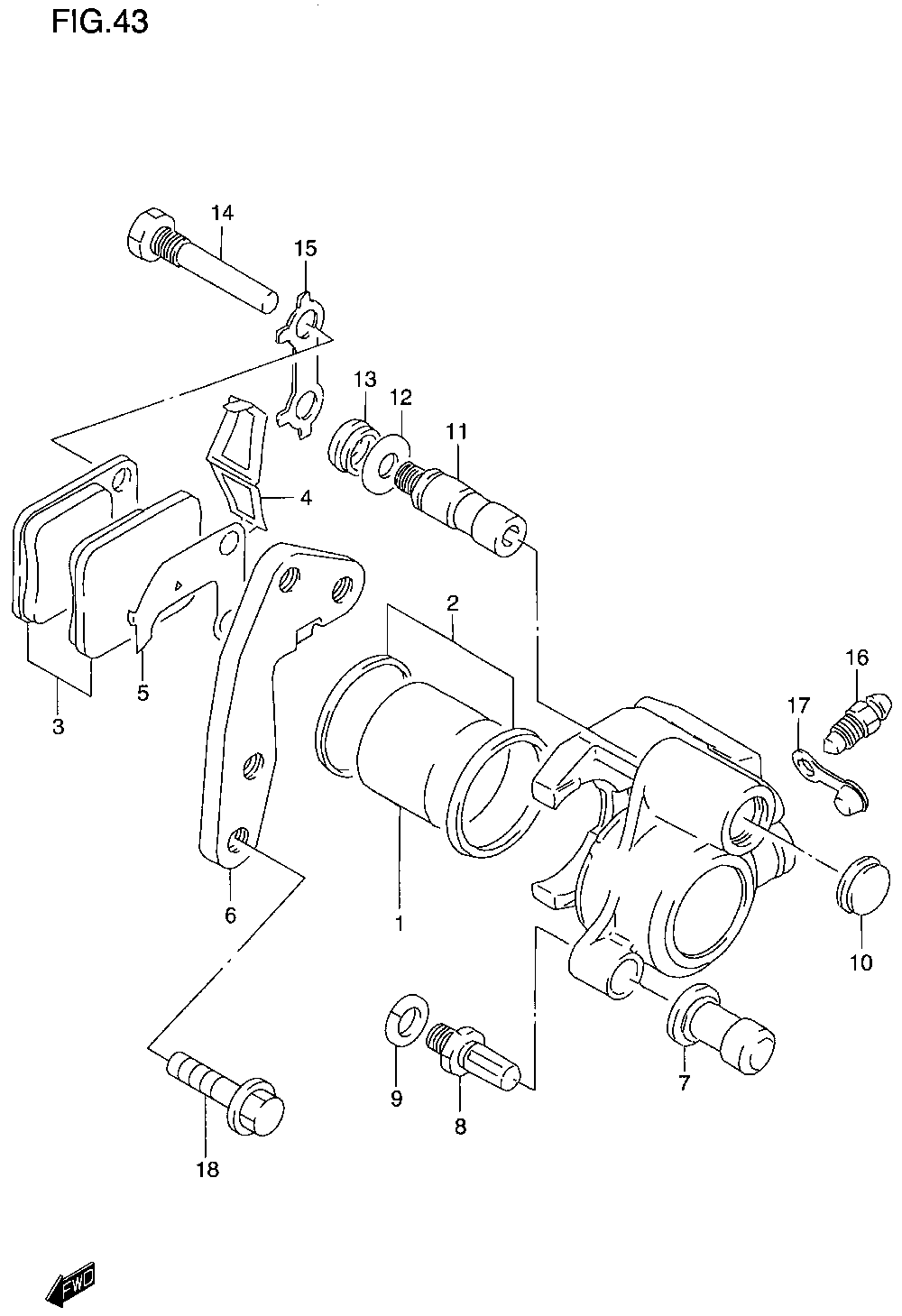

BRAKE - FRONT CALIPER ASSY. для Suzuki DR200SEY - 2000 года выпуска`
-
№АртикулНазвание
-
59300-42A10 CALIPER ASSY (FRONT/LEFT)CALIPER ASSY (FRONT/LEFT)
-
159300-13810 ...PISTON SET...PISTON SET
-
259300-13840 ......SEAL SET, PISTON......SEAL SET, PISTON
-
359300-42810 ...PAD SET...PAD SET
-
459315-13A00 ...SPRING...SPRING
-
559371-13A00 ...SHIM...SHIM
-
659351-13A01 ...BRACKET...BRACKET
-
759386-13A00 ...BOOT...BOOT
-
859382-13A00 ...BOLT...BOLT
-
959314-13A00 ...WASHER...WASHER
-
1059384-13A00 ...DUST SEAL...DUST SEAL
-
1159305-13A01 ...PIN, SLIDE...PIN, SLIDE
-
1259306-13A00 ...SPRING...SPRING
-
1359303-13A00 ...BOOT...BOOT
-
1459345-13A00 ...PIN...PIN
-
1559346-13A00 ...WASHER...WASHER
-
1659121-01A00 ...BLEEDER...BLEEDER
-
1759122-01A00 ...CAP, BLEEDER...CAP, BLEEDER
-
1809103-08269 BOLT (8X30)BOLT (8X30)
