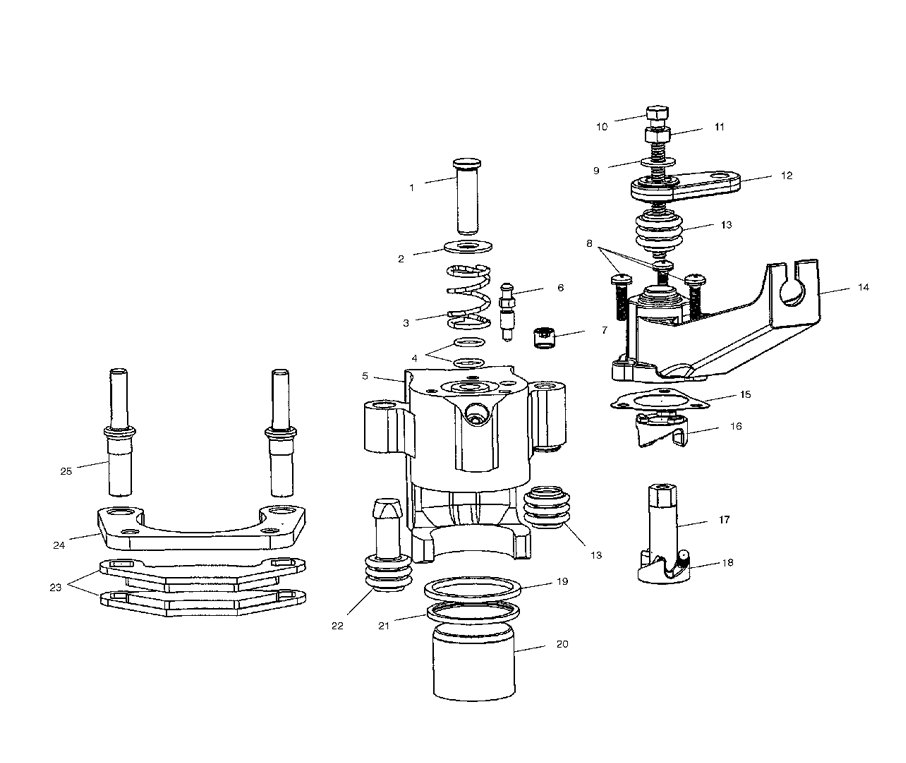

REAR BRAKE CALIPERS для Polaris RANGER 6X6 SERIES 10 [A10RF50AB] - 2003 года выпуска`
-
№АртикулНазвание
-
15133195 PLUNGER-BRAKEPLUNGER-BRAKE
-
27556205 WSHR-FLAT,PLUNGERWSHR-FLAT,PLUNGER
-
31910581 SPRING-COMPRESSIONSPRING-COMPRESSION
-
45412127 O-RING-1/16 C/SX3/8X1/2 ODO-RING-1/16 C/SX3/8X1/2 OD
-
51910508 ASM-CALIPER,BRAKE,1.5,LH,W/PBASM-CALIPER,BRAKE,1.5,LH,W/PB
-
51910509 ASM-CALIPER,BRAKE,1.5,RH,W/PBASM-CALIPER,BRAKE,1.5,RH,W/PB
-
67080352 SCREW,BLEEDERSCREW,BLEEDER
-
77515489 SCR-3/8-24X5/16 SOC SET-YSCR-3/8-24X5/16 SOC SET-Y
-
87517963 SCR-10-32X.62 PHILLIPS SIMSSCR-10-32X.62 PHILLIPS SIMS
-
97556206 WSHR-1/4'' FLAT,.060 THKWSHR-1/4'' FLAT,.060 THK
-
107517964 BOLT-1/4-20X2 1/2 LG HEX HEADBOLT-1/4-20X2 1/2 LG HEX HEAD
-
117542105 NUT HEXNUT HEX
-
125133196 LEVER-BRAKE ACTUATORLEVER-BRAKE ACTUATOR
-
135410494 BOOT-PIN SEALBOOT-PIN SEAL
-
145245793 BRKT-HOUSING, LEFT HANDBRKT-HOUSING, LEFT HAND
-
145245794 BRKT-HOUSING, RIGHT HANDBRKT-HOUSING, RIGHT HAND
-
155830214 GASKET-RAMPGASKET-RAMP
-
165133199 INSERT-BALL TRACK, LEFT HANDINSERT-BALL TRACK, LEFT HAND
-
165133201 INSERT-BALL TRACK, RIGHT HANDINSERT-BALL TRACK, RIGHT HAND
-
175133202 BRAKE-ACTUATOR, LEFT HANDBRAKE-ACTUATOR, LEFT HAND
-
175133203 BRAKE-ACTUATOR, RIGHT HANDBRAKE-ACTUATOR, RIGHT HAND
-
183514375 BALL-.187 STEELBALL-.187 STEEL
-
195412010 SEAL-CALIPER INNER,1.50''SEAL-CALIPER INNER,1.50''
-
205132829 PISTON-BRAKE,1.500PISTON-BRAKE,1.500
-
215412011 SEAL-CALIPER,OUTER,1.50''SEAL-CALIPER,OUTER,1.50''
-
225410495 BOOT-PIN BUSHINGBOOT-PIN BUSHING
-
231910514 KIT-BRAKE PAD,ASM,1.5KIT-BRAKE PAD,ASM,1.5
-
245133197 BRACKETBRACKET
-
255910023 PINPIN
