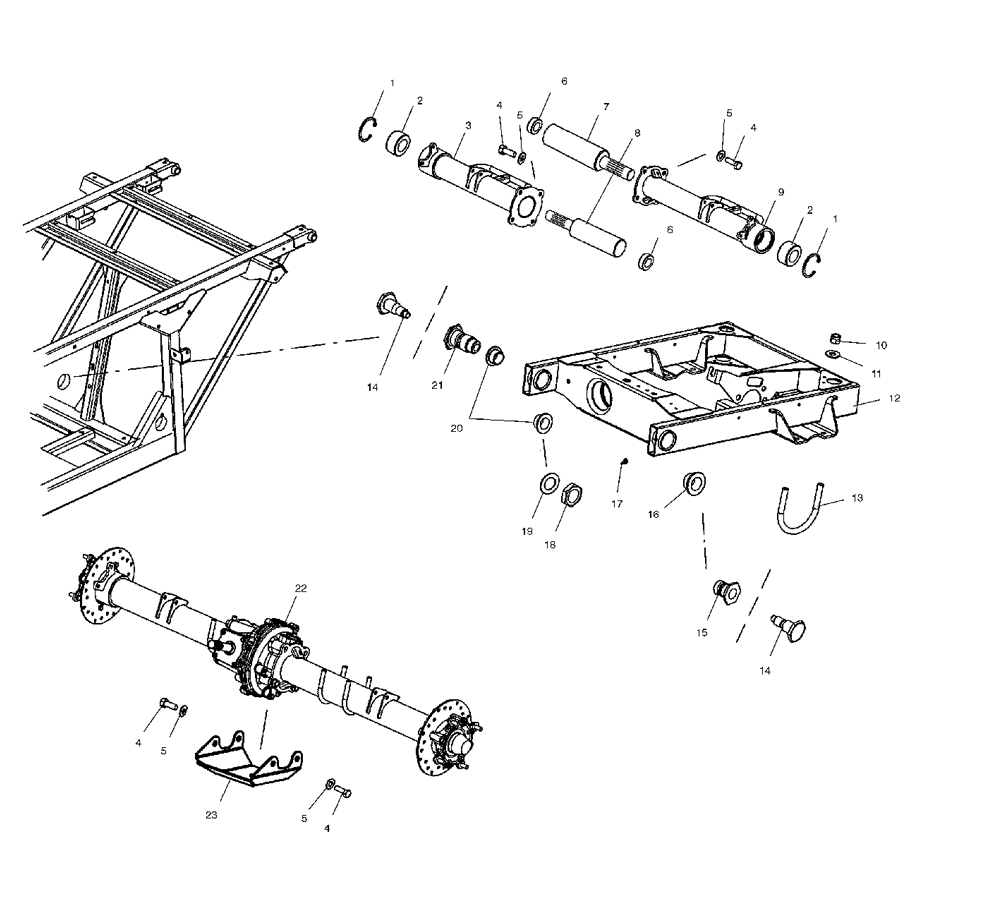

SUSPENSION - SWING ARM W/ REAR SHOCK ASSY для Polaris RANGER 6X6 SERIES 10 [A10RF50AB] - 2003 года выпуска`
-
№АртикулНазвание
-
17710440 RING,RETAININGRING,RETAINING
-
23585502 BEARINGBEARING
-
31013293-067 TUBE AXLE, RIGHT HAND, BLACKTUBE AXLE, RIGHT HAND, BLACK
-
47517585 BOLT-1/2-13X1 1/4 HXHD GR5-ZBOLT-1/2-13X1 1/4 HXHD GR5-Z
-
57553201 WASHER,SPLIT LOCKWASHER,SPLIT LOCK
-
65411553 SEAL,CVR,INNERSEAL,CVR,INNER
-
71380163 ASM-DRIVE SHAFT,AXLE,LHASM-DRIVE SHAFT,AXLE,LH
-
81380164 ASM-DRIVE SHAFT,AXLE,RHASM-DRIVE SHAFT,AXLE,RH
-
91013292-067 TUBE AXLE, LEFT HAND, BLACKTUBE AXLE, LEFT HAND, BLACK
-
107542525 NUT, NYLOKNUT, NYLOK
-
117555984 WASHER,FLATWASHER,FLAT
-
121013295-067 SWING ARM, BLACKSWING ARM, BLACK
-
135245127 U-BOLT,RNDBND,7/16X3.62X3.12X1U-BOLT,RNDBND,7/16X3.62X3.12X1
-
145131697 BOLT,SWINGARM PIVOTBOLT,SWINGARM PIVOT
-
155131695 BUSHING-PIVOT,LHBUSHING-PIVOT,LH
-
165434545 BUSHING-LEFT HAND,HYBRID, BLACKBUSHING-LEFT HAND,HYBRID, BLACK
-
177080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
187547082 NUT,HEX,JAMNUT,HEX,JAM
-
197556035 WASHER,FLATWASHER,FLAT
-
205433412 BUSHING-RH,HYBRID,BLKBUSHING-RH,HYBRID,BLK
-
215131696 BUSHING-PIVOT,RHBUSHING-PIVOT,RH
-
235245665-067 PLATE-DIFFERENTIAL,SKID, BLACKPLATE-DIFFERENTIAL,SKID, BLACK
