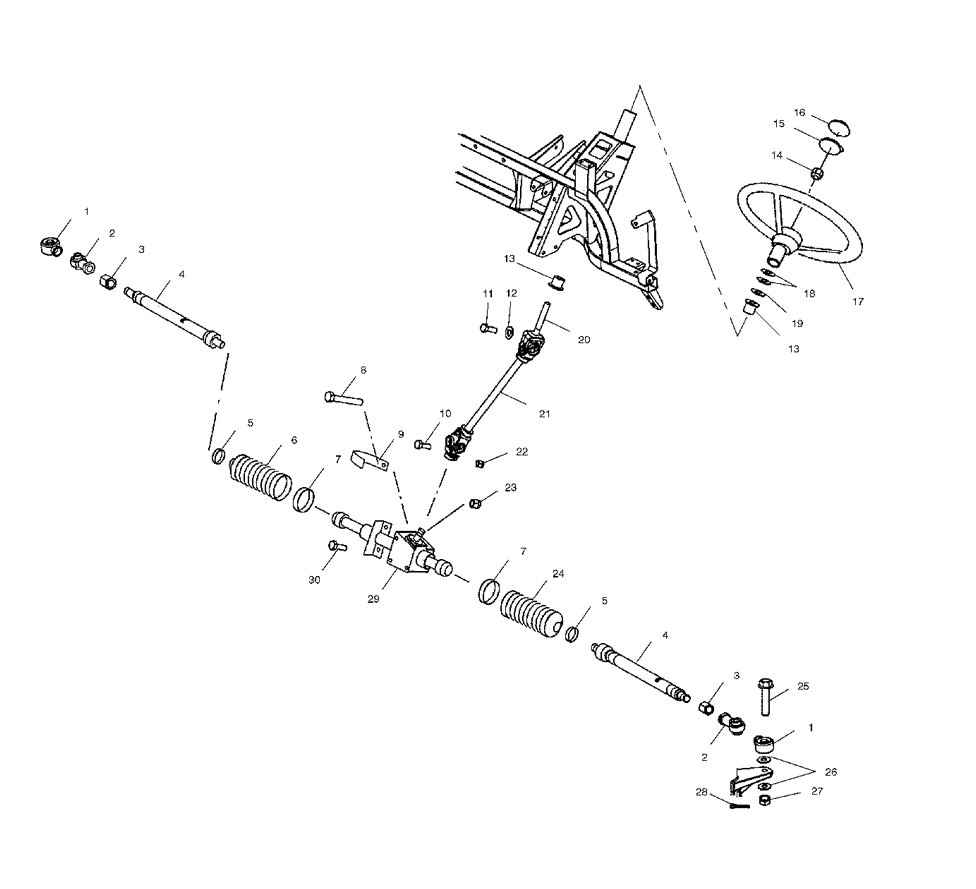

STEERING POST для Polaris RANGER 6X6 SERIES 10 [A10RF50AB] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5411920 BOOT-SEAL,ROD END,10MM
    BOOT-SEAL,ROD END,10MM
  • 2
    7061054 ROD-END,10MM,1/2-20LH,42 DEG
    ROD-END,10MM,1/2-20LH,42 DEG
  • 3
    7547028 NUT,JAM, LEFT HAND
    NUT,JAM, LEFT HAND
  • 4
    1821006 ASM-GEARCASE BOX,STEERING
    ASM-GEARCASE BOX,STEERING
  • 5
    7080978 CLAMP-BOOT,SMALL
    CLAMP-BOOT,SMALL
  • 6
    5412013 BOOT-PASSENGER,SIDE RACK
    BOOT-PASSENGER,SIDE RACK
  • 7
    7080979 CLAMP-BOOT,LARGE
    CLAMP-BOOT,LARGE
  • 8
    7515382 BOLT
    BOLT
  • 9
    7080884 CLIP,J
    CLIP,J
  • 10
    7515434 SCREW
    SCREW
  • 11
    7517924 BOLT-CAP M8X1.25
    BOLT-CAP M8X1.25
  • 12
    7556186 SPRING-WASHER
    SPRING-WASHER
  • 13
    5434106 BUSHING-STEERING SHAFT
    BUSHING-STEERING SHAFT
  • 14
    7547188 NUT-M16X2-6G
    NUT-M16X2-6G
  • 15
    5434169 CAP-STEERING WHEEL
    CAP-STEERING WHEEL
  • 16
    7078465 LOGO-POLARIS STAR
    LOGO-POLARIS STAR
  • 17
    1821065 WHEEL-STEERING,15"
    WHEEL-STEERING,15"
  • 18
    7556063 WASHER,WAVE
    WASHER,WAVE
  • 19
    7556301 BUSHING
    BUSHING
  • 20
    1821018 SHAFT-STEERING,UPPER
    SHAFT-STEERING,UPPER
  • 21
    1821019 SHAFT-STEERING,LOWER W/JOINTS
    SHAFT-STEERING,LOWER W/JOINTS
  • 22
    7542439 NUT,NYLOK
    NUT,NYLOK
  • 23
    7542324 NUT,NYLOK
    NUT,NYLOK
  • 24
    5412012 BOOT-DRIVER SIDE,RACK
    BOOT-DRIVER SIDE,RACK
  • 25
    7517909 BOLT-M10X1.25X65,HX WASH HD
    BOLT-M10X1.25X65,HX WASH HD
  • 26
    7556099 WASHER
    WASHER
  • 27
    7547177 NUT-M10X1.25-HX-LOCK-Y
    NUT-M10X1.25-HX-LOCK-Y
  • 28
    7661203 PIN,COTTER
    PIN,COTTER
  • 29
    1820921 ASM-GEARCASE BOX,STEERING
    ASM-GEARCASE BOX,STEERING
  • 30
    7512371 BOLT,5/16-18X3/4
    BOLT,5/16-18X3/4
