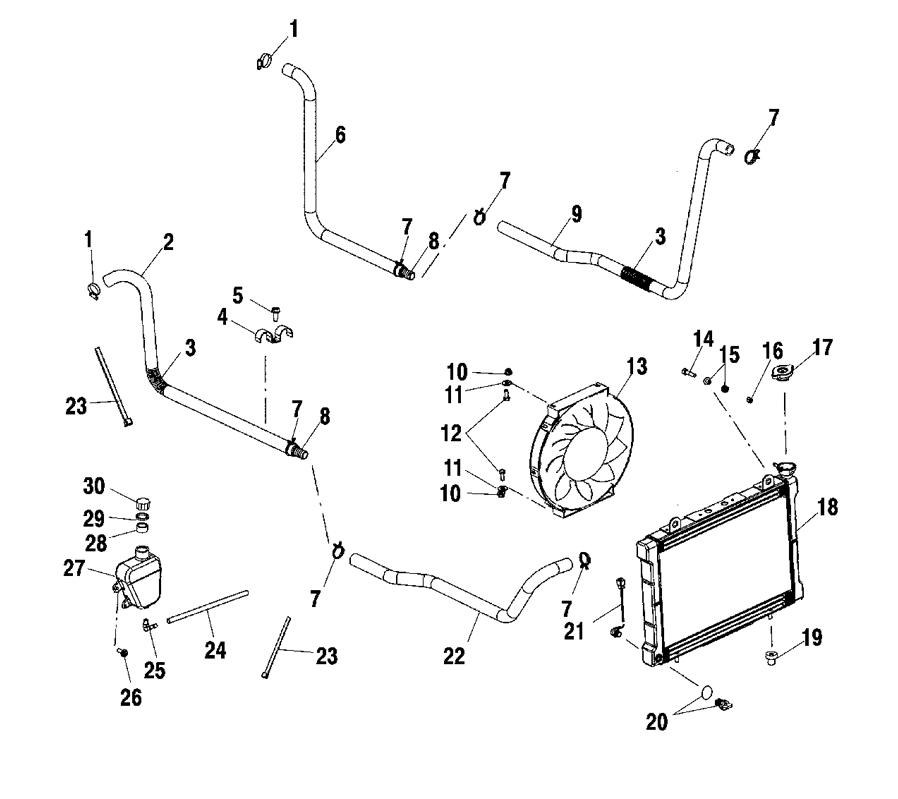

COOLING SYSTEM для Polaris RANGER 6X6 SERIES 10 [A10RF50AB] - 2003 года выпуска
-
№АртикулНазвание
-
17080614 CLAMP,HOSECLAMP,HOSE
-
25411980 HOSE-3/4'' ID ENGINE INLETHOSE-3/4'' ID ENGINE INLET
-
35521324 TUBING,CONVOLUTED(1''X6'')TUBING,CONVOLUTED(1''X6'')
-
47080898 CLAMP-DOUBLE HOSE 1''CLAMP-DOUBLE HOSE 1''
-
57517386 SCREWSCREW
-
65411978 HOSE-3/4'' ID ENGINE OUTLETHOSE-3/4'' ID ENGINE OUTLET
-
77080826 CLAMP-ROTO CLIPCLAMP-ROTO CLIP
-
87052092 CONNECTOR,3/4''SPLICE,BARBEDCONNECTOR,3/4''SPLICE,BARBED
-
95411977 HOSE-3/4'' ID RADIATOR INLETHOSE-3/4'' ID RADIATOR INLET
-
107547174 NUT-6MMX1-NYLOK/Z-FLGNUT-6MMX1-NYLOK/Z-FLG
-
117556196 WASHER-FL,6.4X17X3.0WASHER-FL,6.4X17X3.0
-
127517904 BOLT-M6X1.00X14 HEX FLG HDBOLT-M6X1.00X14 HEX FLG HD
-
132410227 ASM-FAN RADIATORASM-FAN RADIATOR
-
147512163 BOLTBOLT
-
155411975 GROMMET/INSERT-ASMGROMMET/INSERT-ASM
-
167542153 NUT,NYLOK,FLANGEDNUT,NYLOK,FLANGED
-
171240093 CAP-PRESSURE,13 LBS.CAP-PRESSURE,13 LBS.
-
181240096 RADIATOR-FLAT,15 FPIRADIATOR-FLAT,15 FPI
-
195410584 BUSHING-MOUNT,LOWER RADIATORBUSHING-MOUNT,LOWER RADIATOR
-
207052296 VALVE-PLASTIC DRAINVALVE-PLASTIC DRAIN
-
214010161 SENSOR-THERMAL/HARNESSSENSOR-THERMAL/HARNESS
-
225411979 HOSE-3/4'' ID RADIATOR OUTLETHOSE-3/4'' ID RADIATOR OUTLET
-
237080761 CABLE TIE,14''CABLE TIE,14''
-
248450003-55 FUEL LINE-55 CENTIMETERSFUEL LINE-55 CENTIMETERS
-
257052065 FITTING,90 DEGREEFITTING,90 DEGREE
-
267512084 SCREWSCREW
-
275431673 TANK-SURGETANK-SURGE
-
285433774 CAP,PLUG9X(GRN),FLEX TEMPCAP,PLUG9X(GRN),FLEX TEMP
-
295810279 GASKETGASKET
-
305430743 CAP, OVERFLOWCAP, OVERFLOW
