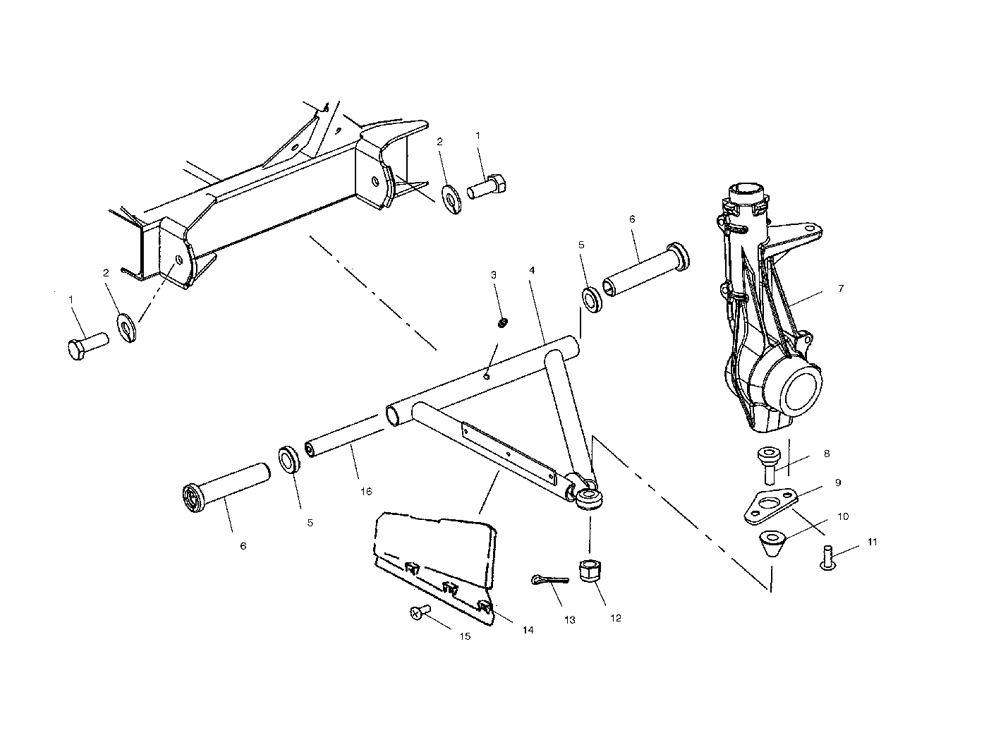

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris RANGER 6X6 SERIES 10 [A10RF50AB] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7512589 BOLT
    BOLT
  • 2
    7553101 WASHER,SPRING LOCK
    WASHER,SPRING LOCK
  • 3
    7080433 FITTING,LUBRICATION,THREADED
    FITTING,LUBRICATION,THREADED
  • 4
    1541456-067 A-FRAME, LEFT HAND, BLACK
    A-FRAME, LEFT HAND, BLACK
  • 4
    1541457-067 A-FRAME, RIGHT HAND, BLACK
    A-FRAME, RIGHT HAND, BLACK
  • 5
    5132532 BUSHING-.970 X 1.38 X .250
    BUSHING-.970 X 1.38 X .250
  • 6
    5433793 BUSHING-A-ARM,.760X.952,BLK
    BUSHING-A-ARM,.760X.952,BLK
  • 8
    7080927 BALL-JOINT,52 DEG
    BALL-JOINT,52 DEG
  • 9
    5211121 BRKT, BALL JOINT
    BRKT, BALL JOINT
  • 10
    5410548 BOOT, RUBBER
    BOOT, RUBBER
  • 11
    7512284 BOLT, SOCKET
    BOLT, SOCKET
  • 12
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 13
    7661203 PIN,COTTER
    PIN,COTTER
  • 14
    5433927-070 SHIELD-CV,FRONT,BASIC,LH,BLK
    SHIELD-CV,FRONT,BASIC,LH,BLK
  • 14
    5433928-070 SHIELD-CV,FRONT,BASIC,RH,BLK
    SHIELD-CV,FRONT,BASIC,RH,BLK
  • 15
    7512084 SCREW
    SCREW
  • 16
    5132533 SHAFT-A-ARM
    SHAFT-A-ARM
