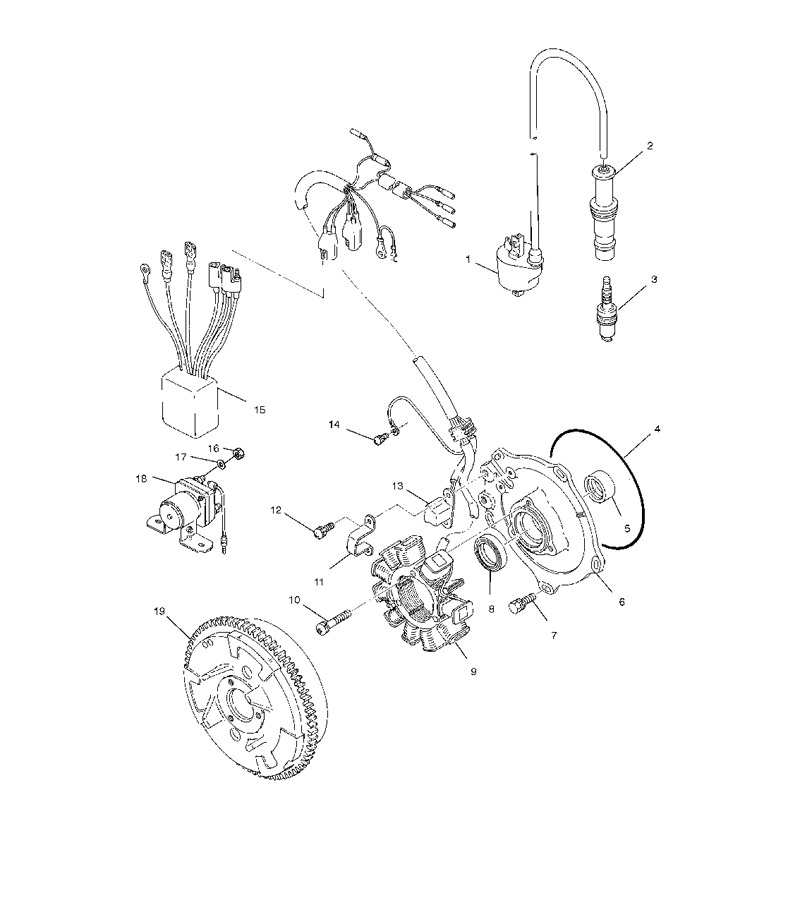

MAGNETO для Polaris RANGER 6X6 SERIES 10 [A10RF50AB] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3085227 COIL,IGNITION (INC 1,2)
    COIL,IGNITION (INC 1,2)
  • 1
    3085228 COIL,IGNITION *
    COIL,IGNITION *
  • 2
    3084980 SPARK PLUG CAP
    SPARK PLUG CAP
  • 3
    3070175 SPARKPLUG, BKR5E(4)
    SPARKPLUG, BKR5E(4)
  • 4
    3084978 O-RING
    O-RING
  • 5
    3084972 BEARING, METAL
    BEARING, METAL
  • 6
    3086980 ASM-PLATE (INC 5,6,8-14)
    ASM-PLATE (INC 5,6,8-14)
  • 6
    3086981 PLATE
    PLATE
  • 7
    3081657 BOLTANDWASHER ASM.
    BOLTANDWASHER ASM.
  • 8
    3084973 SEAL, OIL
    SEAL, OIL
  • 9
    3086984 STATOR (INC 13)
    STATOR (INC 13)
  • 10
    3086985 ASM., SCREW AND WASHER
    ASM., SCREW AND WASHER
  • 11
    3085554 BAND, PULSE
    BAND, PULSE
  • 12
    3084976 SCREWANDWASHER ASM.
    SCREWANDWASHER ASM.
  • 13
    3085360 COIL,PULSER
    COIL,PULSER
  • 14
    3081256 SCREWANDWASHER ASM
    SCREWANDWASHER ASM
  • 15
    3086982 CDI-SYSTEM
    CDI-SYSTEM
  • 16
    3083073 NUT
    NUT
  • 17
    3080077 WASHER SPRING
    WASHER SPRING
  • 18
    3085521 SWITCH-MAGNETIC
    SWITCH-MAGNETIC
  • 19
    3086983 FLYWHEEL-W/RING GEAR
    FLYWHEEL-W/RING GEAR
