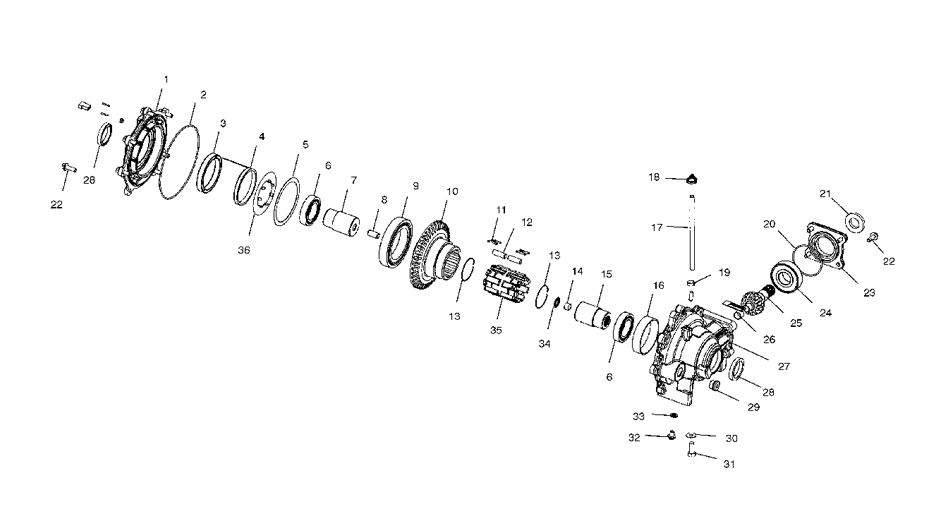

DIFFERENTIAL - FRONT для Polaris RANGER 6X6 SERIES 10 [A10RF50AB] - 2003 года выпуска

№

Артикул

Название
-

1341344 ASM-GEARCASE,FRONT,BEARINGLESS (INCL. 1-16,20-29,32-36)

ASM-GEARCASE,FRONT,BEARINGLESS (INCL. 1-16,20-29,32-36)
-

3233950 ASM-GEARCASE (INC 16,26,27)

ASM-GEARCASE (INC 16,26,27)
-

3233951 ASM-DRAIN PLUG (INC 32,33)

ASM-DRAIN PLUG (INC 32,33)
-

3234093 COVER-PLATE ASM (INC 7,8,14,15,34)

COVER-PLATE ASM (INC 7,8,14,15,34)
-

3233953 ASM-RACE/OUTPUT HUB (INC 9-13,35)

ASM-RACE/OUTPUT HUB (INC 9-13,35)
-

3233954 ASM-CLUTCH (INC 9-13,35)

ASM-CLUTCH (INC 9-13,35)
-

3233956 KIT-SEAL,GEARCASE-FRONT (INC 2,20,21,28)

KIT-SEAL,GEARCASE-FRONT (INC 2,20,21,28)
-

3233949 ASM,ROLL CAGE (INC 11,35)

ASM,ROLL CAGE (INC 11,35)
5

3233925 KIT-SHIM SET

KIT-SHIM SET
6

3233926 BEARING-ROLLER BALL

BEARING-ROLLER BALL
8

3233928 PIN-DOWEL,1/2''DIA X 1''

PIN-DOWEL,1/2''DIA X 1''
9

3233932 BEARING-ROLLER BALL

BEARING-ROLLER BALL
10

3233933 CLUTCH HSG/ RING GEAR

CLUTCH HSG/ RING GEAR
11

3233935 SPRING-H-CLIP .008"

SPRING-H-CLIP .008"
12

3233957 KIT-ROLLER

KIT-ROLLER
13

3233934 RING-RETAINING,WIRE FORM

RING-RETAINING,WIRE FORM
17

8450003-1525 LINE,FUEL,1/4 ID(1525 CM.)

LINE,FUEL,1/4 ID(1525 CM.)
18

7080693 CLAMP,HOSE,NYLON

CLAMP,HOSE,NYLON
19

7080307 CLAMP,HOSE

CLAMP,HOSE
22

3233955 KIT-BOLT

KIT-BOLT
23

3233947 COVER-INPUT,MACH

COVER-INPUT,MACH
24

3233945 BEARING-ROLLER BALL

BEARING-ROLLER BALL
25

3233944 SHAFT-PINION,11T,6.75DP,MACH

SHAFT-PINION,11T,6.75DP,MACH
29

3233942 PLUG-OIL FILL 3/4-16 HOLLOW

PLUG-OIL FILL 3/4-16 HOLLOW
30

7552603 WASHER,SPRING LOCK

WASHER,SPRING LOCK
31

7512492 SCREW

SCREW
34

3233929 BEARING-NEEDLE ROLLER THRUST

BEARING-NEEDLE ROLLER THRUST
36

3233924 ARMATURE PLATE

ARMATURE PLATE
