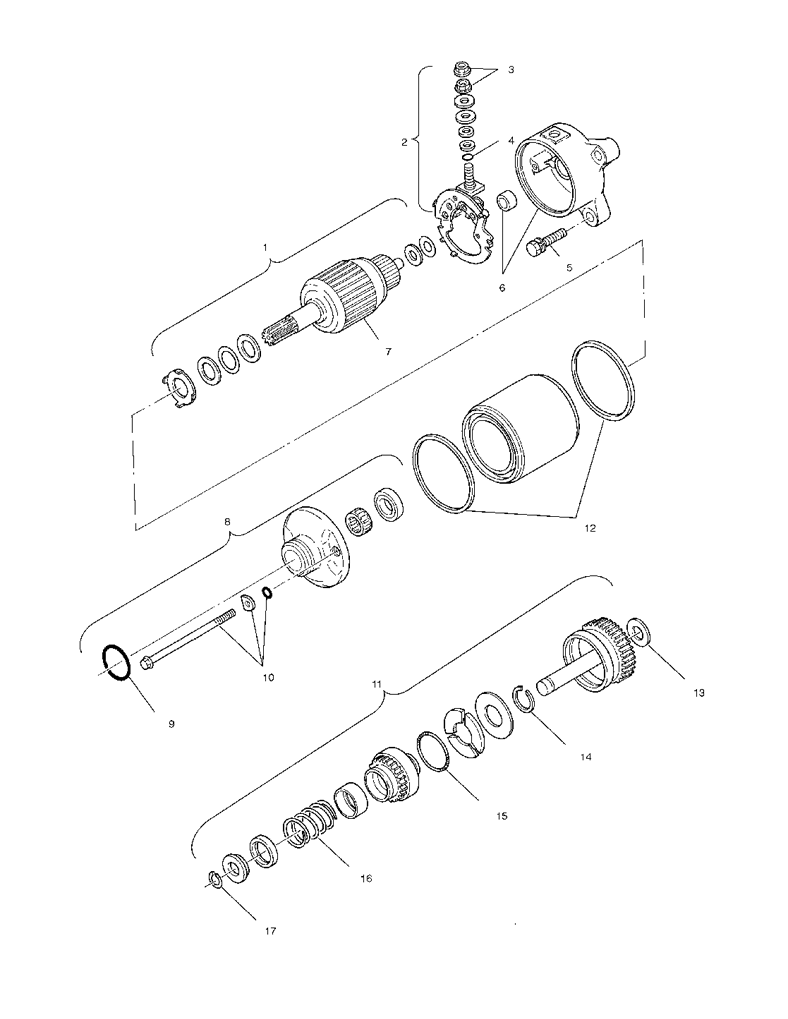

STARTING MOTOR для Polaris RANGER 6X6 SERIES 10 [A10RF50AB] - 2003 года выпуска
-
№АртикулНазвание
-
13084982 WASHER SETWASHER SET
-
23084406 CARBON BRUSH SETCARBON BRUSH SET
-
33083649 NUT, FLANGENUT, FLANGE
-
43084408 O-RINGO-RING
-
53082038 BOLTANDWASHER ASM.BOLTANDWASHER ASM.
-
63085034 ASM.,COVER,REARASM.,COVER,REAR
-
73085353 ARMATURE ASM.ARMATURE ASM.
-
83085033 ASM., BRACKET, FRONTASM., BRACKET, FRONT
-
93240114 O-RINGO-RING
-
103084983 BOLT ASM, SET (INC 4)BOLT ASM, SET (INC 4)
-
113087030 ASM-GEAR SHAFT (INC 13-17)ASM-GEAR SHAFT (INC 13-17)
-
123084405 RING, RUBBERRING, RUBBER
-
133083737 WASHERWASHER
-
143084412 CLIPCLIP
-
153084411 SPRING, WEIGHTSPRING, WEIGHT
-
163084410 SPRING, RETURNSPRING, RETURN
-
173084409 CLIPCLIP
-
-3084981 ASM.,MOTOR, STARTING (INC 1-4,6-10,12)ASM.,MOTOR, STARTING (INC 1-4,6-10,12)
