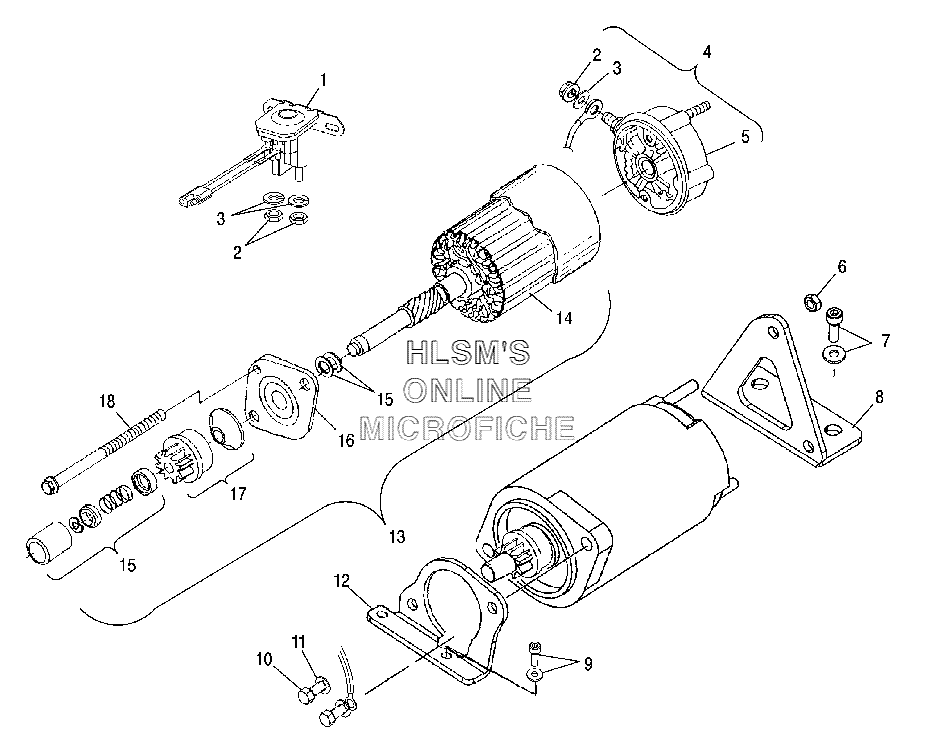

STARTING MOTOR для Polaris 340 EDGE LX (S07ND3AS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    4011335 SWITCH MAGNETIC (INCL. 2, 3)
    SWITCH MAGNETIC (INCL. 2, 3)
  • 2
    7542105 NUT HEXAGON
    NUT HEXAGON
  • 3
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 4
    2200758 COMMUTATOR CAP ASSY (INCL. 5)
    COMMUTATOR CAP ASSY (INCL. 5)
  • 5
    2200759 BRUSH AND SPRING KIT
    BRUSH AND SPRING KIT
  • 6
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 7
    7516815 SCREW
    SCREW
  • 8
    5241786 BRACKET, STARTER (REAR)
    BRACKET, STARTER (REAR)
  • 9
    7516730 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 10
    7512492 SCREW
    SCREW
  • 11
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 12
    5241316 BRACKET, STARTER, FRONT
    BRACKET, STARTER, FRONT
  • 13
    2410748 MOTOR STARTER
    MOTOR STARTER
  • 14
    2200756 ARMATURE ASSY
    ARMATURE ASSY
  • 15
    2200755 DRIVE HARDWARE KIT
    DRIVE HARDWARE KIT
  • 16
    2200757 DRIVECAP ASSY
    DRIVECAP ASSY
  • 17
    2200754 DRIVE ASSY
    DRIVE ASSY
  • 18
    2200753 SCREW KIT
    SCREW KIT
