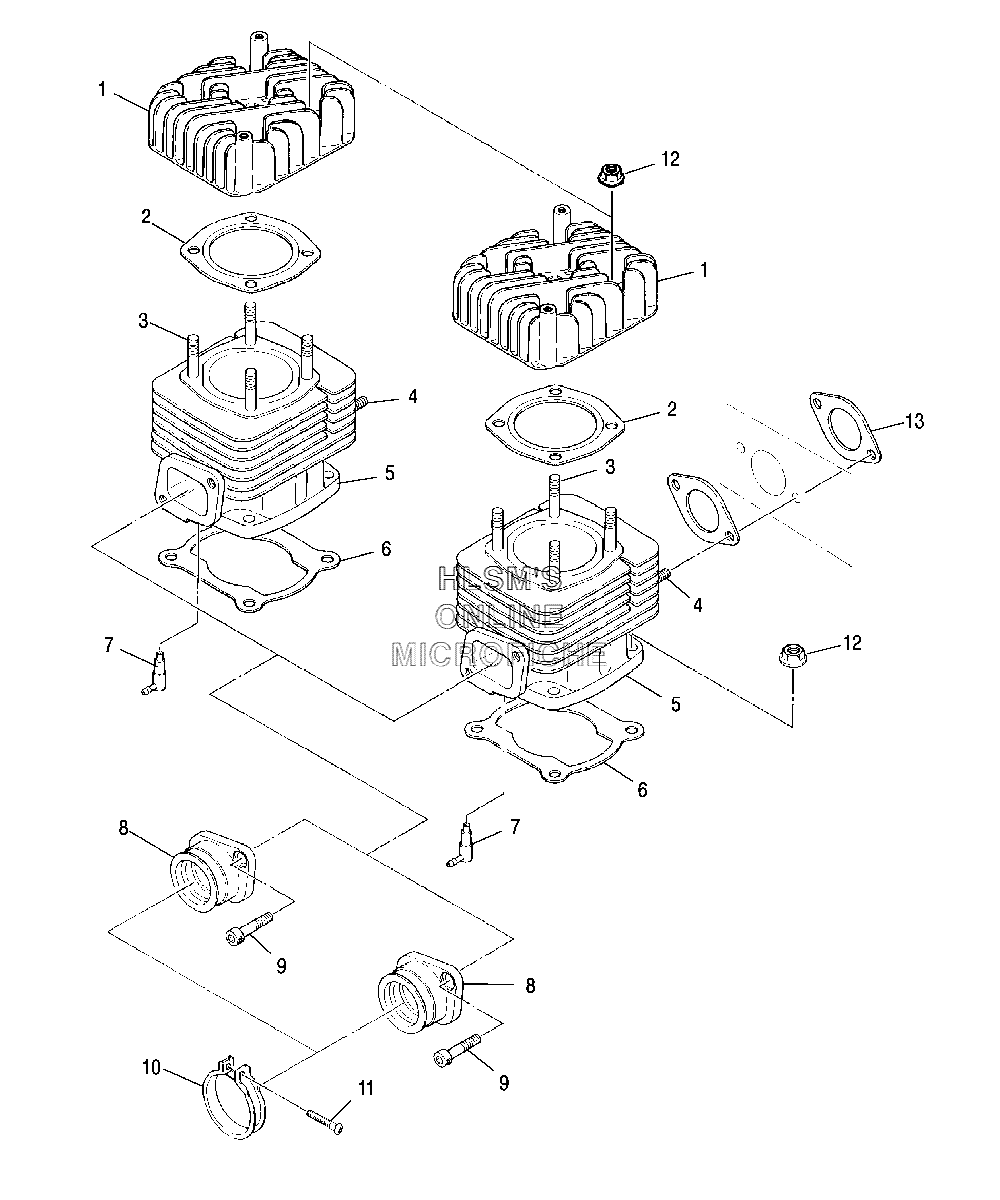

CYLINDER ASSEMBLY для Polaris 340 EDGE LX (S07ND3AS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3083573 HEAD, CYLINDER
    HEAD, CYLINDER
  • 2
    3085844 GASKET ASSY, HEAD
    GASKET ASSY, HEAD
  • 3
    3080283 STUD
    STUD
  • 4
    3085326 STUD
    STUD
  • 5
    3083570 CYLINDER ASSY (INCL. 3, 4)
    CYLINDER ASSY (INCL. 3, 4)
  • 6
    3085843 GASKET CYLINDER
    GASKET CYLINDER
  • 7
    3086785 VALVE ASSY, CHECK
    VALVE ASSY, CHECK
  • 8
    3083576 ADAPTER ASSY
    ADAPTER ASSY
  • 9
    3081330 BOLT, SOCKET HEAD
    BOLT, SOCKET HEAD
  • 10
    3082257 BAND ASSY, ADAPTER (INCL. 11)
    BAND ASSY, ADAPTER (INCL. 11)
  • 11
    3081497 SCREW, PAN HEAD
    SCREW, PAN HEAD
  • 12
    3082910 NUT FLANGE
    NUT FLANGE
  • 13
    3085845 GASKET ASSY, EXHAUST
    GASKET ASSY, EXHAUST
