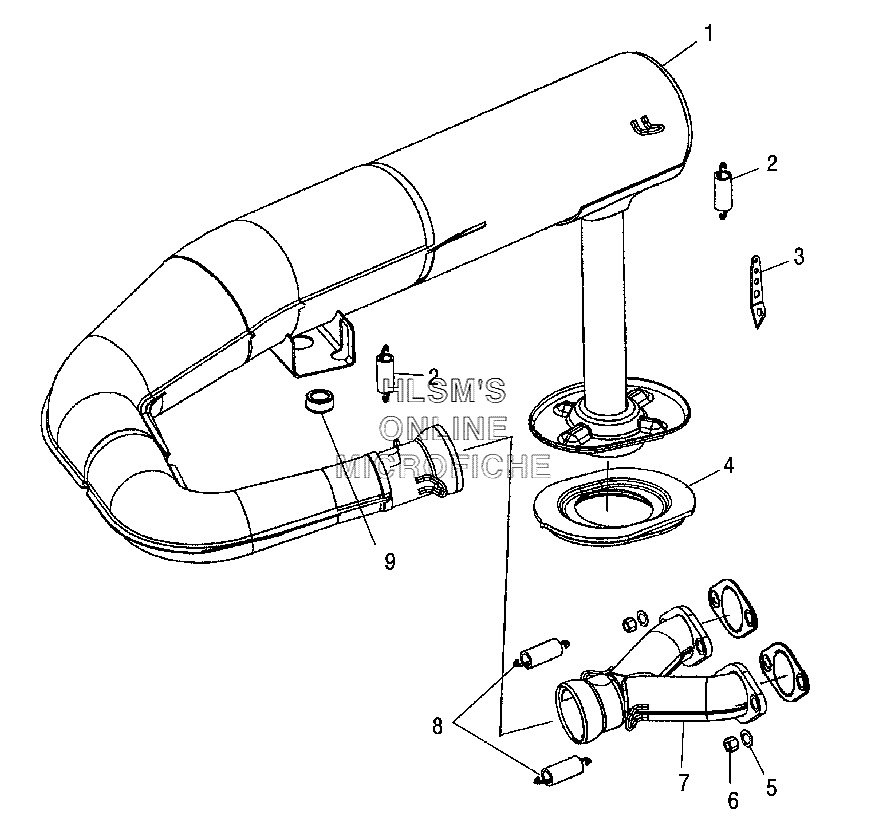

EXHAUST SYSTEM для Polaris 340 EDGE LX (S07ND3AS) - 2007 года выпуска`
-
№АртикулНазвание
-
11261203-029 WELD PIPE, TUNED (BLACK)WELD PIPE, TUNED (BLACK)
-
27041687 SPRINGSPRING
-
35246202 BRKT RETAINERBRKT RETAINER
-
45411902 BOOT, OUTLETBOOT, OUTLET
-
57552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
67547210 NUT LINC, THREADNUT LINC, THREAD
-
71261217-029 WELD MANIFOLD (BLACK)WELD MANIFOLD (BLACK)
-
87042332 SPRINGSPRING
-
95433576 DAMPENER VIBRATIONSDAMPENER VIBRATIONS
