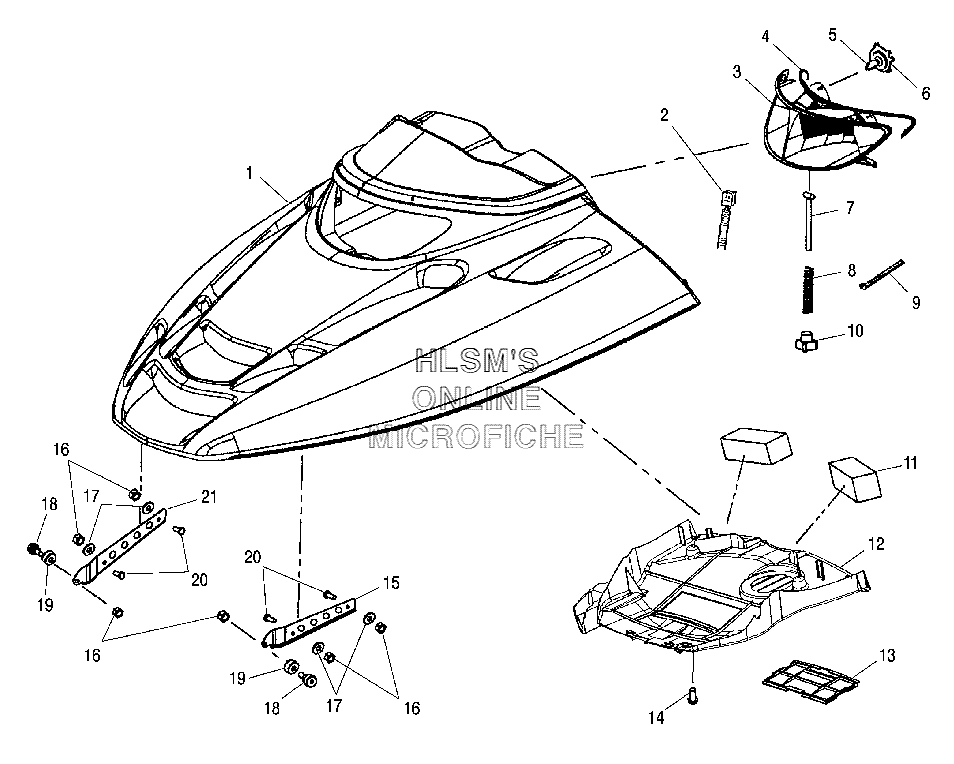

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 340 EDGE LX (S07ND3AS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    2632727-499 HOOD ASSY, EDGE (SPRSNC BLUE) (INCL. FOAM AND FOIL)
    HOOD ASSY, EDGE (SPRSNC BLUE) (INCL. FOAM AND FOIL)
  • 2
    2461015 HARNESS HEADLIGHT, E/R
    HARNESS HEADLIGHT, E/R
  • 3
    2410132 HEADLAMP ASSY, 2 BULB (INCL. BULBS)
    HEADLAMP ASSY, 2 BULB (INCL. BULBS)
  • 4
    5812450 SEAL HEADLIGHT, ONE PIECE
    SEAL HEADLIGHT, ONE PIECE
  • 5
    2870448 BULB, QUARTZ HEADLIGHT (60/55W)
    BULB, QUARTZ HEADLIGHT (60/55W)
  • 6
    4032063 RETAINER, HEADLIGHT BULB
    RETAINER, HEADLIGHT BULB
  • 7
    7517872 BOLT TEE ADJUSTER (2.25)
    BOLT TEE ADJUSTER (2.25)
  • 8
    7041954 SPRING HEADLIGHT ADJUST
    SPRING HEADLIGHT ADJUST
  • 9
    7080138 CABLE TIE
    CABLE TIE
  • 10
    7080887 KNOB, HEADLIGHT, ADJUST, LOCKING
    KNOB, HEADLIGHT, ADJUST, LOCKING
  • 11
    5811793 FOAM, PREFILTER
    FOAM, PREFILTER
  • 12
    2632491 PLENUM ASSY, FOIL
    PLENUM ASSY, FOIL
  • 12
    5811948 FOIL (4.5X1.0)
    FOIL (4.5X1.0)
  • 12
    5812324 FOIL
    FOIL
  • 13
    5433660 COVER, HEADLIGHT ACCESS
    COVER, HEADLIGHT ACCESS
  • 14
    7512068 SCREW
    SCREW
  • 15
    5243567-067 HINGE (UPPER/LEFT/BLACK)
    HINGE (UPPER/LEFT/BLACK)
  • 16
    7542122 NUT NYLOK
    NUT NYLOK
  • 17
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 18
    7512113 BOLT
    BOLT
  • 19
    5332403 SPACER
    SPACER
  • 20
    7512240 BOLT
    BOLT
  • 21
    5243568-067 HINGE (UPPER/RIGHT/BLACK)
    HINGE (UPPER/RIGHT/BLACK)
