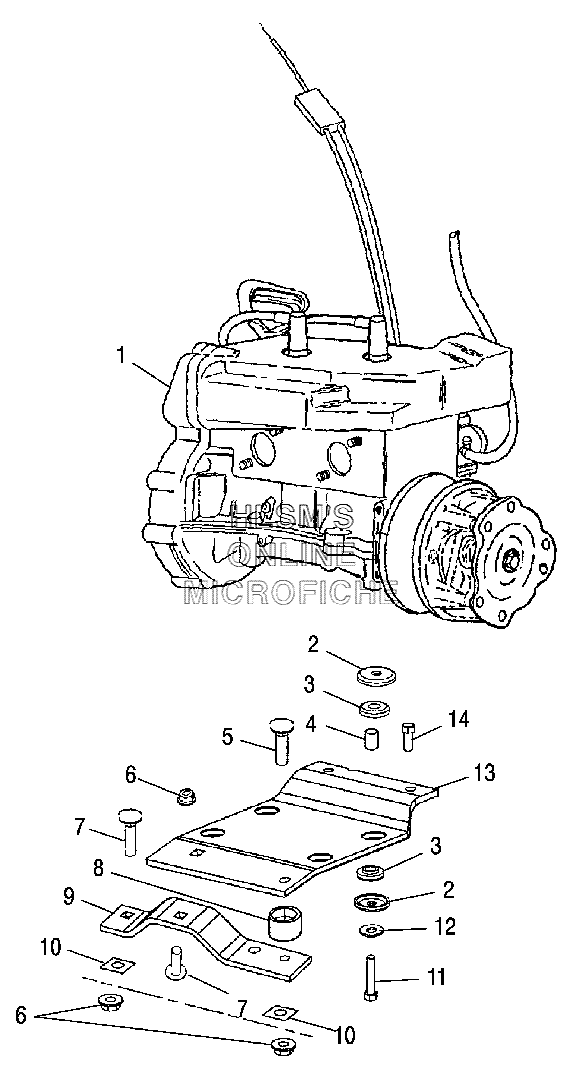

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 340 EDGE LX (S07ND3AS) - 2007 года выпуска
‹-+›
-
№АртикулНазвание
-
13089518 ENGINE SHORT BLOCK (SEE NOTE)ENGINE SHORT BLOCK (SEE NOTE)
-
25221901 CAP, DAMPENER, VIBRATIONCAP, DAMPENER, VIBRATION
-
35410320 DAMPNER VIB.DAMPNER VIB.
-
45010163 BUSHING MOTOR MOOUNTBUSHING MOTOR MOOUNT
-
57515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
67547180 NUT FLANGED, NYLONNUT FLANGED, NYLON
-
77518028 BOLT CARRIAGEBOLT CARRIAGE
-
85133371 SPACER, ENGINE (.390X1.80X1.11)SPACER, ENGINE (.390X1.80X1.11)
-
95246136-067 STRAP ENGINE MOUNT (BLACK)STRAP ENGINE MOUNT (BLACK)
-
107670146 RETAINER BOLT, PUSHNUT (3/8'')RETAINER BOLT, PUSHNUT (3/8'')
-
117512515 BOLTBOLT
-
127553101 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
135133372 PLATE ENGINEPLATE ENGINE
-
147517854 SCREWSCREW
