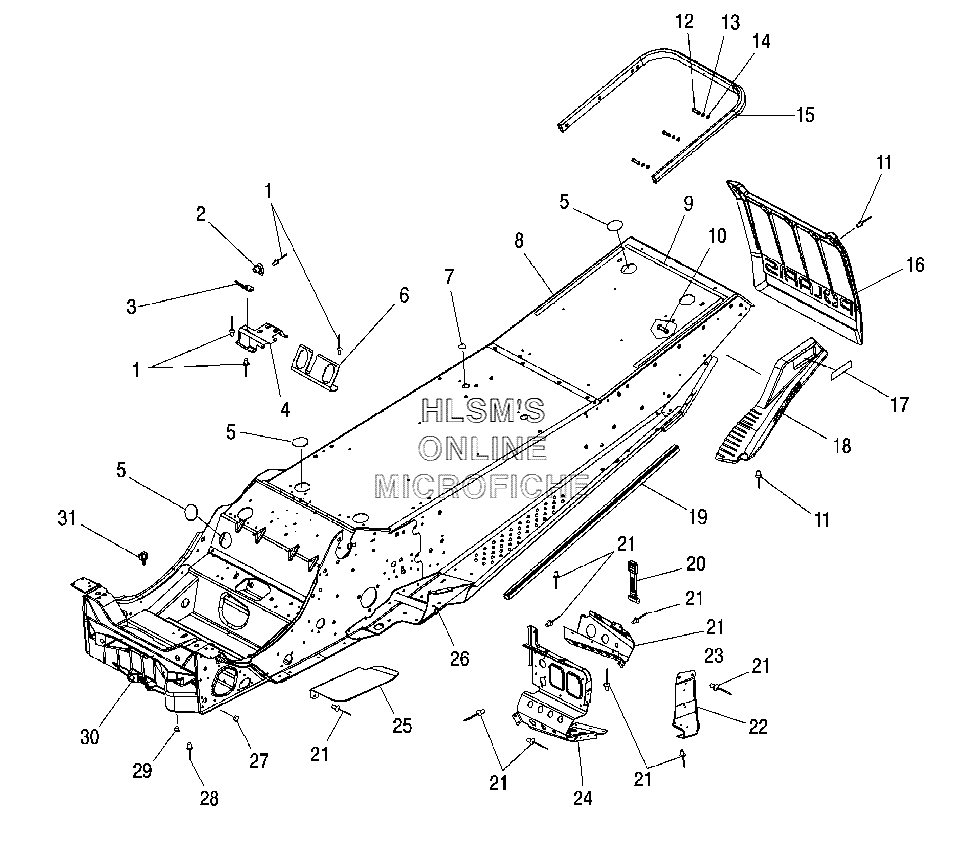

CHASSIS - REAR для Polaris 340 EDGE LX (S07ND3AS) - 2007 года выпуска
-
№АртикулНазвание
-
17621432 RIVETRIVET
-
25431385 GUIDE, RECOILGUIDE, RECOIL
-
35222687-067 BRACKET, ROPE GUIDE (BLACK)BRACKET, ROPE GUIDE (BLACK)
-
45246330 BRACKET OIL TANK/HOSE SUPPORTBRACKET OIL TANK/HOSE SUPPORT
-
57080934 CAPLUG (1 5/8'')CAPLUG (1 5/8'')
-
65246177 BRKT AIRBOXBRKT AIRBOX
-
77080592 CAPLUG (3/4'')CAPLUG (3/4'')
-
85812290 GASKET SEAT BASEGASKET SEAT BASE
-
95812360 GASKET SEAT BASE (1/4'')GASKET SEAT BASE (1/4'')
-
107517441 SCREWSCREW
-
117621472 RIVETRIVET
-
127512232 BOLTBOLT
-
137552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
147558301 WASHER, FLATWASHER, FLAT
-
152632165-309 BUMPER ASSY (REAR)BUMPER ASSY (REAR)
-
165433961-070 SNOW, FLAPSNOW, FLAP
-
172670133 REFLECTOR ASSY (RED)REFLECTOR ASSY (RED)
-
182632443-070 SNOWSKIRT/REFLECTOR ASSY (LEFT/BLACK)SNOWSKIRT/REFLECTOR ASSY (LEFT/BLACK)
-
182632444-070 SNOWSKIRT/REFLECTOR ASSY (RIGHT/BLACK)SNOWSKIRT/REFLECTOR ASSY (RIGHT/BLACK)
-
195245118 BRACE TUNNEL ROLLBRACE TUNNEL ROLL
-
205433150 STRAPSTRAP
-
217661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
225246310 SUPPORT FOOTREST (LEFT)SUPPORT FOOTREST (LEFT)
-
225246311 SUPPORT FOOTREST (RIGHT)SUPPORT FOOTREST (RIGHT)
-
235245457 MOUNT CONSOLE, TOE CLIP (LEFT)MOUNT CONSOLE, TOE CLIP (LEFT)
-
235245458 MOUNT CONSOLE, TOE CLIP (RIGHT)MOUNT CONSOLE, TOE CLIP (RIGHT)
-
245245288 FOOTREST (.080) (LEFT)FOOTREST (.080) (LEFT)
-
245247205 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
255246066 GUARD BELTGUARD BELT
-
262202059 MOUNT KIT, TRAILING ARM (LEFT)MOUNT KIT, TRAILING ARM (LEFT)
-
262202598 MOUNT KIT, TRAILING ARM (RIGHT)MOUNT KIT, TRAILING ARM (RIGHT)
-
277080416 PLUG, HOLEPLUG, HOLE
-
287081076 PLUG HOLE (1.25)PLUG HOLE (1.25)
-
297661130 RIVETRIVET
-
305132292 BULKHEAD (FRONT)BULKHEAD (FRONT)
-
314020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
1014086-309 CHASSIS ASSY, (STD) (INCL. 26, 30)CHASSIS ASSY, (STD) (INCL. 26, 30)
