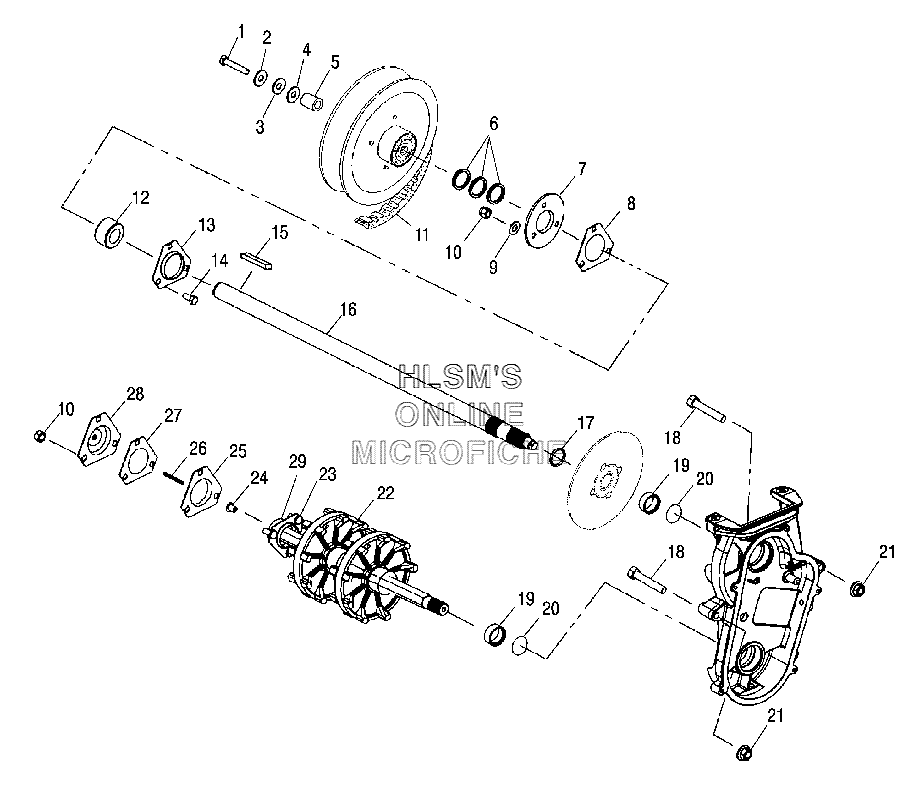

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 340 EDGE LX (S07ND3AS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7517581 SCREW
    SCREW
  • 2
    7555701 WASHER, FLAT
    WASHER, FLAT
  • 3
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 4
    7555957 WASHER
    WASHER
  • 5
    5135620 BUSHING
    BUSHING
  • 6
    7555864 WASHER
    WASHER
  • 6
    7556509 BUSHING
    BUSHING
  • 6
    7555917 WASHER
    WASHER
  • 7
    5241359 FLANGE RD, RELUBE WITH ZERK
    FLANGE RD, RELUBE WITH ZERK
  • 7
    7080561 FITTING, LUB/VEN
    FITTING, LUB/VEN
  • 8
    5811095 GASKET, JACKSHAFT (BLACK)
    GASKET, JACKSHAFT (BLACK)
  • 9
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 10
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 11
    3211078 BELT DRIVE
    BELT DRIVE
  • 12
    3514448 BEARING (25MM)
    BEARING (25MM)
  • 13
    5222751 FLANGETTE
    FLANGETTE
  • 14
    7512377 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 15
    7721128 KEY
    KEY
  • 16
    1332457 JACKSHAFT ASSY. (INCL. 12, 17)
    JACKSHAFT ASSY. (INCL. 12, 17)
  • 17
    7710422 RING, RETAINING
    RING, RETAINING
  • 18
    7515428 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 19
    5020588 SLEEVE, SEAL
    SLEEVE, SEAL
  • 20
    5410613 O-RING
    O-RING
  • 21
    7542423 NUT, FLANGE
    NUT, FLANGE
  • 22
    1590340 DRIVE SHAFT ASSY (INCL. 12, 23, 24)
    DRIVE SHAFT ASSY (INCL. 12, 23, 24)
  • 23
    1012945 FLANGETTE ASSY., WITH SCREWS
    FLANGETTE ASSY., WITH SCREWS
  • 24
    3280019 BUSHING METAL SPEEDOMETER
    BUSHING METAL SPEEDOMETER
  • 25
    5243529 FLANGETTE OFFSET WITH HOLE
    FLANGETTE OFFSET WITH HOLE
  • 26
    3280017 KEY, SPEEDOMETER, SQUARE
    KEY, SPEEDOMETER, SQUARE
  • 27
    5830012 GASKET, DRIVE ADAPTOR
    GASKET, DRIVE ADAPTOR
  • 28
    3280116 ADAPTER, DRIVE WITH ZERK
    ADAPTER, DRIVE WITH ZERK
  • 29
    3514525 BEARING
    BEARING
