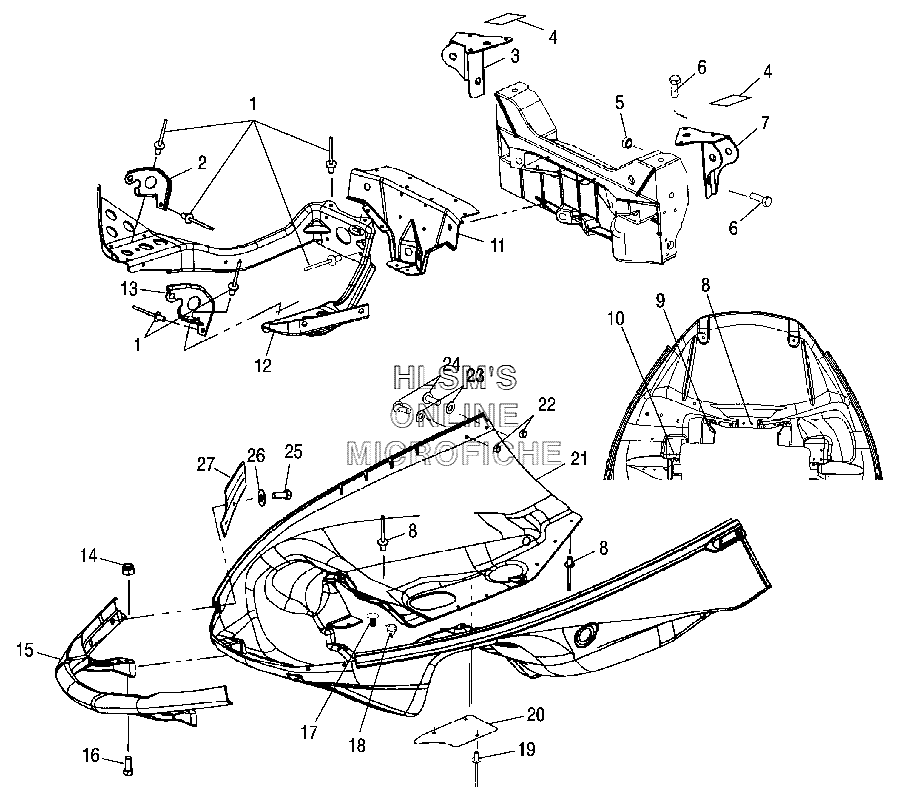

NOSEPAN ASSEMBLY #1 для Polaris 340 EDGE LX (S07ND3AS) - 2007 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
25243992-067 HINGE, PIVOT (LOWER/RIGHT/BLACK)HINGE, PIVOT (LOWER/RIGHT/BLACK)
-
35243978 MNT, SHOCK, BULKHEAD (UPPER/RIGHT)MNT, SHOCK, BULKHEAD (UPPER/RIGHT)
-
45810947 FOAM, SEALFOAM, SEAL
-
57547180 NUT FLANGED, NYLONNUT FLANGED, NYLON
-
67517935 SCREWSCREW
-
75243977 MOUNT SHOCK, BULKHEAD (UPPER/LEFT)MOUNT SHOCK, BULKHEAD (UPPER/LEFT)
-
87621467 RIVET, BLINDRIVET, BLIND
-
97621431 RIVETRIVET
-
107661136 RIVETRIVET
-
115244049-067 BRACKET, RAD. ROD SUPPORT (BLACK)BRACKET, RAD. ROD SUPPORT (BLACK)
-
125244050 BRACE, PAN (LOWER)BRACE, PAN (LOWER)
-
135243991-067 HINGE PIVOT (LOWER/LEFT/BLACK)HINGE PIVOT (LOWER/LEFT/BLACK)
-
147542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
155434469-070 BUMPERBUMPER
-
167512163 BOLTBOLT
-
177670131 PLUG NYLONPLUG NYLON
-
184020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
197621472 RIVETRIVET
-
205245853 SHIELD, HEAT, EXTENDEDSHIELD, HEAT, EXTENDED
-
215434980-070 NOSEPAN (BLACK)NOSEPAN (BLACK)
-
227542122 NUT NYLOKNUT NYLOK
-
237555827 WASHERWASHER
-
247515166 SCREWSCREW
-
257517986 SCREWSCREW
-
267552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
275244888 GUIDE HOOD (LEFT)GUIDE HOOD (LEFT)
-
275244889 GUIDE HOOD (RIGHT)GUIDE HOOD (RIGHT)
