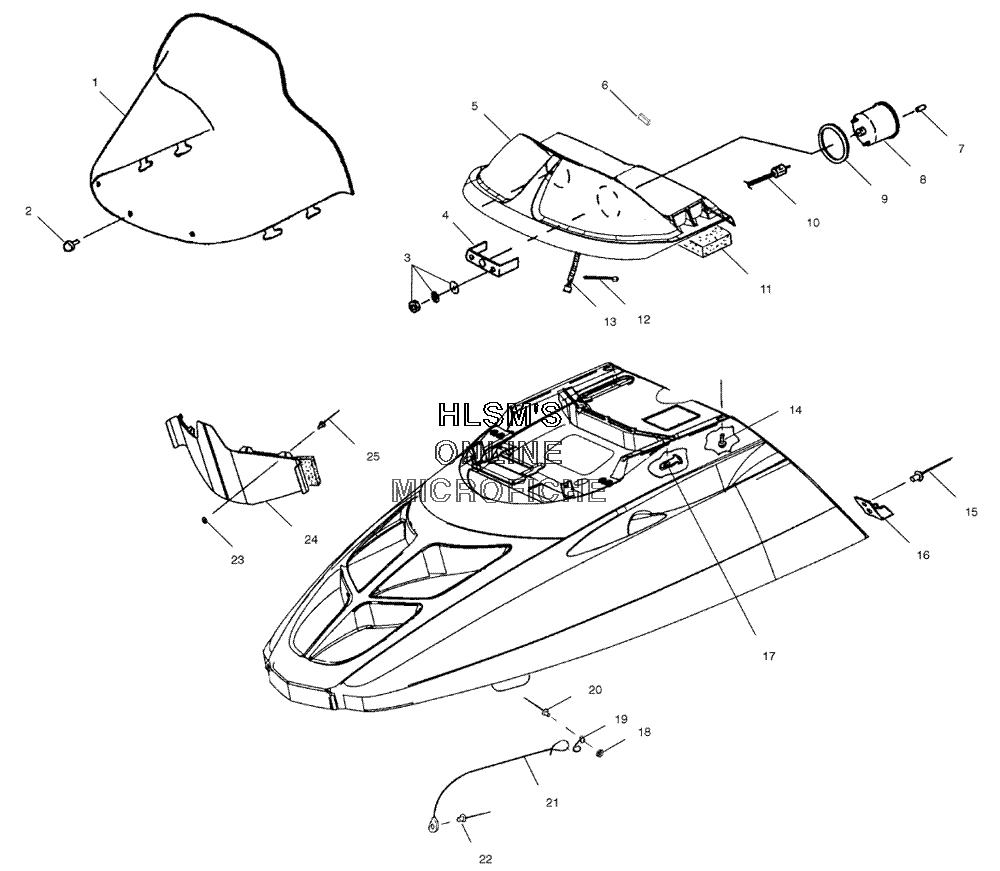

WINDSHIELD W/ GUAGES AND HOOD RETAINER для Polaris TRAIL TOURING (S03ST5BS) - 2003 года выпуска
-
№АртикулНазвание
-
15433667 WINDSHIELD 17" GEN IIWINDSHIELD 17" GEN II
-
27621509 RIVET, PLASTI-LOCKRIVET, PLASTI-LOCK
-
33280158 NUTNUT
-
33280156 WASHER SPLIT LOCKWASHER SPLIT LOCK
-
33280157 WASHER FLATWASHER FLAT
-
43280210 BRACKET TACHOMETER/SPEEDOMETER 5"BRACKET TACHOMETER/SPEEDOMETER 5"
-
52632549 INSTRUMENT HOUSING E/R ASSY (INCL. WARNING DECALS)INSTRUMENT HOUSING E/R ASSY (INCL. WARNING DECALS)
-
64010683 INDICATOR REVERSE (YELLOW)INDICATOR REVERSE (YELLOW)
-
73280186 KNOB, TRIP ODOMETER THD. (LEFT)KNOB, TRIP ODOMETER THD. (LEFT)
-
83280407 SPEEDOMETER, ASSY 5" 120 MPH (WHITE/BLACK)SPEEDOMETER, ASSY 5" 120 MPH (WHITE/BLACK)
-
84030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
93280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
103280341 CABLE, SPEEDOMETER (90")CABLE, SPEEDOMETER (90")
-
115811625 FOAM, PREFILTERFOAM, PREFILTER
-
127080138 CABLE TIECABLE TIE
-
132460913 HARNESS HEADLIGHT, G2 COM E/RHARNESS HEADLIGHT, G2 COM E/R
-
147517441 SCREW (.75)SCREW (.75)
-
157621334 RIVETRIVET
-
165430733 CUP, HOOD LATCHCUP, HOOD LATCH
-
175410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
187555904 WASHERWASHER
-
195242893 CLIP, PIGTAILCLIP, PIGTAIL
-
207661084 RIVETRIVET
-
217080764 CABLE, HOOD HYBRIDCABLE, HOOD HYBRID
-
227621402 RIVET, POPRIVET, POP
-
237555727 WASHERWASHER
-
245243212 DEFLECTOR AIR, HOOD (INCL. FOAM)DEFLECTOR AIR, HOOD (INCL. FOAM)
-
257621301 RIVETRIVET
