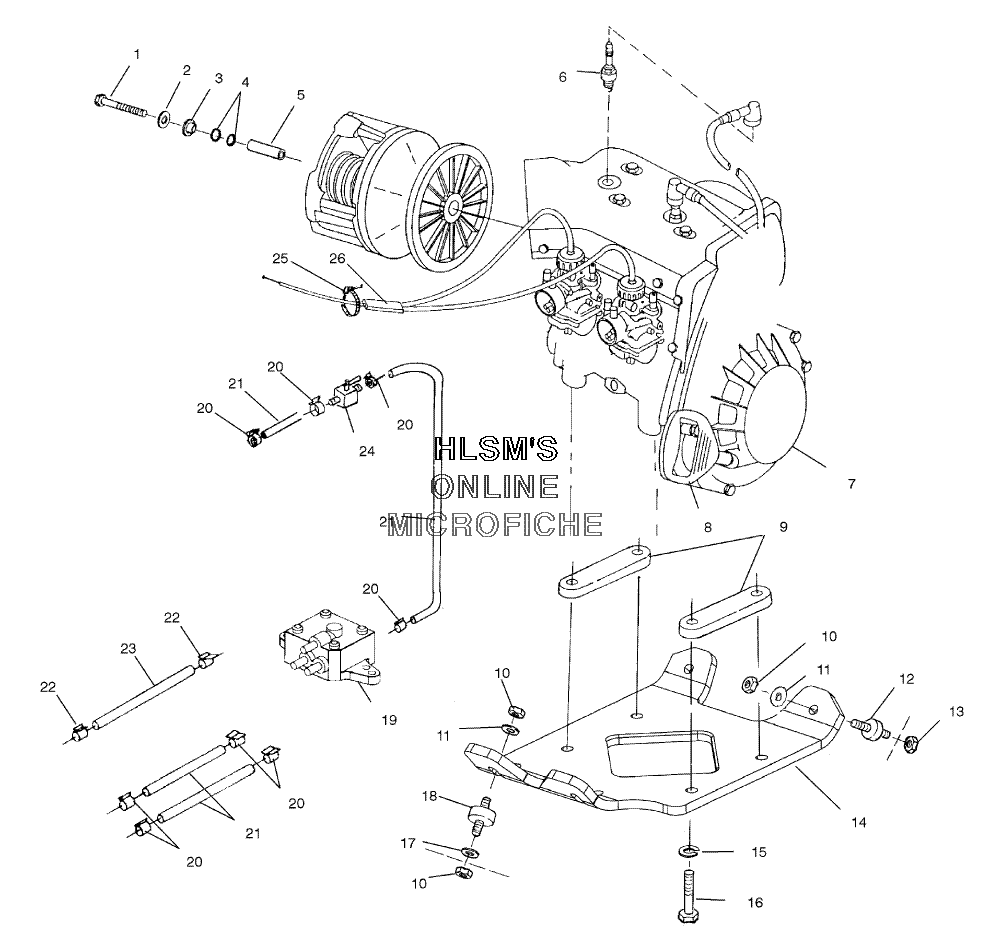

ENGINE MOUNTING W/ SHORT BLOCK для Polaris TRAIL TOURING (S03ST5BS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7517776 SCREW HEXAGON CAP
    SCREW HEXAGON CAP
  • 2
    7575202 WASHER LOCK
    WASHER LOCK
  • 3
    5010287 WASHER CLUTCH RETAINER
    WASHER CLUTCH RETAINER
  • 4
    5410507 O-RING,
    O-RING,
  • 5
    5020513 SPACER
    SPACER
  • 6
    3070163 SPARKPLUG BR9ES
    SPARKPLUG BR9ES
  • 7
    3085618 ENGINE SHORT BLOCK (EC55PM)
    ENGINE SHORT BLOCK (EC55PM)
  • 8
    5431499-070 HANDLE RECOIL (BLACK)
    HANDLE RECOIL (BLACK)
  • 9
    5243195 SPACER ENGINE
    SPACER ENGINE
  • 10
    7547008 NUT, FLEXLOCK
    NUT, FLEXLOCK
  • 11
    7555893 WASHER FLAT
    WASHER FLAT
  • 12
    3021099 MOUNT ENGINE 3-TAB
    MOUNT ENGINE 3-TAB
  • 13
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 14
    5132001 PLATE MOTOR MOUNT
    PLATE MOTOR MOUNT
  • 15
    7553101 WASHER SPRING LOCK
    WASHER SPRING LOCK
  • 16
    7517442 BOLT
    BOLT
  • 17
    7555915 WASHER FLAT
    WASHER FLAT
  • 18
    3110062 MOUNT, ENGINE
    MOUNT, ENGINE
  • 20
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    8350018-600 TUBING, ETHER ERETHANE (160 CM)
    TUBING, ETHER ERETHANE (160 CM)
  • 22
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 23
    8450040-600 LINE FUEL (1/4 ID/600 CM.)
    LINE FUEL (1/4 ID/600 CM.)
  • 24
    7052249 VALVE FUEL, PLASTIC 90Ш 1/4HOSE
    VALVE FUEL, PLASTIC 90Ш 1/4HOSE
  • 25
    7080138 CABLE TIE
    CABLE TIE
  • 26
    7080888 CABLE THROTTLE
    CABLE THROTTLE
