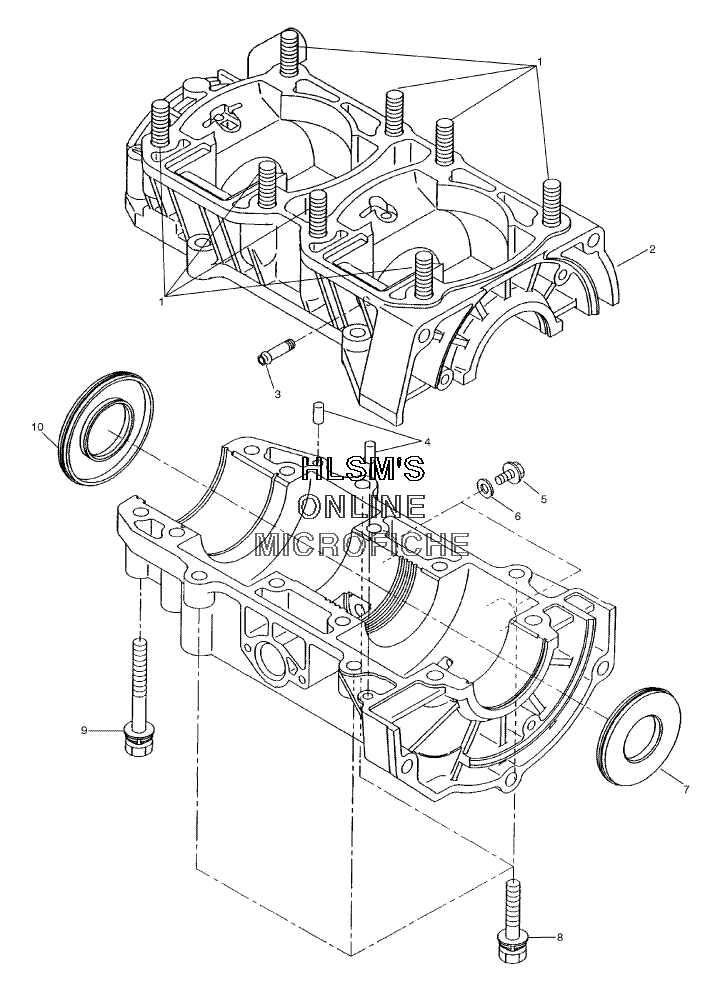

CRANKCASE ASSEMBLY для Polaris TRAIL TOURING (S03ST5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
13085713 STUDSTUD
-
23085907 CRANKCASE (INCL. 1-4, 8, 9)CRANKCASE (INCL. 1-4, 8, 9)
-
33083798 PIPE, PULSEPIPE, PULSE
-
43080103 PIN, DOWELPIN, DOWEL
-
53083568 BOLT, FLANGEBOLT, FLANGE
-
63082758 WASHER, FLATWASHER, FLAT
-
73085664 SEAL, OILSEAL, OIL
-
83084225 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
93084670 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
103085663 SEAL, OILSEAL, OIL
