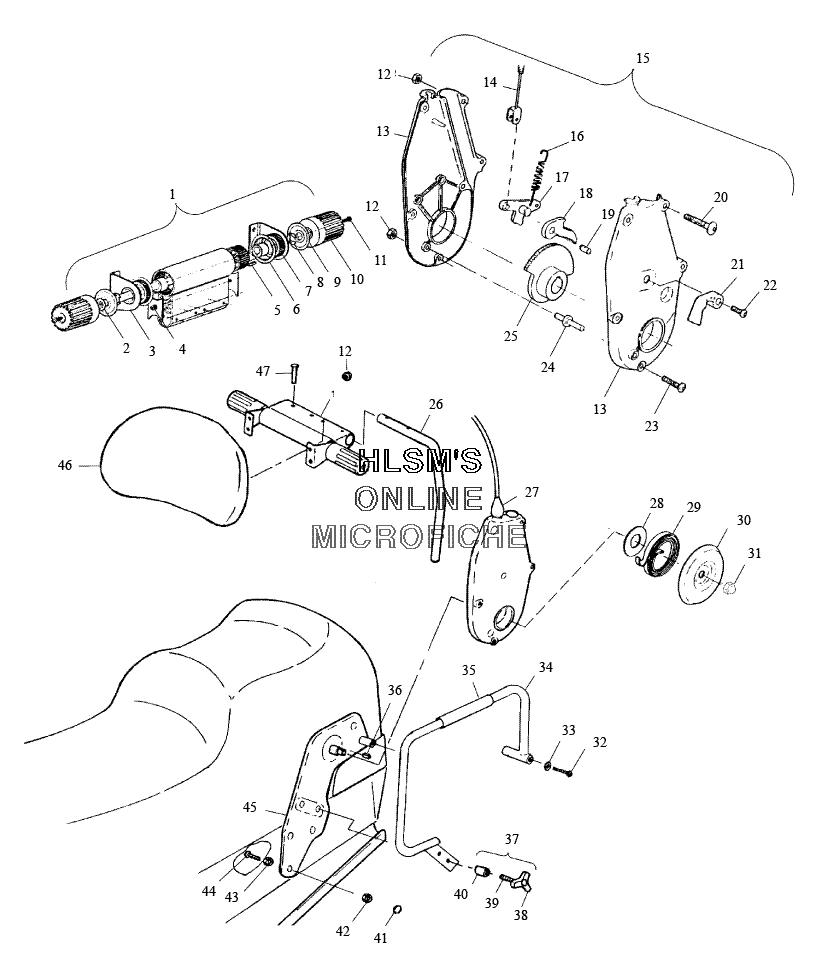

BACKREST ASSEMBLY для Polaris TRAIL TOURING (S03ST5BS) - 2003 года выпуска
-
№АртикулНазвание
-
11012534 ADJUST ASSY BACKREST CUSHION (INCL. 2-11)ADJUST ASSY BACKREST CUSHION (INCL. 2-11)
-
27571635 WASHER WAVEWASHER WAVE
-
31012535 BRACKET MOUNTINGBRACKET MOUNTING
-
47511866 SCREWSCREW
-
57721118 KEY, SQUAREKEY, SQUARE
-
65432113 SEAL, BACKRESTSEAL, BACKREST
-
75131207 ROTORROTOR
-
87710901 E-RINGE-RING
-
97571634 WASHERWASHER
-
105432112 KNOB, ADJUSTKNOB, ADJUST
-
117512087 SCREWSCREW
-
127542122 NUT NYLOKNUT NYLOK
-
135131211 HOUSING (LEFT) (ADJUST BACKREST )HOUSING (LEFT) (ADJUST BACKREST )
-
135131212 HOUSING (RIGHT) (ADJUST BACKREST )HOUSING (RIGHT) (ADJUST BACKREST )
-
147080582 CABLE ACTUATOR ASSYCABLE ACTUATOR ASSY
-
151013409 BACKREST, ADJUSTER ASSY (INCL. 12-25)BACKREST, ADJUSTER ASSY (INCL. 12-25)
-
167041411 SPRING LOCKINGSPRING LOCKING
-
171013410 LOCKING, PAWL MASTER ASSY PM (LEFT)LOCKING, PAWL MASTER ASSY PM (LEFT)
-
171013411 LOCKING, PAWL ASSY PM (RIGHT)LOCKING, PAWL ASSY PM (RIGHT)
-
185245042 SECTOR ENGAGEMENT PMSECTOR ENGAGEMENT PM
-
195020806 PIN, PIVOTPIN, PIVOT
-
207515171 BOLTBOLT
-
215631126-067 LEVER LOCKING (BLACK)LEVER LOCKING (BLACK)
-
227516915 SCREWSCREW
-
237515170 BOLTBOLT
-
245020822 STUD-LIMITERSTUD-LIMITER
-
255245039 GEAR STATIONARY, PMGEAR STATIONARY, PM
-
265224761-067 TUBE, BACKREST MOUNT (BLACK)TUBE, BACKREST MOUNT (BLACK)
-
275432259 COVER, CABLE (BLACK)COVER, CABLE (BLACK)
-
287555926 WASHER THRUSTWASHER THRUST
-
297041412 SPRING TORSION PRELOADSPRING TORSION PRELOAD
-
305241935-067 COVER, SPRING (1/2" ID) (BLACK)COVER, SPRING (1/2" ID) (BLACK)
-
317547015 NUTNUT
-
327512307 SCREWSCREW
-
337555734 WASHER FLATWASHER FLAT
-
341012657-067 HANDLE, GRAB (LEFT/BLACK)HANDLE, GRAB (LEFT/BLACK)
-
341012658-067 HANDLE, GRAB (RIGHT/BLACK)HANDLE, GRAB (RIGHT/BLACK)
-
352460660 GRIP PASSENGER ASSYGRIP PASSENGER ASSY
-
367721125 KEY, HI PROKEY, HI PRO
-
371012385 KNOB, GRAB HANDLE (INCL. 38-40)KNOB, GRAB HANDLE (INCL. 38-40)
-
385630386-067 KNOB, BACKRESTKNOB, BACKREST
-
397515328 BOLTBOLT
-
405432123 SPACER, ADJUST KNOBSPACER, ADJUST KNOB
-
417080592 CAPLUG, 3/4"CAPLUG, 3/4"
-
427542324 NUT, NYLOKNUT, NYLOK
-
437547030 PALNUTPALNUT
-
447512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
451012539-067 MAINFRAME (LEFT/BLACK)MAINFRAME (LEFT/BLACK)
-
451012540-067 MAINFRAME (RIGHT/BLACK)MAINFRAME (RIGHT/BLACK)
-
462682830 BACKREST CUSHION, ASSYBACKREST CUSHION, ASSY
-
462682831 BACKREST COVER, ASSYBACKREST COVER, ASSY
-
477661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
