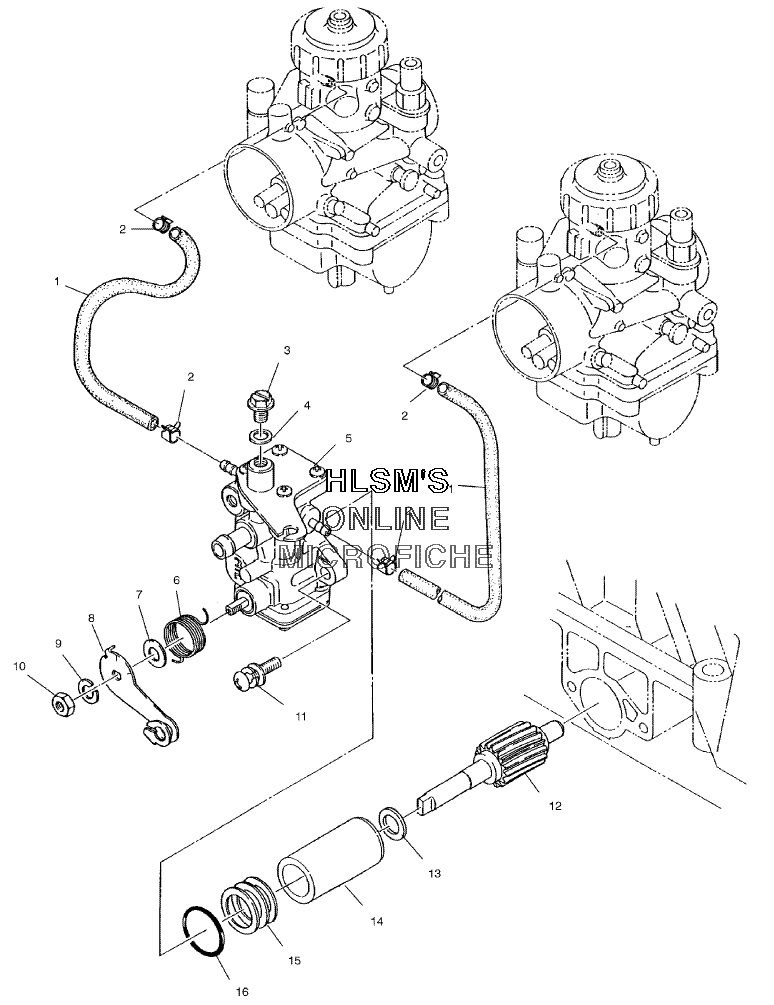

OIL PUMP ASSEMBLY для Polaris TRAIL TOURING (S03ST5BS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3085157 PIPE, VINYL
    PIPE, VINYL
  • 2
    3083141 CLAMP HOSE
    CLAMP HOSE
  • 3
    3083125 SCREW AIR VENT
    SCREW AIR VENT
  • 4
    3083126 PACKING
    PACKING
  • 5
    3087208 OIL PUMP, ASSY (INCL. 3-10, 16)
    OIL PUMP, ASSY (INCL. 3-10, 16)
  • 6
    3087210 SPRING RETURN
    SPRING RETURN
  • 7
    3083445 COLLAR, CAMSHAFT
    COLLAR, CAMSHAFT
  • 8
    3087209 LEVER CONTROL
    LEVER CONTROL
  • 9
    3083121 WASHER SPRING
    WASHER SPRING
  • 10
    3083120 NUT
    NUT
  • 11
    3083783 SCREW AND WASHER, ASSY
    SCREW AND WASHER, ASSY
  • 12
    3083131 GEAR, SMALL
    GEAR, SMALL
  • 13
    3083130 SPACER
    SPACER
  • 14
    3083353 BUSHING
    BUSHING
  • 15
    3083671 SPACER 1 (.15MM)
    SPACER 1 (.15MM)
  • 15
    3083672 SPACER 2 (.3MM)
    SPACER 2 (.3MM)
  • 15
    3083673 SPACER 3 (.6MM)
    SPACER 3 (.6MM)
  • 16
    3083127 O-RING
    O-RING
