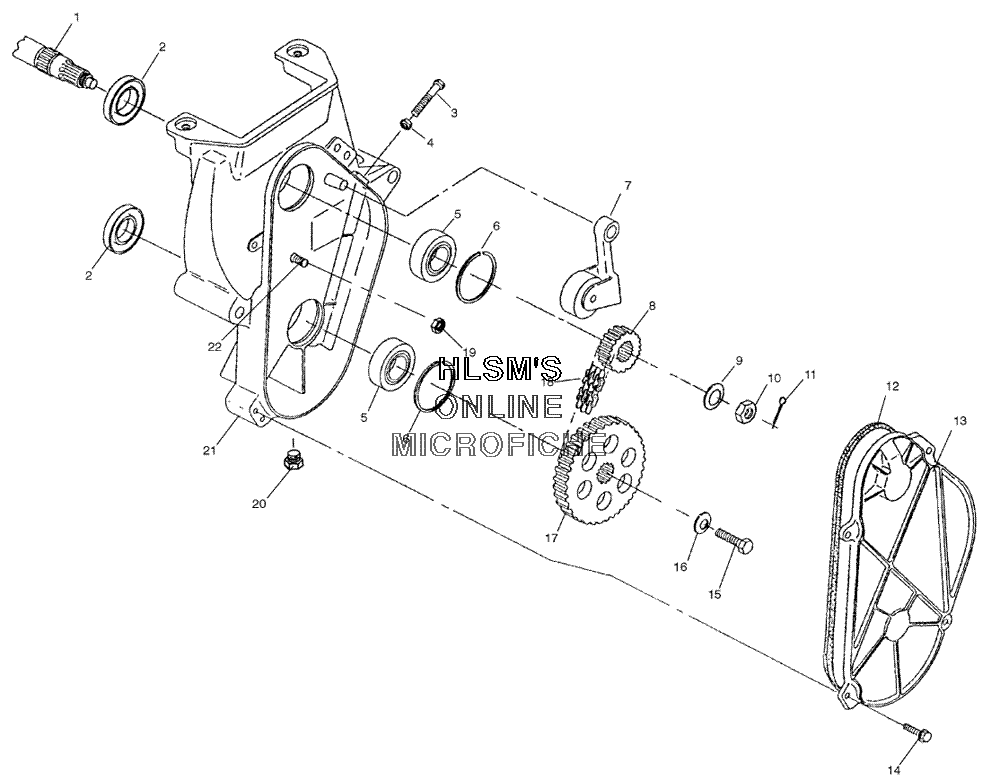

CHAINCASE ASSEMBLY для Polaris TRAIL TOURING (S03ST5BS) - 2003 года выпуска
-
№АртикулНазвание
-
23610030 SEAL, OILSEAL, OIL
-
37515551 SCREWSCREW
-
47542404 NUTNUT
-
53514309 BEARING, BALLBEARING, BALL
-
67718406 RING, RETAININGRING, RETAINING
-
71332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
73553002 BEARINGBEARING
-
75630958 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
75630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
77558702 WASHER THRUSTWASHER THRUST
-
77662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
83221095 SPROCKET (19T, 3/4W, 15 SPLINE HYVO PM)SPROCKET (19T, 3/4W, 15 SPLINE HYVO PM)
-
97571620 WASHER SPRINGWASHER SPRING
-
107542811 NUT, THIN NYLON INSTER-YNUT, THIN NYLON INSTER-Y
-
117661401 PIN, COTTERPIN, COTTER
-
125410277 GASKET CHAINCASEGASKET CHAINCASE
-
135630968 COVER CHAINCASE, CASTCOVER CHAINCASE, CAST
-
147512242 SCREWSCREW
-
157517979 SCREW 3/4 HEXAGON HEAD/NYL GR8-PSCREW 3/4 HEXAGON HEAD/NYL GR8-P
-
167571618 WASHER SPRINGWASHER SPRING
-
173222099 SPROCKET (40T/15T SPLINE HYVO PM)SPROCKET (40T/15T SPLINE HYVO PM)
-
183221113 CHAIN, HYVO (66 P, 3/4W)CHAIN, HYVO (66 P, 3/4W)
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215132158 CHAINCASE MACH, 6.625 CDCHAINCASE MACH, 6.625 CD
-
227515477 SCREW CARRIAGESCREW CARRIAGE
