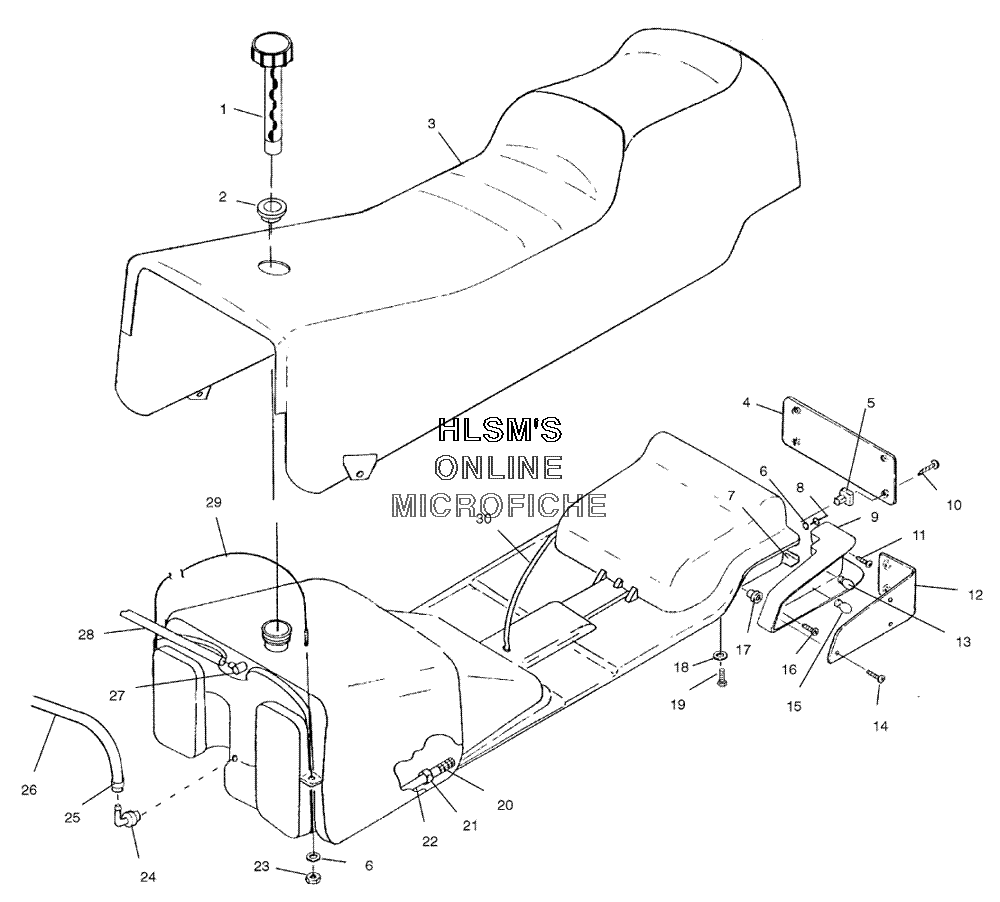

SEAT W/ GAS TANK ASSEMBLY для Polaris TRAIL TOURING (S03ST5BS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2511248 CAP, GAS W/GAUGE
    CAP, GAS W/GAUGE
  • 1
    5810513 GASKET, GAS CAP
    GASKET, GAS CAP
  • 2
    5410842 GROMMET, FUELTANK
    GROMMET, FUELTANK
  • 3
    2682829 SEAT, TOUR ASSY (INCL. 3-17, 20-24)
    SEAT, TOUR ASSY (INCL. 3-17, 20-24)
  • 3
    2682748 SEAT COVER TOUR, ASSY
    SEAT COVER TOUR, ASSY
  • 4
    5432008 REFLECTOR CENTER SEAT
    REFLECTOR CENTER SEAT
  • 5
    7546908 NUT
    NUT
  • 6
    7555746 WASHER
    WASHER
  • 7
    1012838-067 BRACKET SEAT MOUNT W/CLIP ASSY (BLACK)
    BRACKET SEAT MOUNT W/CLIP ASSY (BLACK)
  • 8
    7661046 RIVET POP
    RIVET POP
  • 9
    5432002 HOUSING LENS (LEFT)
    HOUSING LENS (LEFT)
  • 9
    5432003 HOUSING LENS (RIGHT)
    HOUSING LENS (RIGHT)
  • 10
    7511840 SCREW
    SCREW
  • 11
    7522004 SCREW SELF-TAP
    SCREW SELF-TAP
  • 12
    5432031 LENS (LEFT)
    LENS (LEFT)
  • 12
    5432032 LENS (RIGHT)
    LENS (RIGHT)
  • 13
    4030045 BULB
    BULB
  • 14
    7512054 SCREW
    SCREW
  • 15
    4032084 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 16
    7511954 SCREW
    SCREW
  • 17
    7541901 NUT, WELL
    NUT, WELL
  • 18
    7558302 WASHER WROUGHT
    WASHER WROUGHT
  • 19
    7512242 SCREW
    SCREW
  • 20
    7052301 PICK-UP FUEL, W/FILTER 105 MICRON
    PICK-UP FUEL, W/FILTER 105 MICRON
  • 21
    7080402 RING, COMPRESSION
    RING, COMPRESSION
  • 22
    8350019-1525 TUBE
    TUBE
  • 23
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 24
    7052143 FITTING, 90 DEG DOUBLE (OUTER)
    FITTING, 90 DEG DOUBLE (OUTER)
  • 25
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 26
    8350018-600 TUBING, ETHER ERETHANE (160 CM)
    TUBING, ETHER ERETHANE (160 CM)
  • 27
    7052095 FITTING, 90 DEG 1/8
    FITTING, 90 DEG 1/8
  • 28
    8450061-600 LINE, FUEL (3MMX7MM)
    LINE, FUEL (3MMX7MM)
  • 29
    7080559 CABLE, TANK RETENTION
    CABLE, TANK RETENTION
  • 30
    2460524 HARNESS, TAILLIGHT (TOUR)
    HARNESS, TAILLIGHT (TOUR)
