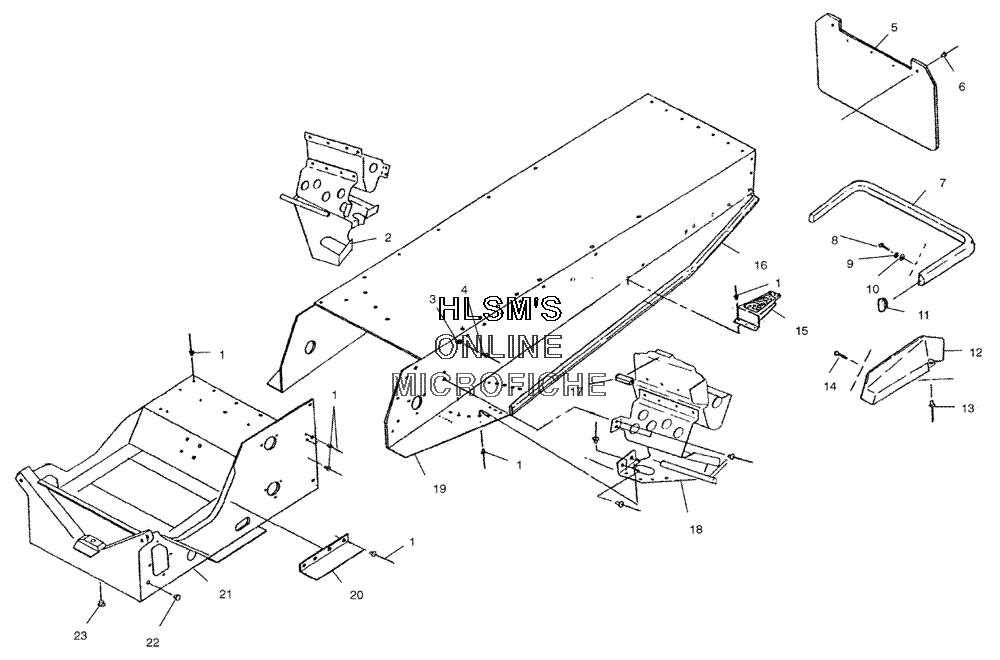

TUNNEL ASSEMBLY для Polaris TRAIL TOURING (S03ST5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
21012684 FOOTREST ASSY (RIGHT)FOOTREST ASSY (RIGHT)
-
37080227 SNAP, MALESNAP, MALE
-
47621222 RIVETRIVET
-
55432149-1106 FLAP, SNOW 13.74" (BLACK W/WHITE)FLAP, SNOW 13.74" (BLACK W/WHITE)
-
67621418 RIVET, POPRIVET, POP
-
72670168-309 BUMPER, NATURAL ASSY (REAR)BUMPER, NATURAL ASSY (REAR)
-
87515159 SCREWSCREW
-
97552801 WASHER SPRING LOCKWASHER SPRING LOCK
-
107558301 WASHER FLATWASHER FLAT
-
115431995-070 CAP, BUMPERCAP, BUMPER
-
125432131-070 SKIRT, SNOW TOURING (LEFT)SKIRT, SNOW TOURING (LEFT)
-
125432132-070 SKIRT, SNOW TOURING (RIGHT)SKIRT, SNOW TOURING (RIGHT)
-
137621467 RIVET, BLINDRIVET, BLIND
-
147512091 SCREWSCREW
-
151012633 FOOTREST W/GRIP PAD (LEFT)FOOTREST W/GRIP PAD (LEFT)
-
151012634 FOOTREST W/GRIP PAD (RIGHT)FOOTREST W/GRIP PAD (RIGHT)
-
155830114 PAD, FOOTREST GRIPPAD, FOOTREST GRIP
-
165242206 EDGE TUNNEL (LEFT)EDGE TUNNEL (LEFT)
-
165242207 EDGE TUNNEL (RIGHT)EDGE TUNNEL (RIGHT)
-
175521238 EXTRUSION, CLUTCH GUARDEXTRUSION, CLUTCH GUARD
-
181013531 FOOTREST, ASSYFOOTREST, ASSY
-
191013605 TUNNEL, ASSYTUNNEL, ASSY
-
205222857 GUARD, ADAPTER GUIDEGUARD, ADAPTER GUIDE
-
211012707 WELD BULKHEADWELD BULKHEAD
-
227080416 PLUG, HOLEPLUG, HOLE
-
237080398 PLUG, HOLEPLUG, HOLE
Все узлы модели:
- AIR BOX
- BACKREST ASSEMBLY
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STARTING MOTOR
- STEERING LINKAGE
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
- • TUNNEL ASSEMBLY
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
