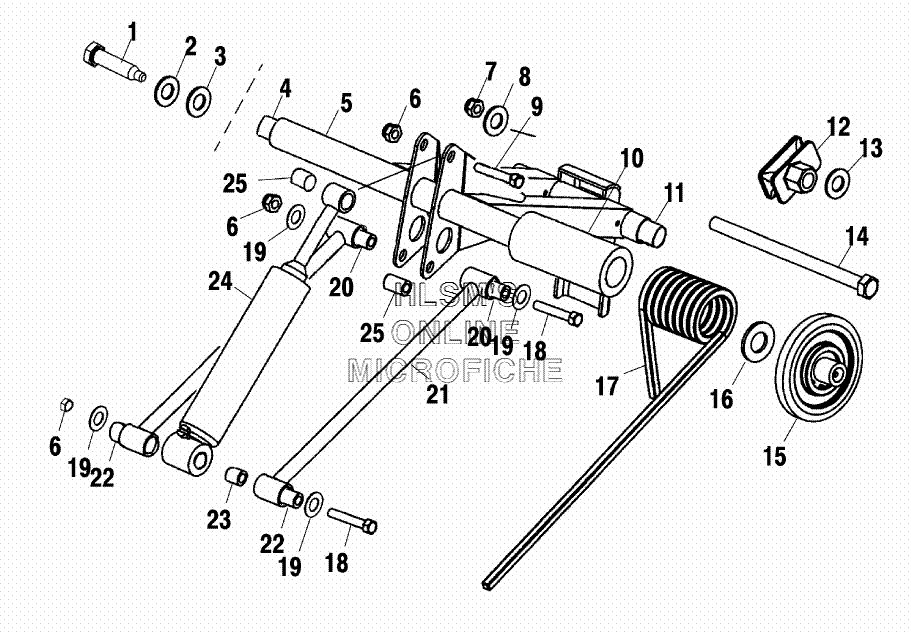

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 800 RMK F/O 156 (S02NM8CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7517435 BOLT
    BOLT
  • 2
    7552603 WASHER
    WASHER
  • 3
    7555893 WASHER
    WASHER
  • 4
    5133165 SHAFT
    SHAFT
  • 5
    1541615-216 WELD, REAR TORQUE ARM (YELLOW)
    WELD, REAR TORQUE ARM (YELLOW)
  • 5
    7080424 FITTING, LUBE
    FITTING, LUBE
  • 6
    7542411 NUT, LOCK
    NUT, LOCK
  • 7
    7547064 NUT
    NUT
  • 8
    7558402 WASHER, STEEL
    WASHER, STEEL
  • 9
    7512410 BOLT
    BOLT
  • 10
    5434337 SLEEVE, TORSION SPRING
    SLEEVE, TORSION SPRING
  • 11
    5333997 SHAFT
    SHAFT
  • 12
    5432983 ROLLER, SPRING ADJ
    ROLLER, SPRING ADJ
  • 13
    7080394 CLIP
    CLIP
  • 14
    7517908 SCREW
    SCREW
  • 15
    1541285 WHEEL, CARRIER W/COLLAR
    WHEEL, CARRIER W/COLLAR
  • 16
    7556301 MACHINERY, BUSHING
    MACHINERY, BUSHING
  • 17
    7042068-067 SPRING, TORSION (.359/47Ш) (LEFT/BLACK)
    SPRING, TORSION (.359/47Ш) (LEFT/BLACK)
  • 17
    7042069-067 SPRING, TORSION (.359/47Ш) (RIGHT/BLACK)
    SPRING, TORSION (.359/47Ш) (RIGHT/BLACK)
  • 17
    7042079-067 SPRING, TORSION (.375/47Ш) (LEFT/BLACK)
    SPRING, TORSION (.375/47Ш) (LEFT/BLACK)
  • 17
    7042080-067 SPRING, TORSION (.375/47Ш) (RIGHT/BLACK)
    SPRING, TORSION (.375/47Ш) (RIGHT/BLACK)
  • 17
    7042081-067 SPRING, TORSION (.347/47Ш) (LEFT/BLACK)
    SPRING, TORSION (.347/47Ш) (LEFT/BLACK)
  • 17
    7042082-067 SPRING, TORSION (.347/47Ш) (RIGHT/BLACK)
    SPRING, TORSION (.347/47Ш) (RIGHT/BLACK)
  • 18
    7515496 BOLT
    BOLT
  • 19
    7555795 WASHER, WAVE SPRING
    WASHER, WAVE SPRING
  • 20
    5133101 BUSHING
    BUSHING
  • 21
    1541631-067 WELD, SHOCK ROD (BLACK)
    WELD, SHOCK ROD (BLACK)
  • 22
    5132391 BUSHING
    BUSHING
  • 23
    5333905 SLEEVE
    SLEEVE
  • 24
    7041968 SHOCK, REAR TORQUE ARM
    SHOCK, REAR TORQUE ARM
  • 25
    5010422 BUSHING
    BUSHING
