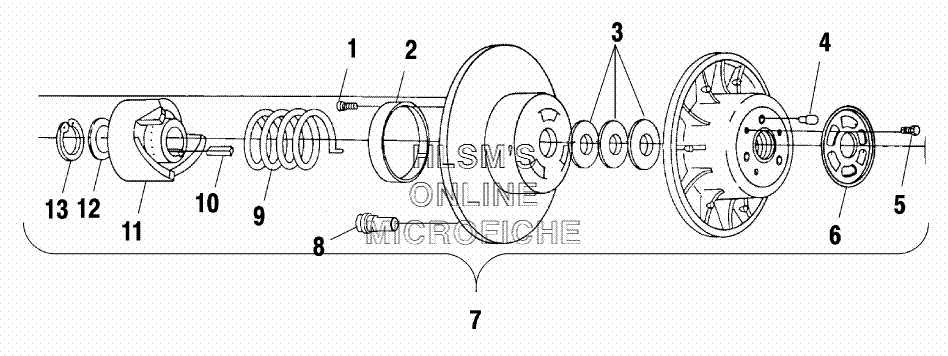

CLUTCH - DRIVEN для Polaris 800 RMK F/O 156 (S02NM8CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512048 SCREW
    SCREW
  • 2
    3569803 BUSHING, D.U.
    BUSHING, D.U.
  • 3
    7556804 WASHER (.03)
    WASHER (.03)
  • 3
    7556076 WASHER (.025)
    WASHER (.025)
  • 3
    7555898 WASHER (.02)
    WASHER (.02)
  • 3
    7555865 WASHER, DRIVE CLUTCH (.075)
    WASHER, DRIVE CLUTCH (.075)
  • 4
    5020653 PIN, CLUTCH
    PIN, CLUTCH
  • 5
    7515133 SCREW
    SCREW
  • 6
    5222878 CAM, DRIVEN ADJUSTABLE
    CAM, DRIVEN ADJUSTABLE
  • 7
    1321927 DRIVEN CLUTCH ASSY. (INCL. 1-8,10,12,13)
    DRIVEN CLUTCH ASSY. (INCL. 1-8,10,12,13)
  • 8
    5430466 BUTTON, RAMP
    BUTTON, RAMP
  • 9
    7041646 SPRING, CLUTCH (SVR/BLUE)
    SPRING, CLUTCH (SVR/BLUE)
  • 10
    7721103 KEY, SQUARE
    KEY, SQUARE
  • 11
    5131297 RAMP, DRIVEN
    RAMP, DRIVEN
  • 12
    7556804 WASHER
    WASHER
  • 13
    7714804 RING, RETAINING
    RING, RETAINING
