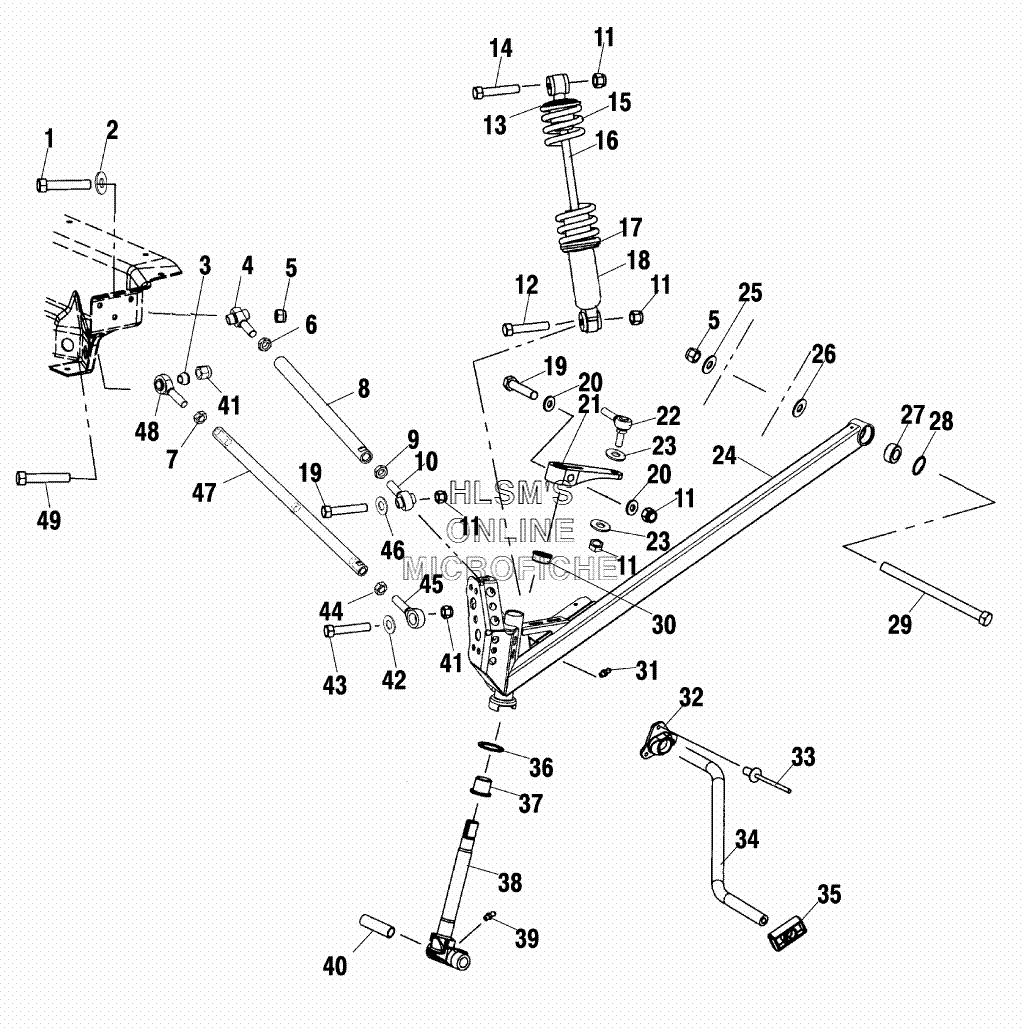

SUSPENSION - FRONT для Polaris 800 RMK F/O 156 (S02NM8CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7517980 BOLT
    BOLT
  • 2
    7556212 WASHER
    WASHER
  • 3
    5132454 BUSHING, SPACER
    BUSHING, SPACER
  • 4
    7061081 ROD END, RADIUS (LEFT)
    ROD END, RADIUS (LEFT)
  • 5
    7547066 NUT, NYLOK
    NUT, NYLOK
  • 6
    7547117 NUT
    NUT
  • 7
    7547028 NUT, JAM (LEFT)
    NUT, JAM (LEFT)
  • 8
    5133137 TUBE, RADIUS ROD (UPPER)
    TUBE, RADIUS ROD (UPPER)
  • 9
    7542520 NUT, JAM
    NUT, JAM
  • 10
    7061061 ROD END, RADIUS
    ROD END, RADIUS
  • 11
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 12
    7515433 BOLT
    BOLT
  • 13
    5630580 RETAINER, SPRING SLOTTED
    RETAINER, SPRING SLOTTED
  • 14
    7515415 BOLT
    BOLT
  • 15
    7041576-067 SPRING COMP. IFS
    SPRING COMP. IFS
  • 16
    7042059 SHOCK, IFS
    SHOCK, IFS
  • 17
    5431734 RING, SPRING PRELOAD ADJ.
    RING, SPRING PRELOAD ADJ.
  • 18
    1500063 RETAINER, SPRING BODY THREADED
    RETAINER, SPRING BODY THREADED
  • 19
    7517583 SCREW
    SCREW
  • 20
    7555832 WASHER
    WASHER
  • 21
    5133060 ARM, STEERING MACHINED
    ARM, STEERING MACHINED
  • 22
    7061086 ROD, END (RIGHT)
    ROD, END (RIGHT)
  • 23
    7555797 WASHER
    WASHER
  • 24
    1821201-293 TRAILING ARM ASSY. (LEFT/RED) (INCL. 27,28)
    TRAILING ARM ASSY. (LEFT/RED) (INCL. 27,28)
  • 24
    1821202-293 TRAILING ARM ASSY. (RIGHT/RED) (INCL. 27,28)
    TRAILING ARM ASSY. (RIGHT/RED) (INCL. 27,28)
  • 24
    1821201-216 TRAILING ARM ASSY. (LEFT/YELLOW) (INCL. 27,28)
    TRAILING ARM ASSY. (LEFT/YELLOW) (INCL. 27,28)
  • 24
    1821202-216 TRAILING ARM ASSY. (RIGHT/YELLOW) (INCL. 27,28)
    TRAILING ARM ASSY. (RIGHT/YELLOW) (INCL. 27,28)
  • 25
    7555820 WASHER
    WASHER
  • 26
    5132364 CUP, TRAILING ARM MOUNT
    CUP, TRAILING ARM MOUNT
  • 27
    7061042 BEARING, SPHERICAL
    BEARING, SPHERICAL
  • 28
    7710437 RING, RETAINING
    RING, RETAINING
  • 29
    7512099 BOLT
    BOLT
  • 30
    3573909 BUSHING, FLANGE
    BUSHING, FLANGE
  • 31
    7080433 ZERK, FITTING
    ZERK, FITTING
  • 32
    5433814 BUSHING, TORSION BAR
    BUSHING, TORSION BAR
  • 33
    7621452 RIVET
    RIVET
  • 34
    5245217-067 BAR, TORSION (BLACK)
    BAR, TORSION (BLACK)
  • 35
    5433885 SLIDE, TORSION BAR
    SLIDE, TORSION BAR
  • 36
    7556509 WASHER, SPECIAL
    WASHER, SPECIAL
  • 37
    3574208 BUSHING, SPINDLE HOUSING
    BUSHING, SPINDLE HOUSING
  • 38
    6230225-067 SHAFT, SPINDLE W/STEER STOP (BLACK)
    SHAFT, SPINDLE W/STEER STOP (BLACK)
  • 39
    7080306 FITTING, LUBE W/BALL CHECK
    FITTING, LUBE W/BALL CHECK
  • 40
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 41
    7547065 NUT, NYLOK
    NUT, NYLOK
  • 42
    7556213 WASHER
    WASHER
  • 43
    7517906 BOLT
    BOLT
  • 44
    7542711 NUT, JAM
    NUT, JAM
  • 45
    7061052 ROD END, RADIUS (RIGHT/LOWER)
    ROD END, RADIUS (RIGHT/LOWER)
  • 46
    7556153 WASHER
    WASHER
  • 47
    5132953 TUBE, RADIUS ROD (LOWER)
    TUBE, RADIUS ROD (LOWER)
  • 48
    7061087 ROD END, RADIUS (LEFT/LOWER)
    ROD END, RADIUS (LEFT/LOWER)
  • 49
    7517981 BOLT
    BOLT
