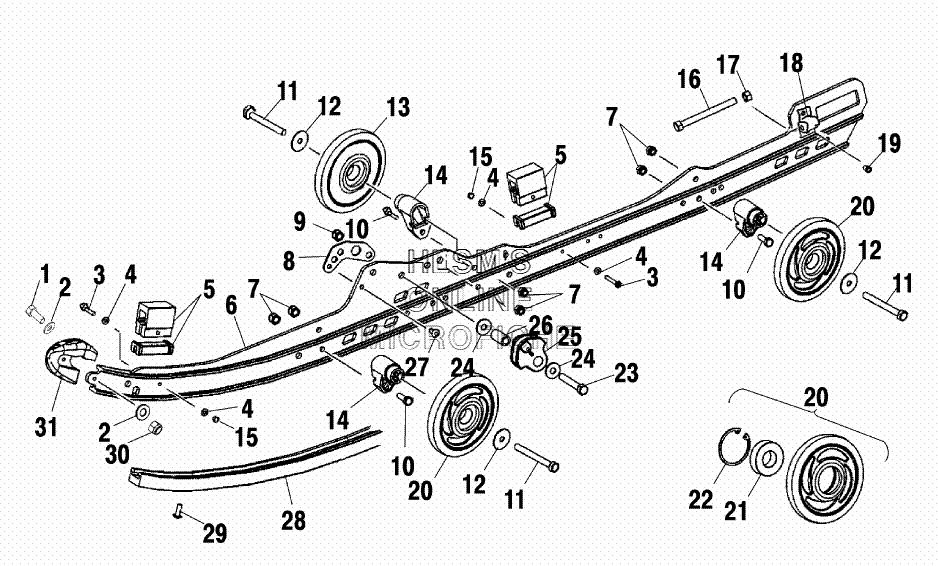

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 800 RMK F/O 156 (S02NM8CS) - 2002 года выпуска`
-
№АртикулНазвание
-
17512007 SCREWSCREW
-
27555792 WASHERWASHER
-
37510504 SCREWSCREW
-
47555783 WASHERWASHER
-
55521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
55432946 LINER, BUMPERLINER, BUMPER
-
61541658 RAIL ASSY. 156 (LEFT) (INCL. 1,2,3,4,5,6,18,19,30,31)RAIL ASSY. 156 (LEFT) (INCL. 1,2,3,4,5,6,18,19,30,31)
-
61541659 RAIL ASSY. 156 (RIGHT) (INCL. 1,2,3,4,5,6,18,19,30,31)RAIL ASSY. 156 (RIGHT) (INCL. 1,2,3,4,5,6,18,19,30,31)
-
77542324 NUTNUT
-
85245411 BRACKET, RAIL REINFBRACKET, RAIL REINF
-
97542439 NUT, NYLOKNUT, NYLOK
-
107515317 BOLTBOLT
-
117515346 BOLTBOLT
-
127556179 WASHER, SPRINGWASHER, SPRING
-
131590317 WHEEL ASSY., BOGIEWHEEL ASSY., BOGIE
-
145631065 BLOCK, WHEEL MOUNTBLOCK, WHEEL MOUNT
-
157541925 NUTNUT
-
167517227 SCREWSCREW
-
177542404 NUTNUT
-
185130530 BLOCK, IDLER BOLT ADJ.BLOCK, IDLER BOLT ADJ.
-
197621501 RIVETRIVET
-
201590318-293 WHEEL ASSY., SCROLLED (RED) (INCL. 21,22)WHEEL ASSY., SCROLLED (RED) (INCL. 21,22)
-
213514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
227718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
237515438 BOLTBOLT
-
247555983 WASHER, FLATWASHER, FLAT
-
255434334 GUIDE, SPRING SQUAREGUIDE, SPRING SQUARE
-
257661123 PIN, CLEVISPIN, CLEVIS
-
257661644 PIN, HITCHPIN, HITCH
-
265333948 SPACERSPACER
-
277661845 RIVETRIVET
-
285521581-309 HI-FAXHI-FAX
-
297515199 SCREWSCREW
-
307541925 NUTNUT
-
315434355 CAP, RAILCAP, RAIL
