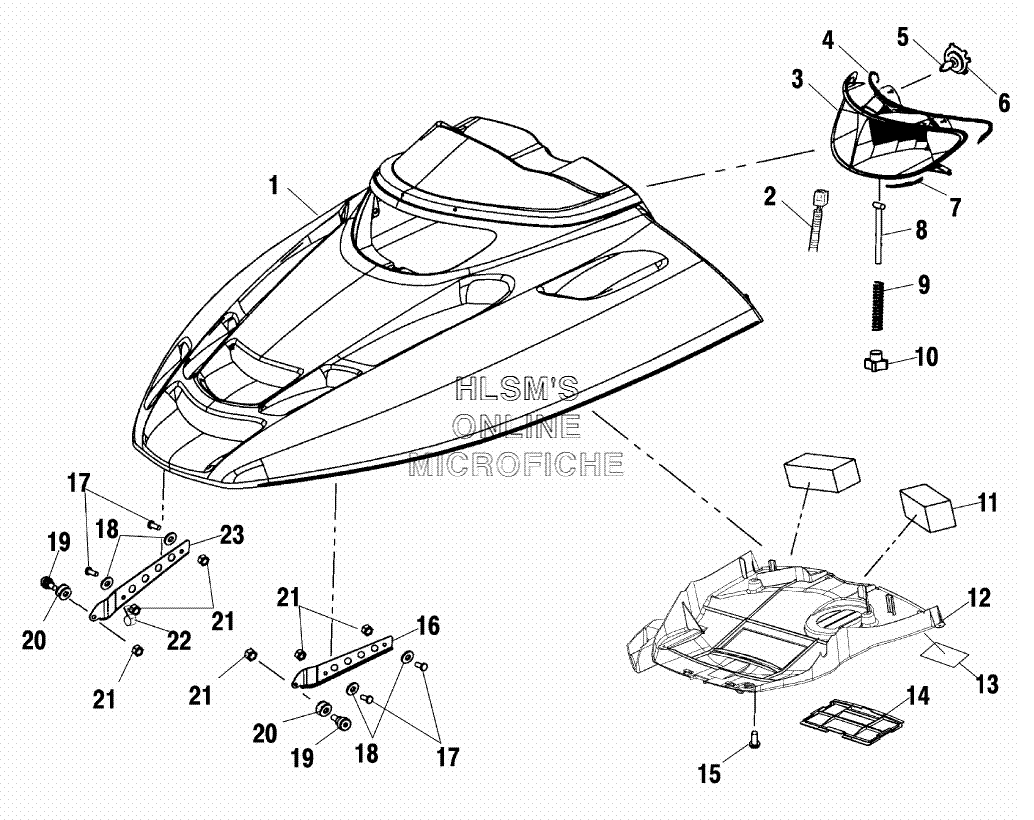

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 800 RMK F/O 156 (S02NM8CS) - 2002 года выпуска`
-
№АртикулНазвание
-
12632212-293 HOOD ASSY. (RED)HOOD ASSY. (RED)
-
12632212-177 HOOD ASSY. (BLACK)HOOD ASSY. (BLACK)
-
12632212-341 HOOD ASSY. (BLUE)HOOD ASSY. (BLUE)
-
22460791 HARNESS, HEADLGHTHARNESS, HEADLGHT
-
32410132 HEADLAMP ASSY. (INCL. BULBS)HEADLAMP ASSY. (INCL. BULBS)
-
45812175 FOAM, HEADLIGHT SEAL (TOP)FOAM, HEADLIGHT SEAL (TOP)
-
52870448 BULB, QUARTZ HEADLIGHTBULB, QUARTZ HEADLIGHT
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
75812174 FOAM, HEADLIGHT SEAL EDGE (BOTTOM)FOAM, HEADLIGHT SEAL EDGE (BOTTOM)
-
87517872 BOLT, TEE ADJUSTERBOLT, TEE ADJUSTER
-
97041954 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
107080887 KNOB, HEADLIGHT ADJUST LOCKINGBKNOB, HEADLIGHT ADJUST LOCKINGB
-
115811793 FOAM, PREFILTERFOAM, PREFILTER
-
122632491 PLENUM ASSY., FOILPLENUM ASSY., FOIL
-
125812324 FOIL, PLENUMFOIL, PLENUM
-
125811948 FOIL (4.5X1.0)FOIL (4.5X1.0)
-
137170040 DECAL, SUSPENSION SET-UPDECAL, SUSPENSION SET-UP
-
145433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
157512068 SCREWSCREW
-
165243567-067 HINGE (UPPER/LEFT/BLACK)HINGE (UPPER/LEFT/BLACK)
-
177512240 BOLTBOLT
-
187558301 WASHERWASHER
-
197512113 SCREWSCREW
-
205332403 SPACER, HINGESPACER, HINGE
-
217542122 NUT, LOCKNUT, LOCK
-
227080367 CLAMP, CABLECLAMP, CABLE
-
235243568-067 HINGE (UPPER/RIGHT/BLACK)HINGE (UPPER/RIGHT/BLACK)
