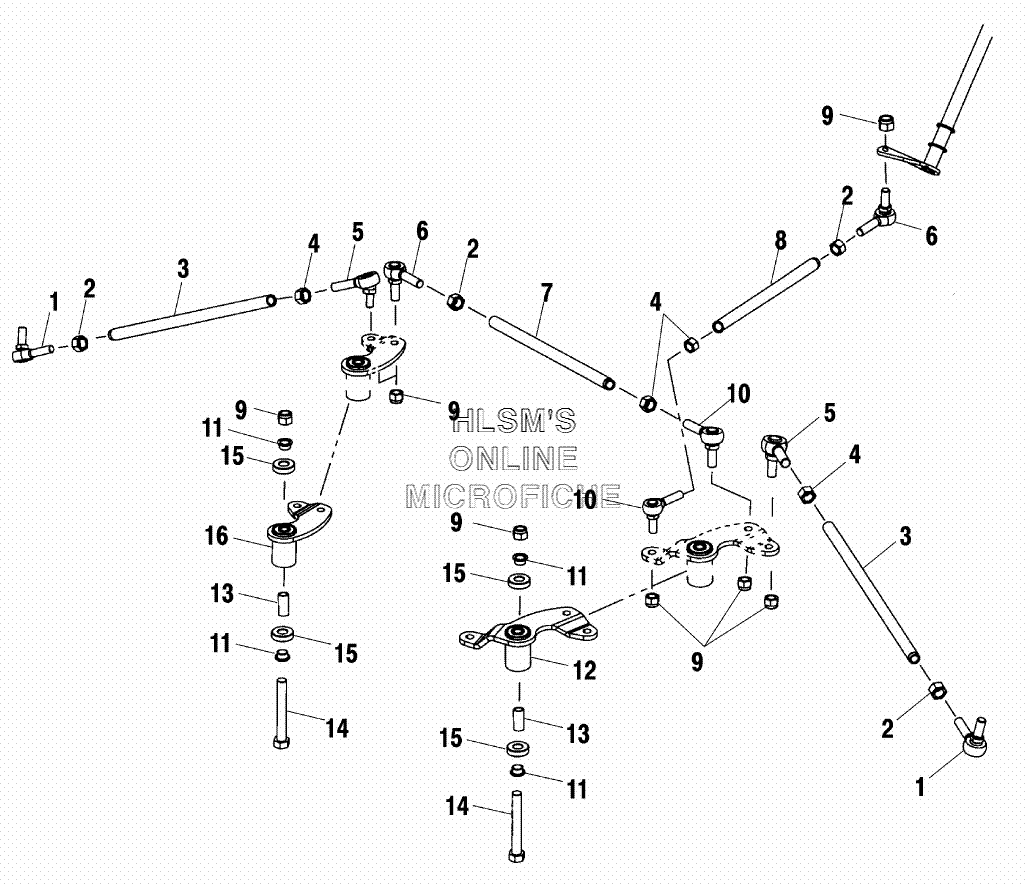

STEERING LINKAGE для Polaris 800 RMK F/O 156 (S02NM8CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7061086 ROD, END (RIGHT)
    ROD, END (RIGHT)
  • 2
    7542401 NUT, HEX
    NUT, HEX
  • 3
    5333937 ROD, TIE ROD
    ROD, TIE ROD
  • 4
    7542424 NUT
    NUT
  • 5
    7061085 ROD, END (LEFT)
    ROD, END (LEFT)
  • 6
    7061076 ROD, END (RIGHT)
    ROD, END (RIGHT)
  • 7
    5333772 STEERING, ROD RACK
    STEERING, ROD RACK
  • 8
    5333773-067 ROD-DRAGLINK (BLACK)
    ROD-DRAGLINK (BLACK)
  • 9
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 10
    7061075 ROD END (LEFT)
    ROD END (LEFT)
  • 11
    5132106 BUSHING, REDUCER
    BUSHING, REDUCER
  • 12
    1820957 PITMAN ARM (INCL. 11,13,15)
    PITMAN ARM (INCL. 11,13,15)
  • 13
    5133368 SPACER, TUBE PITMAN/IDLER ARMS
    SPACER, TUBE PITMAN/IDLER ARMS
  • 14
    7512435 BOLT
    BOLT
  • 15
    3514320 BEARING, BALL
    BEARING, BALL
  • 16
    1820959 IDLER ARM ASSY. (INCL. 11,13,15)
    IDLER ARM ASSY. (INCL. 11,13,15)
