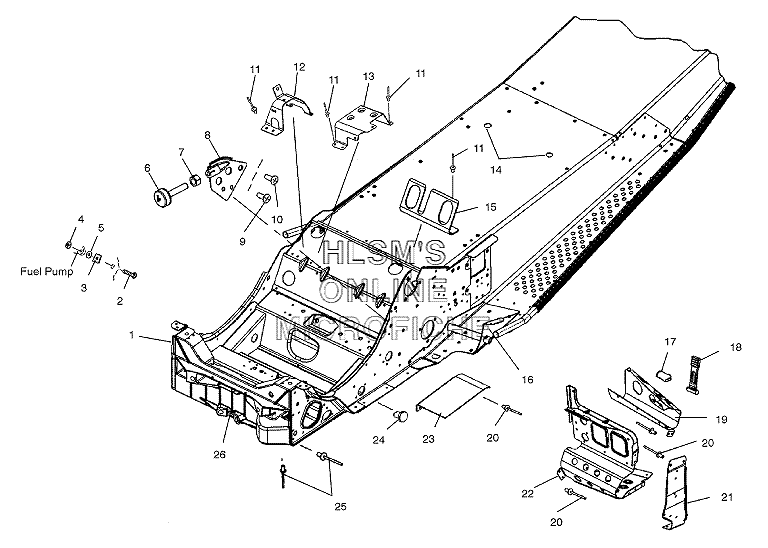

FRAME - CHASSIS - FRONT для Polaris 800 RMK F/O 156 (S02NM8CS) - 2002 года выпуска
-
№АртикулНазвание
-
11013581-309 CHASSIS ASSY.CHASSIS ASSY.
-
27512275 BOLT, CARRIAGEBOLT, CARRIAGE
-
37670021 SPEED, NUTSPEED, NUT
-
47542122 NUT, LOCKNUT, LOCK
-
57555932 WASHER, NYLONWASHER, NYLON
-
63110078 STOP, TORQUESTOP, TORQUE
-
77542404 NUTNUT
-
81013377 WELD, TORQUE STOPWELD, TORQUE STOP
-
97517854 SCREWSCREW
-
107517632 SCREWSCREW
-
117621432 RIVETRIVET
-
125245003 BRACKET, JACKSHAFTBRACKET, JACKSHAFT
-
135245202 BRACKET, OIL BOTTLEBRACKET, OIL BOTTLE
-
147080592 CAPLUGCAPLUG
-
155245725 BRACKET, AIRBOXBRACKET, AIRBOX
-
162202059 MOUNT KIT, TRAILING ARM (LEFT)MOUNT KIT, TRAILING ARM (LEFT)
-
162202060 MOUNT KIT, TRAILING ARM (RIGHT)MOUNT KIT, TRAILING ARM (RIGHT)
-
175521238 EXTRUSION, CLUTCH GUARDEXTRUSION, CLUTCH GUARD
-
185433150 STRAP, RUBBERSTRAP, RUBBER
-
195245457 MOUNT, CONSOLE TOE CLIP (LEFT)MOUNT, CONSOLE TOE CLIP (LEFT)
-
195245458 MOUNT, CONSOLE TOE CLIP (RIGHT)MOUNT, CONSOLE TOE CLIP (RIGHT)
-
207661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
215242741 SUPPORT, FOOTREST (LEFT)SUPPORT, FOOTREST (LEFT)
-
215242742 SUPPORT, FOOTREST (RIGHT)SUPPORT, FOOTREST (RIGHT)
-
225245288 FOOTREST (LEFT)FOOTREST (LEFT)
-
225242740 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
235221583 GUARD, ADAPTER DRIVEGUARD, ADAPTER DRIVE
-
247080416 PLUG, HOLEPLUG, HOLE
-
257661639 RIVETRIVET
-
265132292 BULKHEAD, FRONTBULKHEAD, FRONT
