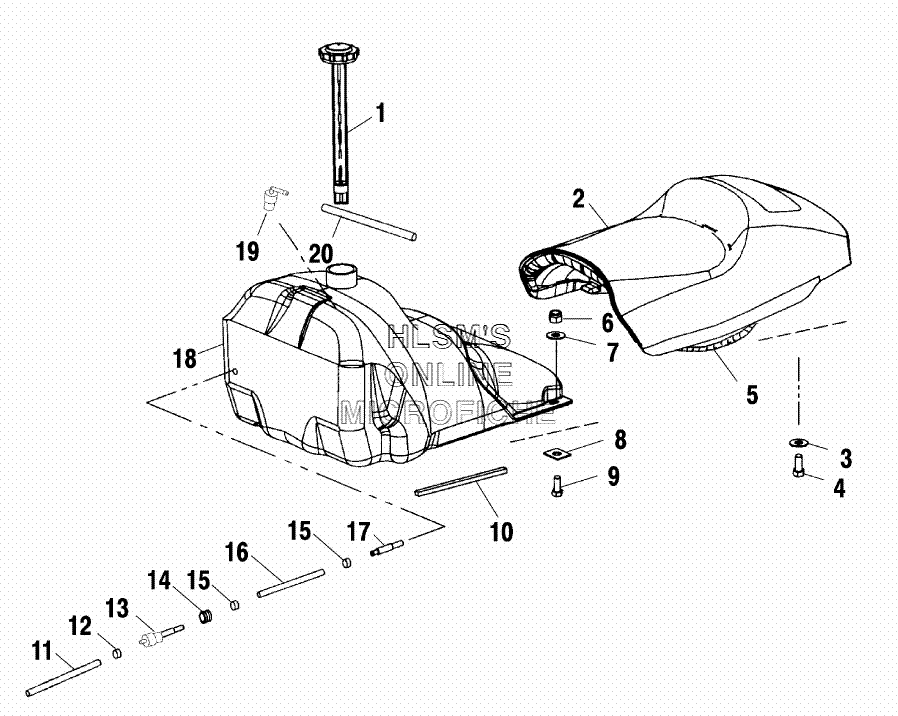

SEAT W/ GAS TANK ASSEMBLY для Polaris 800 RMK F/O 156 (S02NM8CS) - 2002 года выпуска
-
№АртикулНазвание
-
11240066 CAP, FUEL 12.5 W/GAUGECAP, FUEL 12.5 W/GAUGE
-
22682710 SEAT ASSY. (RED) (INCL. 2,5)SEAT ASSY. (RED) (INCL. 2,5)
-
22682822 SEAT COVER ASSY. (RED)SEAT COVER ASSY. (RED)
-
22682827 SEAT ASSY. (BLACK) (INCL. 2,5)SEAT ASSY. (BLACK) (INCL. 2,5)
-
22682828 SEAT COVER ASSY. (BLACK)SEAT COVER ASSY. (BLACK)
-
22682778 SEAT ASSY. (BLUE) (INCL. 2,5)SEAT ASSY. (BLUE) (INCL. 2,5)
-
22682779 SEAT COVER ASSY. (BLUE)SEAT COVER ASSY. (BLUE)
-
37558301 WASHERWASHER
-
47517219 SCREWSCREW
-
52460935 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
67542122 NUT, LOCKNUT, LOCK
-
77555960 WASHERWASHER
-
87670021 SPEED, NUTSPEED, NUT
-
97512193 BOLTBOLT
-
105810947 SEAL, FOAM COOLER (RIGHT)SEAL, FOAM COOLER (RIGHT)
-
118350017-600 FUEL, LINE ETHER RED 5/16''FUEL, LINE ETHER RED 5/16''
-
127080003 CLAMP, HOSECLAMP, HOSE
-
137052269 FITTING, STRAIGHTFITTING, STRAIGHT
-
145432981 GROMMETGROMMET
-
157080768 RING, COMPRESSIONRING, COMPRESSION
-
168350020-600 FUEL, LINE ETHER 3/8''FUEL, LINE ETHER 3/8''
-
177052215 PICK-UP, FUEL W/MESHPICK-UP, FUEL W/MESH
-
182520262 FUEL TANK ASSY.FUEL TANK ASSY.
-
197052095 FITTINGFITTING
-
208450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
