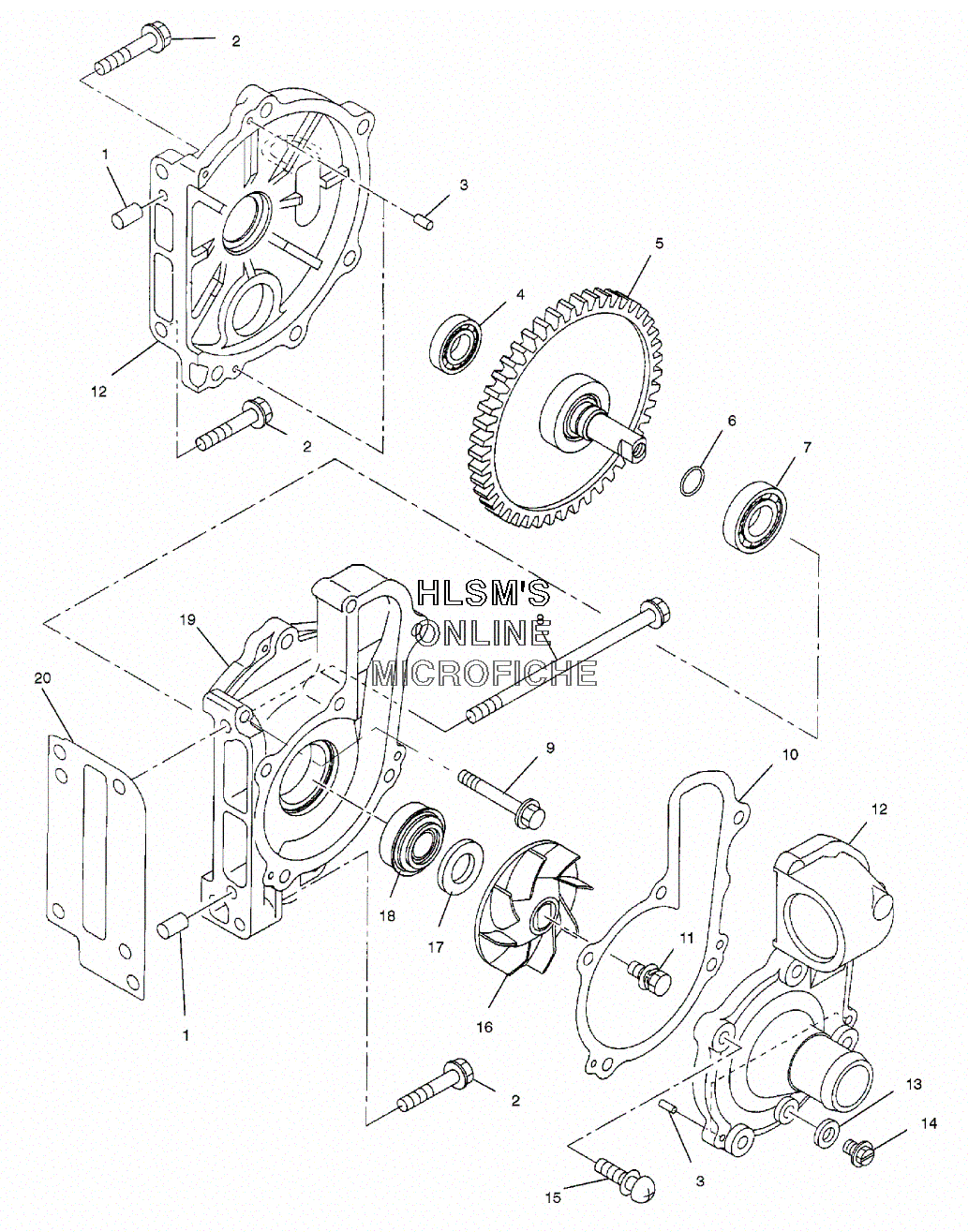

WATER PUMP для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3080103 PIN, DOWEL
    PIN, DOWEL
  • 2
    3085295 BOLT, FLANGE
    BOLT, FLANGE
  • 3
    3084721 PIN, DOWEL
    PIN, DOWEL
  • 4
    3085286 BEARING, BALL
    BEARING, BALL
  • 5
    3085269 SHAFT, WATER PUMP
    SHAFT, WATER PUMP
  • 6
    3085149 O-RING (WATER PUMP SHAFT)
    O-RING (WATER PUMP SHAFT)
  • 7
    3085145 BALLBEARING
    BALLBEARING
  • 8
    3085272 BOLT, FLANGE
    BOLT, FLANGE
  • 9
    3085470 BOLT AND WASHER
    BOLT AND WASHER
  • 10
    3085794 GASKET, PUMP CASING 1
    GASKET, PUMP CASING 1
  • 11
    3085270 BOLT
    BOLT
  • 12
    3085791 PUMP ASSY, WATER (INCL. 1, 3-7, 9-11, 15-18)
    PUMP ASSY, WATER (INCL. 1, 3-7, 9-11, 15-18)
  • 12
    3085792 ASSY, WATER PUMP (INCL. 3)
    ASSY, WATER PUMP (INCL. 3)
  • 13
    3082758 WASHER, FLAT
    WASHER, FLAT
  • 14
    3083350 PLUG, AIR VENT
    PLUG, AIR VENT
  • 15
    3084221 SCREW AND WASHER ASSY.
    SCREW AND WASHER ASSY.
  • 16
    3085174 IMPELLER UNIT
    IMPELLER UNIT
  • 17
    3085175 PLATE, SEALING
    PLATE, SEALING
  • 18
    3085384 SEAL, MECHANICAL
    SEAL, MECHANICAL
  • 19
    3085793 ASSY, WATER PUMP (INCL. 1, 3, 4, 7, 18)
    ASSY, WATER PUMP (INCL. 1, 3, 4, 7, 18)
