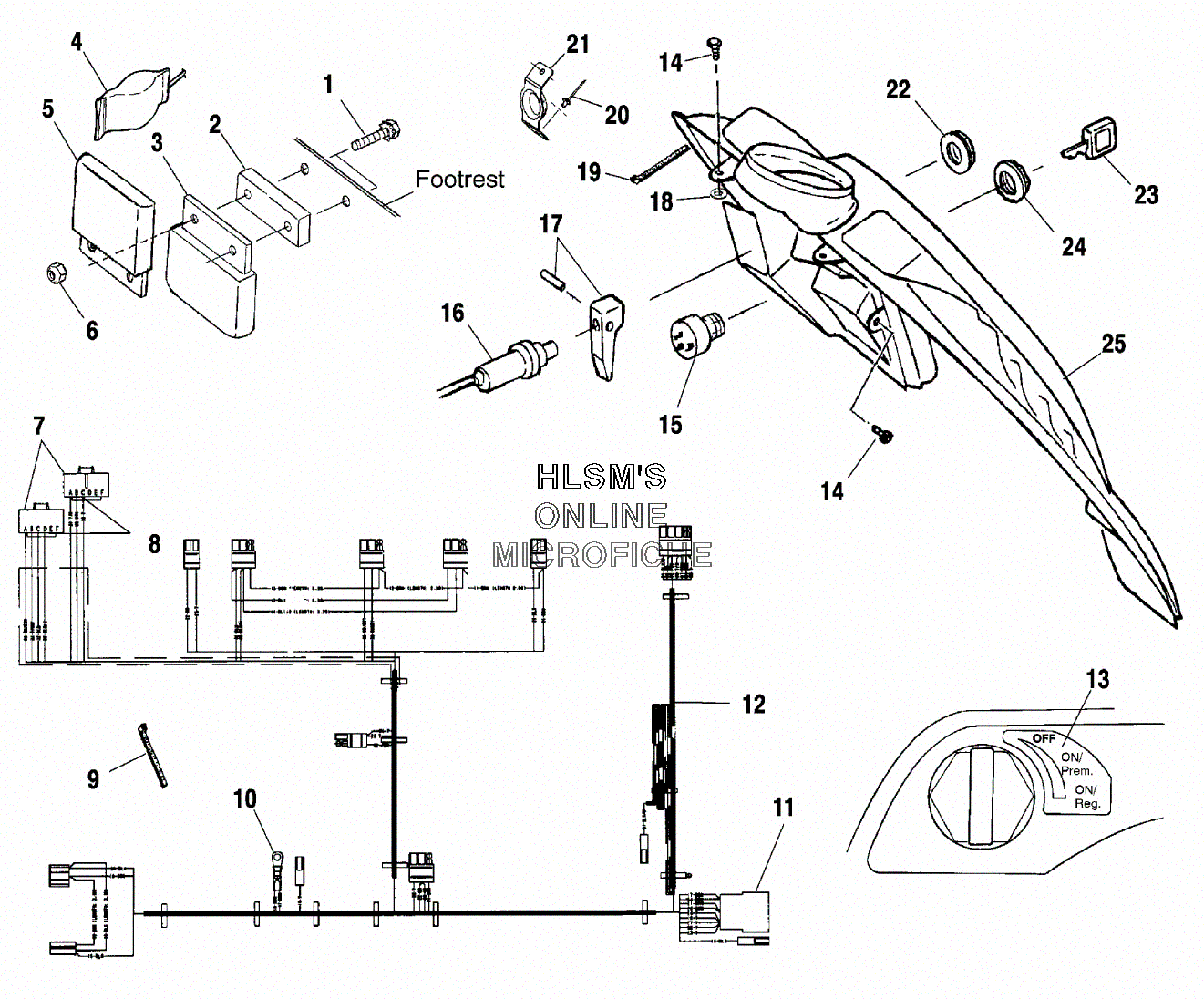

CONSOLE для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7512031 BOLT
    BOLT
  • 2
    5211573 SPACER, REGULATOR
    SPACER, REGULATOR
  • 3
    4060123 REGULATOR, (14.3VAC) LR-7
    REGULATOR, (14.3VAC) LR-7
  • 4
    4010143 CAPACITOR, ELECSHK.
    CAPACITOR, ELECSHK.
  • 5
    4010142 MODULE, CONTROL, ELECSHK.
    MODULE, CONTROL, ELECSHK.
  • 6
    7541925 NUT
    NUT
  • 7
    4010193 HOUSING, CONNECTOR, PAC#12186213
    HOUSING, CONNECTOR, PAC#12186213
  • 8
    4010192 SOCKET, PACKARD #12047767
    SOCKET, PACKARD #12047767
  • 9
    7080138 STRAP PANDUIT
    STRAP PANDUIT
  • 10
    4020092 TERMINAL, RING
    TERMINAL, RING
  • 11
    4020057 HOUSING W/RECEPTACLE
    HOUSING W/RECEPTACLE
  • 12
    2460838 HARNESS, MAIN WIRE, HI LVL
    HARNESS, MAIN WIRE, HI LVL
  • 13
    7078039 DECAL, IGNITION, OFF/PREM/REG
    DECAL, IGNITION, OFF/PREM/REG
  • 14
    7515199 SCREW
    SCREW
  • 15
    2201614 IGNITION SWITCH ES FUEL KIT
    IGNITION SWITCH ES FUEL KIT
  • 16
    7080734 CABLE, CHOKE SINGLE, PULL (INCL. 17, 22)
    CABLE, CHOKE SINGLE, PULL (INCL. 17, 22)
  • 17
    2201439 CHOKE LEVER KIT
    CHOKE LEVER KIT
  • 18
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 19
    7080804 CABLE TIE, RELEASABLE 5 1/2''
    CABLE TIE, RELEASABLE 5 1/2''
  • 20
    7621330 RIVET, POP
    RIVET, POP
  • 21
    5243049 GUIDE, RECOIL
    GUIDE, RECOIL
  • 22
    5432944 NUT, CHOKE
    NUT, CHOKE
  • 23
    5410611 NUT, IGNITION
    NUT, IGNITION
  • 25
    5432906 CONSOLE, HYBRID, BLK
    CONSOLE, HYBRID, BLK
