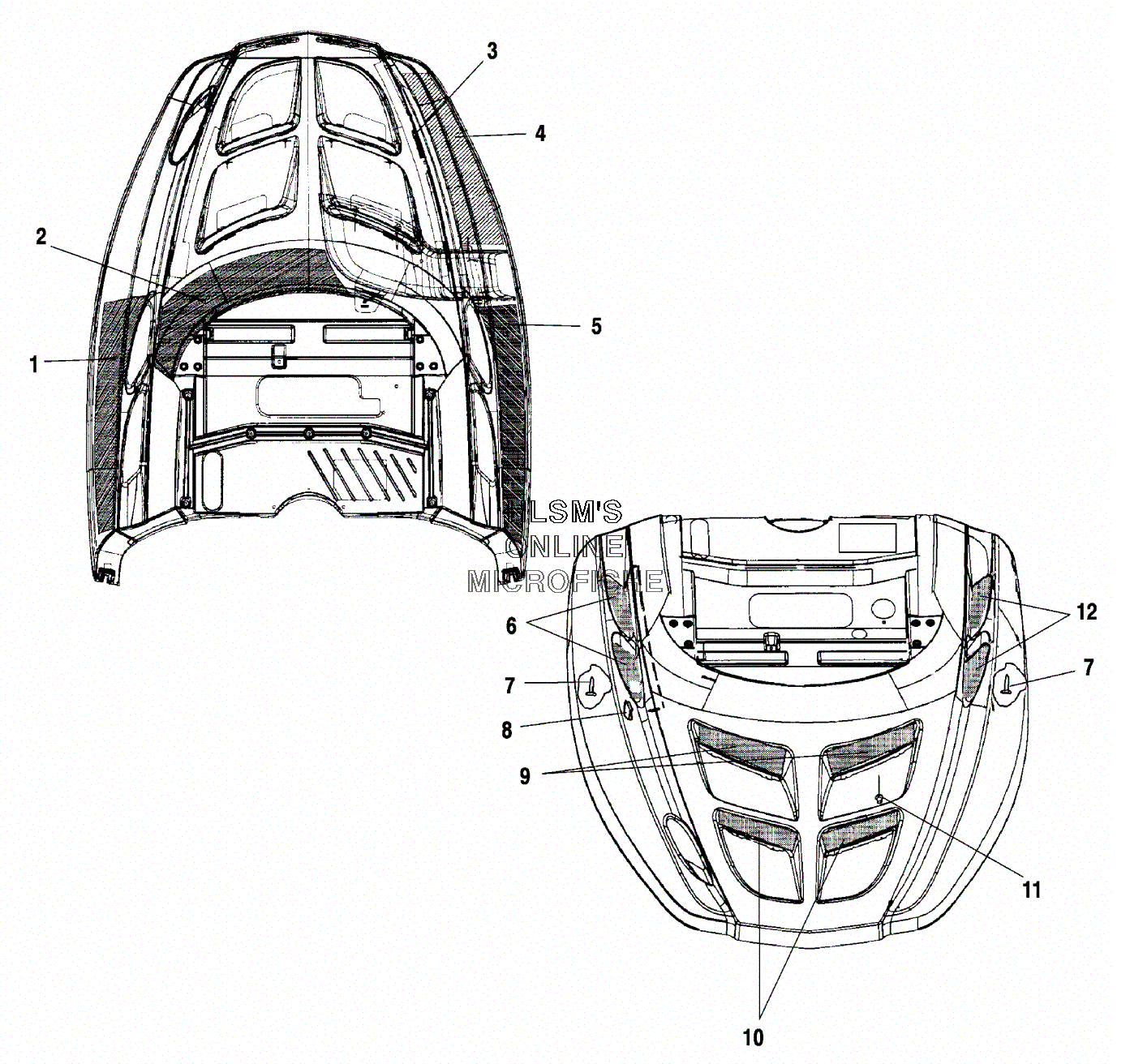

HOOD - FOAM/FOIL для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    5812009 FOIL, HEATSHIELD HOOD
    FOIL, HEATSHIELD HOOD
  • 2
    5811846 FOAM, HOOD (CENTER)
    FOAM, HOOD (CENTER)
  • 3
    5811703 FOIL, HOOD TAB, REINF
    FOIL, HOOD TAB, REINF
  • 4
    5811883 FOIL, SIDE (LEFT/FRONT)
    FOIL, SIDE (LEFT/FRONT)
  • 5
    5811813 FOAM-HOOD (LEFT)
    FOAM-HOOD (LEFT)
  • 6
    5242858-067 SCREEN, HOOD (BLACK/RIGHT)
    SCREEN, HOOD (BLACK/RIGHT)
  • 7
    7511864 BOLT
    BOLT
  • 8
    7670040 CLIP-U TYPE
    CLIP-U TYPE
  • 9
    5243108-067 SCREEN, HOOD (FRONTUPPER/LEFT/BLACK)
    SCREEN, HOOD (FRONTUPPER/LEFT/BLACK)
  • 9
    5243109-067 SCREEN, HOOD (FRONT/UPPER/RIGHT/BLACK)
    SCREEN, HOOD (FRONT/UPPER/RIGHT/BLACK)
  • 10
    5244180-067 SCREEN-HOOD (FRONT/LOWER/LEFT/BLACK)
    SCREEN-HOOD (FRONT/LOWER/LEFT/BLACK)
  • 10
    5243111-067 SCREEN-HOOD (FRONT/LOWER/LEFT/BLACK)
    SCREEN-HOOD (FRONT/LOWER/LEFT/BLACK)
  • 11
    7621334 RIVET
    RIVET
  • 12
    5242857-067 SCREEN, HOOD (LEFT/BLACK)
    SCREEN, HOOD (LEFT/BLACK)
