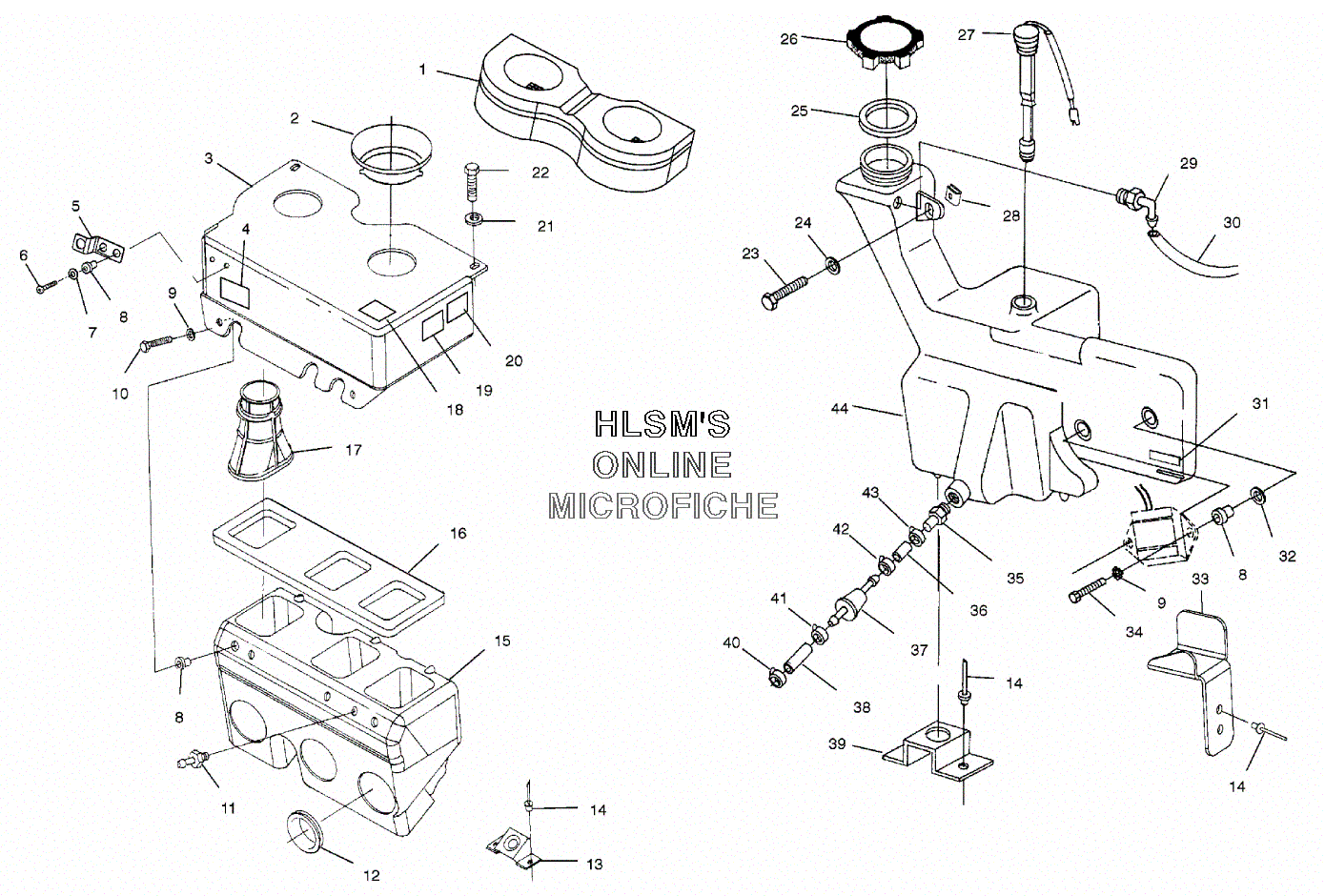

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1253382 ASSY, FOAM INTAKE TRIPLE
    ASSY, FOAM INTAKE TRIPLE
  • 2
    5410834 INLET, PLENUM
    INLET, PLENUM
  • 3
    5433989 PLENUM, SILENCER, XCR
    PLENUM, SILENCER, XCR
  • 4
    7078194 DECAL, FUEL SHUT OFF
    DECAL, FUEL SHUT OFF
  • 5
    5243225 BRAKE, FUEL SHUT OFF
    BRAKE, FUEL SHUT OFF
  • 6
    7517376 SCREW
    SCREW
  • 7
    7555843 WASHER, WROUGHT
    WASHER, WROUGHT
  • 8
    7541923 NUT, WELL
    NUT, WELL
  • 9
    7552604 WASHER
    WASHER
  • 10
    7517377 SCREW
    SCREW
  • 11
    7052127 FITTING, HOSE
    FITTING, HOSE
  • 12
    5411423 BOOT, CARB/AIRBOX, 38MM
    BOOT, CARB/AIRBOX, 38MM
  • 13
    5242892 BRACKET, AIRBOX, COINED/SLOT
    BRACKET, AIRBOX, COINED/SLOT
  • 14
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 15
    5432936 AIRBOX, BOTTOM
    AIRBOX, BOTTOM
  • 16
    5810946 SEAL, PLENUM
    SEAL, PLENUM
  • 17
    5411047 BOOT, CONE SILENCER, OUTLET
    BOOT, CONE SILENCER, OUTLET
  • 18
    7075351 DECAL, CAUTION AIRBOX
    DECAL, CAUTION AIRBOX
  • 19
    7073820 DECAL, ADJUST, DRIVEN CLUTCH
    DECAL, ADJUST, DRIVEN CLUTCH
  • 20
    7073426 DECAL, GREASING
    DECAL, GREASING
  • 21
    7555960 WASHER
    WASHER
  • 22
    7517685 SCREW
    SCREW
  • 23
    7512276 BOLT
    BOLT
  • 24
    7558301 WASHER
    WASHER
  • 25
    5810141 GASKET, OIL CAP
    GASKET, OIL CAP
  • 26
    5430779 CAP, OIL TANK
    CAP, OIL TANK
  • 27
    4110134 SENSOR, OIL LEVEL
    SENSOR, OIL LEVEL
  • 28
    7670096 NUT
    NUT
  • 29
    7052095 FITTING, 90 DEG, 1/8,
    FITTING, 90 DEG, 1/8,
  • 30
    8450061-600 FUELLINE, 3MMX7MM
    FUELLINE, 3MMX7MM
  • 31
    7074664 DECAL, LOW OIL LEVEL
    DECAL, LOW OIL LEVEL
  • 32
    7558707 BUSHING, MACH
    BUSHING, MACH
  • 33
    5243770 BRACKET, OIL TANK
    BRACKET, OIL TANK
  • 34
    7512222 SCREW
    SCREW
  • 35
    7052110 FITTING, 3/8 OUTLET
    FITTING, 3/8 OUTLET
  • 36
    5411131 LINE, OIL (3/8''-1/4'')
    LINE, OIL (3/8''-1/4'')
  • 37
    2530009 FILTER, SMALL, IN-LINE,
    FILTER, SMALL, IN-LINE,
  • 38
    8450003-1525 FUEL LINE, 1/4 ID (1525 CM.)
    FUEL LINE, 1/4 ID (1525 CM.)
  • 39
    5241330 BRACKET, OILTANK, COINED
    BRACKET, OILTANK, COINED
  • 40
    7080236 CLAMP-HOSE,
    CLAMP-HOSE,
  • 41
    7080307 CLAMP
    CLAMP
  • 42
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 43
    7080544 CLAMP, HOSE
    CLAMP, HOSE
  • 44
    5432825 TANK, OIL W/SEND. UNIT HOLE
    TANK, OIL W/SEND. UNIT HOLE
