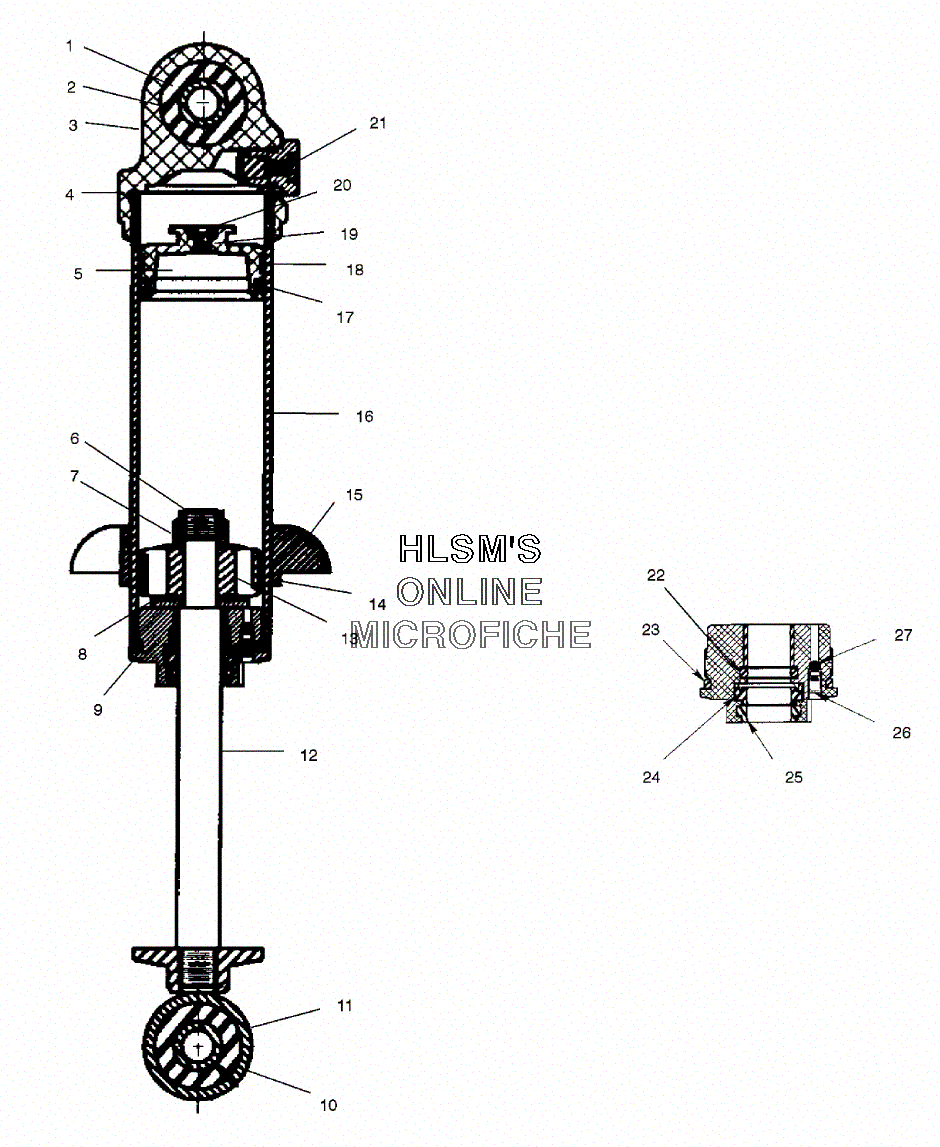

SUSPENSION - FOX SHOCK - FRONT TRACK для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска
-
№АртикулНазвание
-
227041951 SHOCK TRK, IFP (FRONT)SHOCK TRK, IFP (FRONT)
-
11500137 BUSHING, EYELETBUSHING, EYELET
-
25020640 BUSHING (1.24)BUSHING (1.24)
-
31500183 BODY-CAP, LOW PROFILEBODY-CAP, LOW PROFILE
-
41500108 O-RINGO-RING
-
51500187 PISTON, FLOATINGPISTON, FLOATING
-
61500016 NUT, LOCKNUT, LOCK
-
71500015 BUSHING, BACKUPBUSHING, BACKUP
-
81500017 PLATE (OUTER/TOP)PLATE (OUTER/TOP)
-
91500265 BEARING ASSY.498DIA, 812-03-006BEARING ASSY.498DIA, 812-03-006
-
101500184 BUSHING-EYELET.35X.575X.595FOXBUSHING-EYELET.35X.575X.595FOX
-
111500164 EYELET, BASEEYELET, BASE
-
121500153 SHAFTSHAFT
-
132200618 VALV. PISTON, KITVALV. PISTON, KIT
-
141500002 DAMPER, PISTONRINGDAMPER, PISTONRING
-
151500194 RING, SPRING, PRELOADRING, SPRING, PRELOAD
-
161500299 BODY, 5.3TLGX4.5TH204-04-030BODY, 5.3TLGX4.5TH204-04-030
-
171500003 O-RING, ENDCAPO-RING, ENDCAP
-
181500006 RING, PISTON, FLOATINGRING, PISTON, FLOATING
-
191500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
201500161 SCREW/O-RING ASSY.SCREW/O-RING ASSY.
-
211500019 SCREWSCREW
-
221500021 O-RING INNERO-RING INNER
-
231500020 O-RINGO-RING
-
241500025 U-CUP, URETHU-CUP, URETH
-
251500024 WIPER, CLR (OUTER)WIPER, CLR (OUTER)
-
261500070 SCREWSCREW
-
271500071 BALLBALL
