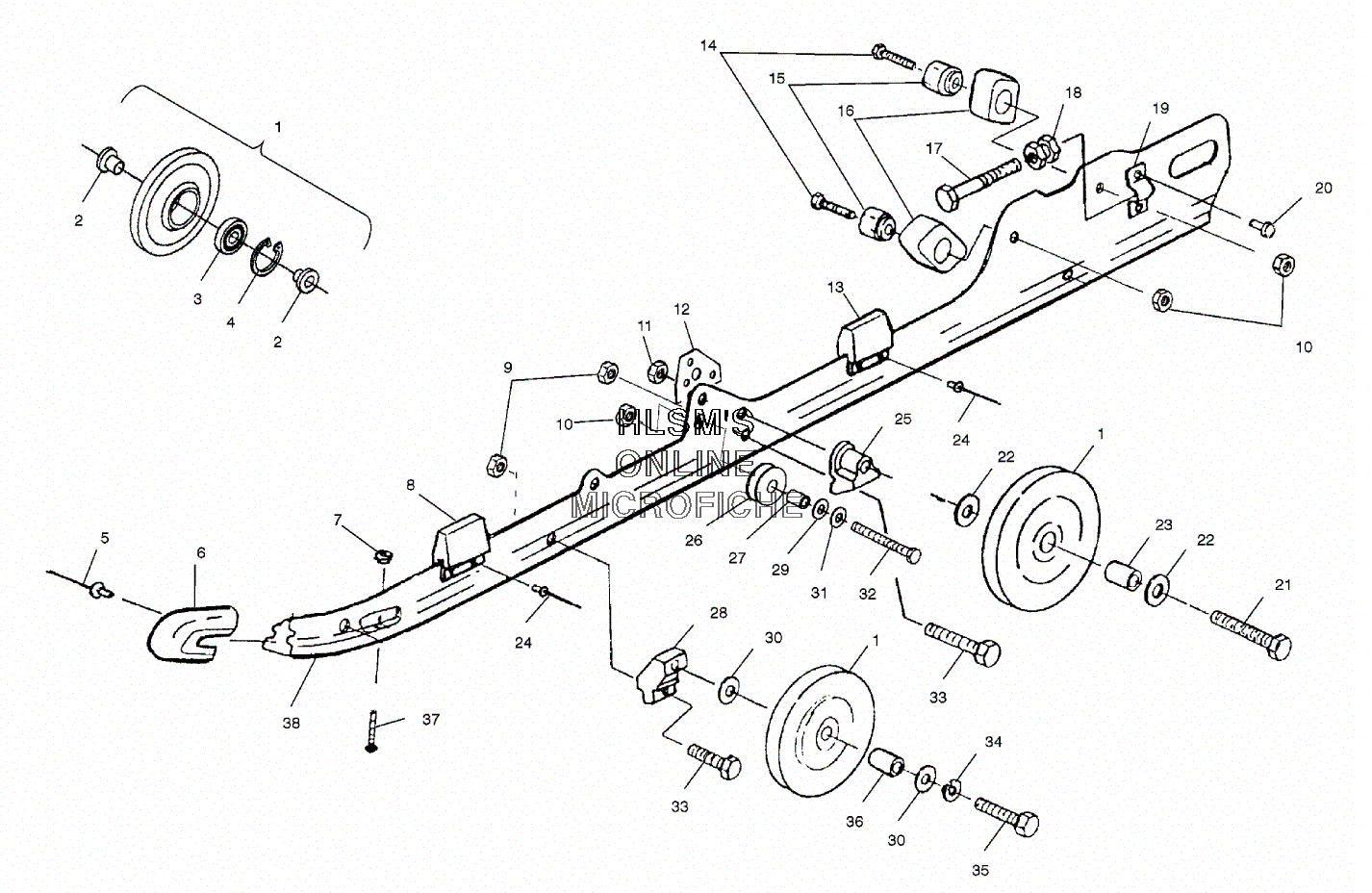

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1594082-293 WHEEL, SCROLL BOGIE INDYRED (INCL. 2-4)
    WHEEL, SCROLL BOGIE INDYRED (INCL. 2-4)
  • 2
    5431531 INSERT, WHEEL (2 PER WHEEL)
    INSERT, WHEEL (2 PER WHEEL)
  • 3
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 4
    7718407 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 5
    7621435 RIVET
    RIVET
  • 6
    5433005 COVER, RAIL TIP
    COVER, RAIL TIP
  • 7
    7542122 NUT, LOCK
    NUT, LOCK
  • 8
    5810554 BUMPER, RAIL
    BUMPER, RAIL
  • 8
    5222629 REINF., BUMPER
    REINF., BUMPER
  • 9
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 10
    7542411 NUT FLEXLOC
    NUT FLEXLOC
  • 11
    7542525 NUT, NYLOCK
    NUT, NYLOCK
  • 12
    5211790 BRACKET, RAIL, REINF
    BRACKET, RAIL, REINF
  • 13
    5811097 BUMPER, SUSPENSION
    BUMPER, SUSPENSION
  • 13
    5222629 REINF., BUMPER
    REINF., BUMPER
  • 14
    7515545 BOLT
    BOLT
  • 15
    5131113 MOUNT, BUMPER PIVOT ARM (FRONT)
    MOUNT, BUMPER PIVOT ARM (FRONT)
  • 16
    5410925 BUMPER, PIVOT ARM (FRONT)
    BUMPER, PIVOT ARM (FRONT)
  • 17
    7515455 BOLT, ADJUSTER
    BOLT, ADJUSTER
  • 18
    5020943 NUT, TENSIONER ADJUST
    NUT, TENSIONER ADJUST
  • 19
    5130530 BLOCK-IDLER BOLT ADJUST
    BLOCK-IDLER BOLT ADJUST
  • 20
    7621501 RIVET
    RIVET
  • 21
    7512538 BOLT
    BOLT
  • 22
    7555852 WASHER, FLAT
    WASHER, FLAT
  • 23
    5333116 SPACER, WHEEL
    SPACER, WHEEL
  • 24
    7621476 RIVET
    RIVET
  • 25
    5630399 SPACER
    SPACER
  • 26
    5432982 ROLLER, SPRING, SQUARE
    ROLLER, SPRING, SQUARE
  • 27
    5332787 SPACER
    SPACER
  • 28
    5130570 BRACKET, BOGIE WHEEL
    BRACKET, BOGIE WHEEL
  • 29
    7555806 WASHER
    WASHER
  • 30
    7555804 WASHER
    WASHER
  • 31
    7555976 WASHER
    WASHER
  • 32
    7515433 BOLT
    BOLT
  • 33
    7512404 BOLT
    BOLT
  • 34
    7553201 LOCK WASHER
    LOCK WASHER
  • 35
    7512659 BOLT
    BOLT
  • 36
    5332786 SPACER
    SPACER
  • 37
    7515175 BOLT
    BOLT
  • 38
    1541336 RAIL, 121 (INCL. 6, 8, 13, 16, 19) (LEFT)
    RAIL, 121 (INCL. 6, 8, 13, 16, 19) (LEFT)
  • 38
    1541337 RAIL, 121 (INCL. 6, 8, 13, 16, 19) (RIGHT)
    RAIL, 121 (INCL. 6, 8, 13, 16, 19) (RIGHT)
