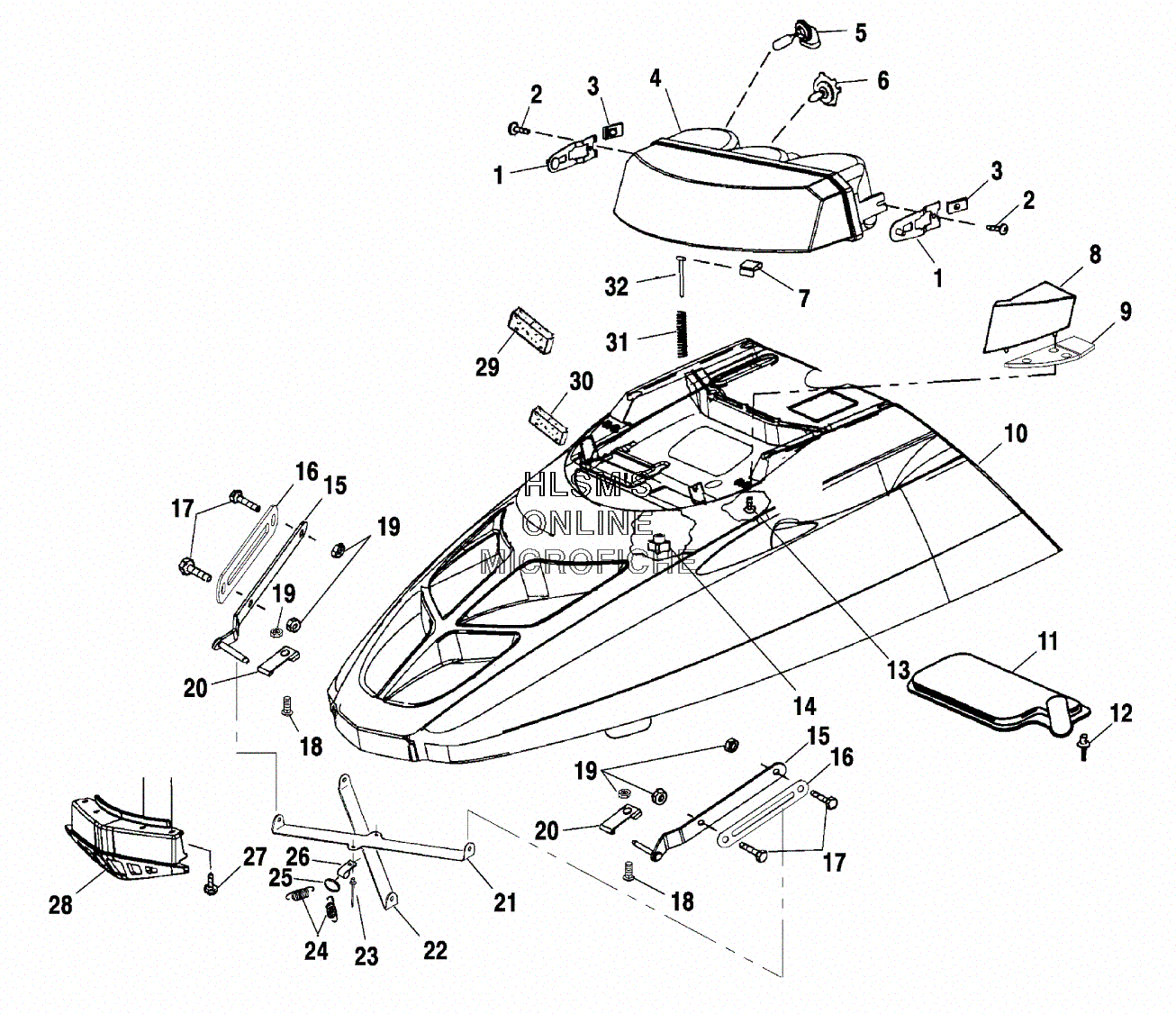

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска
-
№АртикулНазвание
-
11011944-067 MOUNT, WELD HEADLIGHTSMOUNT, WELD HEADLIGHTS
-
27515107 BOLTBOLT
-
37670057 NUT, SPEEDNUT, SPEED
-
42433016 ASSY, HEADLAMP, THREE BULB (INCL. BULBS)ASSY, HEADLAMP, THREE BULB (INCL. BULBS)
-
54010253 BULB, HEADLIGHT, 50 WATTBULB, HEADLIGHT, 50 WATT
-
62870448 BULB, QUARTZ. INDY (HEADLIGHTS)BULB, QUARTZ. INDY (HEADLIGHTS)
-
77670040 CLIP-U TYPECLIP-U TYPE
-
85431855 LENS, CLR.REFLECTOR (LEFT)LENS, CLR.REFLECTOR (LEFT)
-
85431856 LENS, CLR.REFLECTOR (RIGHT)LENS, CLR.REFLECTOR (RIGHT)
-
95811907 SEAL, REFLECTOR, SRPSEAL, REFLECTOR, SRP
-
102632294-177 HOOD, TRP, SVC, W/O SCR (INCL. FOAM/FOIL) (BLACK)HOOD, TRP, SVC, W/O SCR (INCL. FOAM/FOIL) (BLACK)
-
115433723 COVER, ACCESS, HEADLIGHT, SRPCOVER, ACCESS, HEADLIGHT, SRP
-
127621509 RIVET, PLASTI, LOC.RIVET, PLASTI, LOC.
-
137511953 SCREWSCREW
-
147080887 KNOB, HEADLIGHT ADJUST LOCKINGBKNOB, HEADLIGHT ADJUST LOCKINGB
-
151012750 HINGE (LEFT/ UPPER)HINGE (LEFT/ UPPER)
-
151012751 HINGE (RIGHT/UPPER)HINGE (RIGHT/UPPER)
-
165242948 PLATE, BOLTPLATE, BOLT
-
177515184 BOLTBOLT
-
187512193 BOLTBOLT
-
197542122 NUT, LOCKNUT, LOCK
-
205244395 PLATE, HINGE (LOWER)PLATE, HINGE (LOWER)
-
215242945 BRACE, HOOD (UPPER)BRACE, HOOD (UPPER)
-
225242946 BRACE, HOOD (LOWER)BRACE, HOOD (LOWER)
-
237661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
247041732 SPRING-EXT.SPRING-EXT.
-
257041760 SPRING, ATTACHMENT RINGSPRING, ATTACHMENT RING
-
267080372 CLAMP, RETAINERCLAMP, RETAINER
-
277517441 SCREWSCREW
-
285432931 SCREEN, HYB (FRONT)SCREEN, HYB (FRONT)
-
295811886 FOAM, HEADLIGHT SEAL, W/PSA SRPFOAM, HEADLIGHT SEAL, W/PSA SRP
-
305811822 FOAM, HEADLIGHT/POD SEAL SRPFOAM, HEADLIGHT/POD SEAL SRP
-
317041308 SPRING, HEADLIGHTS ADJUSTSPRING, HEADLIGHTS ADJUST
-
327517746 BOLT, TEE ADJUSTER, 2.25BOLT, TEE ADJUSTER, 2.25
