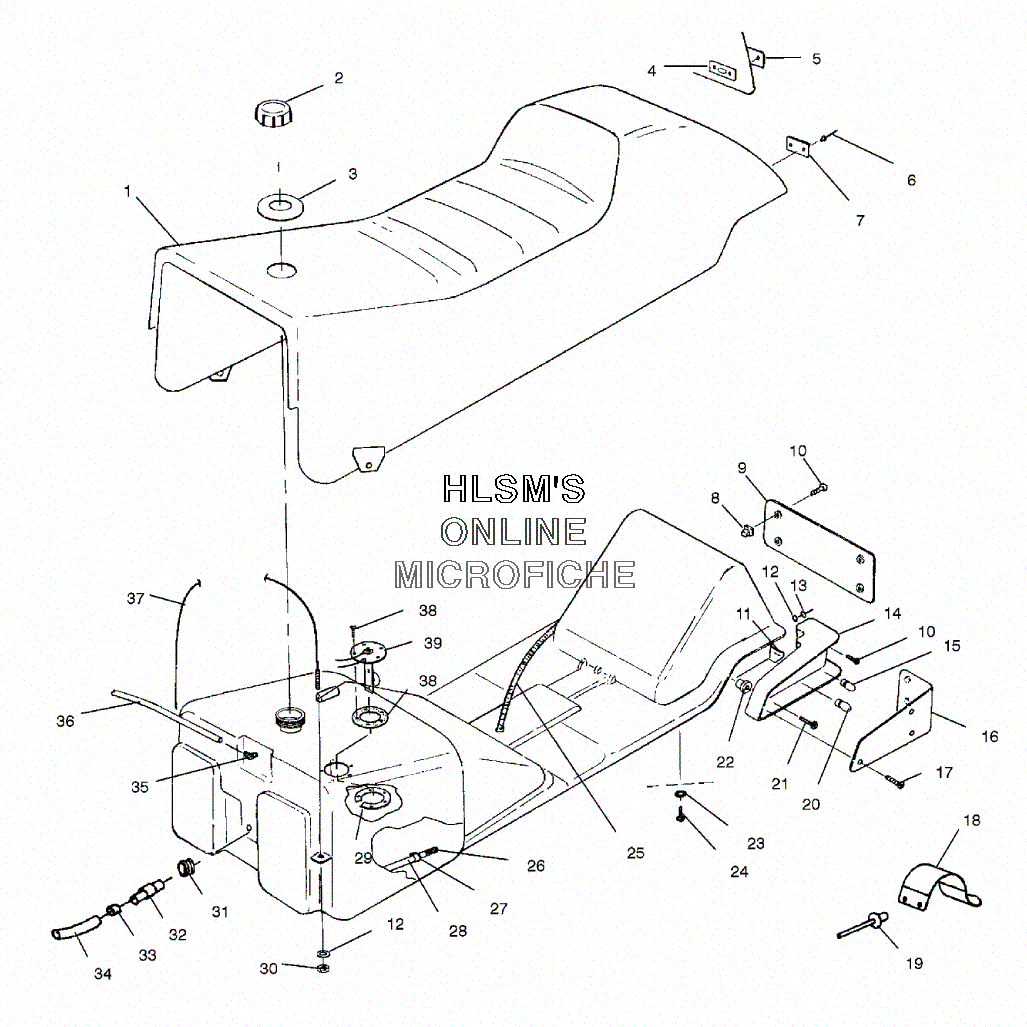

SEAT W/ GAS TANK ASSEMBLY для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска`
-
№АртикулНазвание
-
12682601 CUSHION, SEAT 121 SCLPT/CLP (INCL. 4-22, 25-32, 35, 37)CUSHION, SEAT 121 SCLPT/CLP (INCL. 4-22, 25-32, 35, 37)
-
12682602 COVER, ASSY SEATCOVER, ASSY SEAT
-
22511226 CAP, FUELTANK, W/GASKETCAP, FUELTANK, W/GASKET
-
25810513 GASKET, GAS CAPGASKET, GAS CAP
-
35410842 GROMMET, FUELTANKGROMMET, FUELTANK
-
47080550 GROMMET, RELATCH, 1'' (BOTTOM)GROMMET, RELATCH, 1'' (BOTTOM)
-
57080549 GROMMET, RELATCH, 1'' (TOP)GROMMET, RELATCH, 1'' (TOP)
-
67661058 BRACKETBRACKET
-
77080548 TWISTLOCK, RELATCH, 1'', W/HOLETWISTLOCK, RELATCH, 1'', W/HOLE
-
87546908 NUTNUT
-
95432008 REFLECTOR, CTR, SEATREFLECTOR, CTR, SEAT
-
107522004 SCREW, SELF TAPSCREW, SELF TAP
-
11
-
127555746 BURR, RIVETBURR, RIVET
-
137661046 RIVET-POPRIVET-POP
-
145432002 HOUSING, LENS (LEFT)HOUSING, LENS (LEFT)
-
145432003 HOUSING, LENS (RIGHT)HOUSING, LENS (RIGHT)
-
154030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
165432031 LENS (LEFT)LENS (LEFT)
-
165432032 LENS (RIGHT)LENS (RIGHT)
-
177512054 SCREWSCREW
-
185243185 RETAINER-CLIP, TOOL POUCHRETAINER-CLIP, TOOL POUCH
-
197621472 RIVETRIVET
-
204032084 BULB (TAILLIGHT)BULB (TAILLIGHT)
-
217511954 SCREWSCREW
-
227541901 NUT, WELLNUT, WELL
-
237558302 WASHER, WROUGHTWASHER, WROUGHT
-
247512242 SCREWSCREW
-
252460541 HARNESS, TAILLIGHT 121 (SCULPT)HARNESS, TAILLIGHT 121 (SCULPT)
-
267052215 PICK-UP, FUEL, W/MESHPICK-UP, FUEL, W/MESH
-
277080768 RING, COMPRESSIONRING, COMPRESSION
-
288350020-600 FUEL, LINE ETHER VLT 3/8''FUEL, LINE ETHER VLT 3/8''
-
295244067 FLANGE, FUEL TANK MOUNTINGFLANGE, FUEL TANK MOUNTING
-
307541925 NUTNUT
-
315432981 GROMMETGROMMET
-
327052214 FITTING, ST.THRM, 3/8 HOSEFITTING, ST.THRM, 3/8 HOSE
-
337080544 CLAMP, HOSECLAMP, HOSE
-
348350016-600 FUEL, LINE, ETHER 3/8' (RED)FUEL, LINE, ETHER 3/8' (RED)
-
357052095 FITTING, 90 DEG 1/8FITTING, 90 DEG 1/8
-
368450061-600 FUELLINE, 3MMX7MMFUELLINE, 3MMX7MM
-
377080559 CABLE, TANK, RETENTIONCABLE, TANK, RETENTION
-
382410012 HDWE. PKG SEND. UNITHDWE. PKG SEND. UNIT
-
393280306 SENDER, FUEL LEVELSENDER, FUEL LEVEL
